9.2 Preparing the Application Code to Run

  1. Launch the IAR5.5 Embedded Workbench IDE, then click on File → Open → Workspace.
  2. Select “emeters.eww” when prompted for Workspace to be opened.
    GUID-711646EF-C78C-48E7-A9CE-8BCE495D4325-low.gifFigure 9-1 Opening Workspace
  3. Select the emeter-app-i2041 project tab at the bottom of the Workspace window.
  4. Check the project options by right clicking on the project name and selecting Options… from the pop-up menu as shown in Figure 9-2.
    GUID-4134801B-4A0A-47BB-995E-D6067E044A39-low.gifFigure 9-2 Project Tab
  5. When the options appears, select C/C++ compiler on the left hand column and then select the Optimizations tab on the right hand side and check that the optimization setting is as shown in Figure 9-3).
    GUID-410124B2-F9E1-4573-84AF-22B8DDF6F6B8-low.gifFigure 9-3 Optimization Options

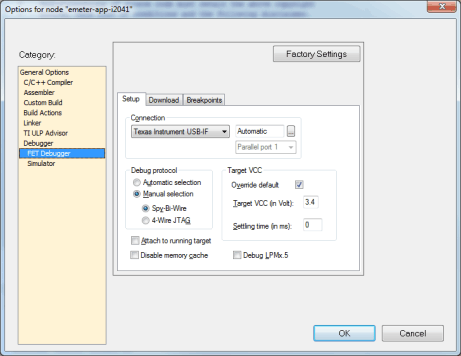

  6. Select FET Debugger on the left hand column of the select Setup tab. The EVM uses Spy-Bi-Wire for its code downloading and debugging. Check to make sure the options are as shown in Figure 9-4.
    GUID-06EE47F3-403D-4872-B819-743F262BEA0E-low.gifFigure 9-4 Debugger Options

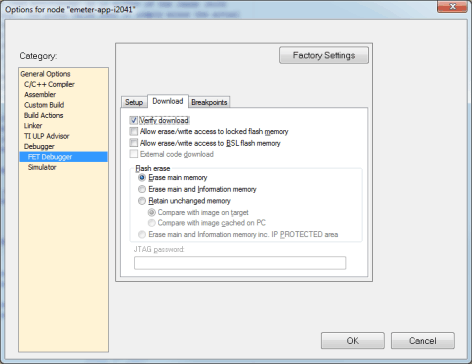

  7. Select the Download tab. Under Flash erase, do not choose Erase main memory and Information memory; this option erases both sets of data and cannot be recovered. Instead, choose Erase main memory as the download option to preserve these factory parameters: system clock calibration, ADC calibration, and internal reference calibration (Figure 9-5). However, metrology calibration stored in the main memory, such as VGAIN, IGAIN, PGAIN, and so on, are always erased after downloading. Select Erase main memory as the option for download to preserve the factory parameters.
    GUID-179EB650-D035-4132-A16F-CBBEF472F116-low.gifFigure 9-5 Download Options
  8. Click OK after all of the changes are made.

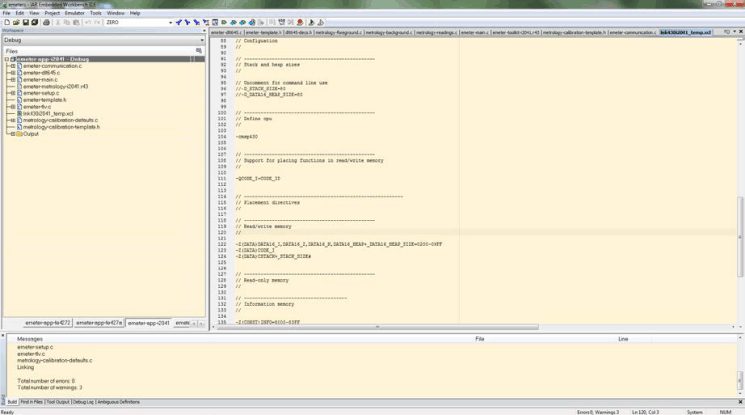

  9. Rebuild the project by right clicking on the project and selecting Rebuild All from the pop-up menu (see Figure 9-6). Three warnings are reported during rebuilding (see Figure 9-6), it is safe to ignore the three warnings. To open the project workspace, modify the code, compile, and download the code; IAR Embedded Workbench® 5.5 must be installed with a valid license. If a valid license is not available, the object code can still be downloaded. For downloading procedures, see Section 9.3.
    GUID-58115C1A-C623-4E59-9799-F00F9B8D7418-low.gifFigure 9-6 Compiling the Application
    GUID-9090B7A0-C030-4CB5-804E-25BE3DE84025-low.gifFigure 9-7 Warnings

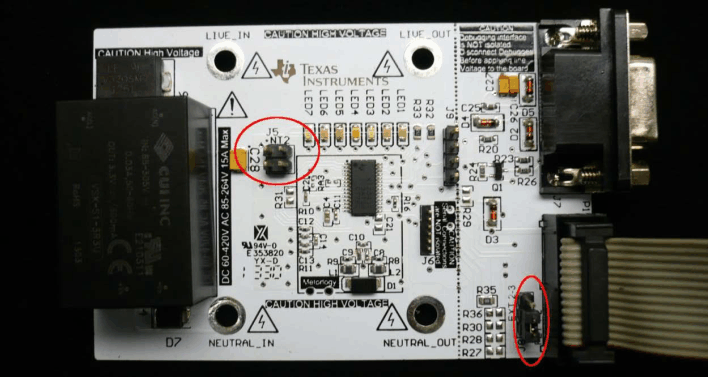

  10. Make sure the jumper on J8 is short properly. Connect the 14 pin connector P1 to MSP-FET430UIF by a flat cable as shown in Figure 9-8.
    WARNING:

    The debugging interface is NOT ISOLATED; make sure proper isolation is in place between the EVM and the PC using for debugging with AC or DC high voltage connected.

    Connection to debugging interface is optional for the operation of the EVM. The EVM can operate standalone without debugger connected.

    GUID-6B7DC1F3-F6D6-4D81-9914-5EB07510E1B7-low.gifFigure 9-8 Connecting EVM and FET
  11. Click the Download and Debug button to begin download and debugging as shown in Figure 9-9.
    GUID-5162FFE1-85EE-4D5B-BA9A-24943ACBAC99-low.gifFigure 9-9 Code Downloading
  12. After downloading is completed and successful, a screen like that shown in Figure 9-10 will appear. Click Go to start application running.
    GUID-9F9EE0EA-89F0-444A-87B5-E6D90F2FED99-low.gifFigure 9-10 Debugger Screen
    GUID-7F89B40F-B241-4ED5-A2BE-5D92CCEAB424-low.pngFigure 9-11 EVM running
