B.2 MSP-TS430PW14

GUID-EC0E757A-C197-459A-9BD7-28134DF42621-low.gif Figure 4-3 MSP-TS430PW14 Target Socket Module, Schematic

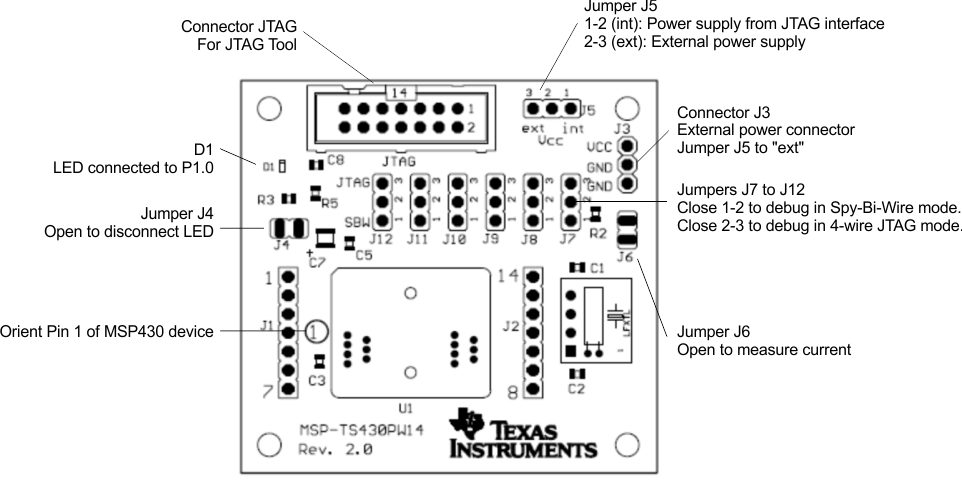

GUID-02F29B26-613B-479A-9C20-CE936987D76C-low.gif Figure 4-4 MSP-TS430PW14 Target Socket Module, PCB
Table 4-2 MSP-TS430PW14 Bill of Materials
PositionRef DesNo. per BoardDescriptionDigi-Key Part No.Comment
1C1, C2012pF, SMD0805DNP
2C7110uF, 10V, Tantal Size B511-1463-2-ND
3C3, C51100nF, SMD0805478-3351-2-NDDNP: C3
4C802.2nF, SMD0805DNP
5D11green LED, SMD0603475-1056-2-ND
6J1, J207-pin header, THDNP: Headers and receptacles enclosed with kit. Keep vias free of solder
SAM1029-07-ND: Header
SAM1213-07-ND: Receptacle
7J3, J5, J7, J8, J9, J10, J11, J1283-pin header, male, THSAM1035-03-NDPlace jumpers on headers J5, J7, J8, J9, J10, J11, J12; Pos 1-2
8J4, J622-pin header, male, THSAM1035-02-NDPlace jumper on header
99Jumper15-38-1024-NDPlace on: J5, J7-J12; Pos 1-2
10JTAG114-pin connector, male, THHRP14H-ND
12Q10CrystalMicro Crystal MS1V-T1K 32.768kHz, C(Load) = 12.5pFDNP: keep vias free of solder
13R2, R32330 Ω, SMD0805541-330ATR-ND
15R5147k Ω, SMD0805541-47000ATR-ND
16U11Socket: OTS-14-0.65-01Manuf.: Enplas
17PCB156 x 53 mm2 layers
18Adhesive plastic feet4Approximately 6mm width, 2mm heightFor example, 3M Bumpons Part No. SJ-5302Apply to corners at bottom side
19MSP4302MSP430F2013IPWDNP: enclosed with kit, supplied by TI
