B.38 MSP-TS430PZ100D

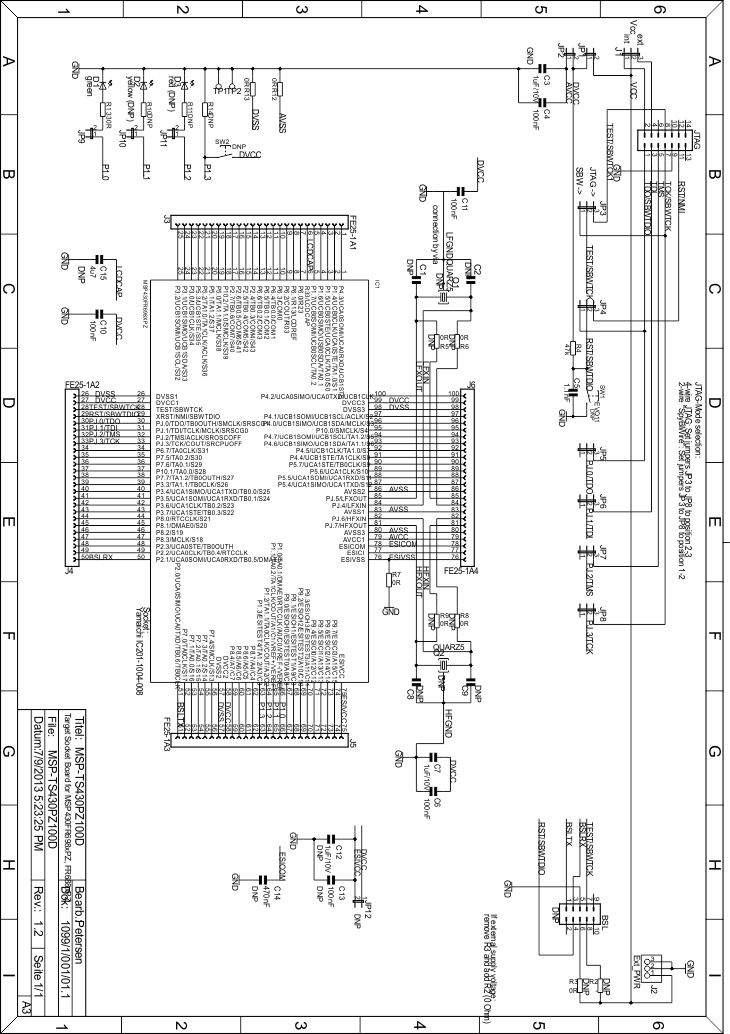

GUID-10E70334-51C1-47F9-A021-489BEDC0265F-low.gifFigure 4-76 MSP-TS430PZ100D Target Socket Module, Schematic
GUID-73BB1D9B-B308-45F8-9CC8-0B46CF58E5EB-low.gifFigure 4-77 MSP-TS430PZ100D Target Socket Module, PCB
Table 4-39 MSP-TS430PZ100D Bill of Materials
Pos.Ref DesNumber Per BoardDescriptionDigi-Key Part No.Comment
1PCB190.0 x 100.0 mmMSP-TS430PZ100D Rev 1.22 layers, white solder mask
2JP1, JP2, JP932-pin header, male, THSAM1035-02-NDplace jumper on header
3JP10, JP11, JP1232-pin header, male, THSAM1035-02-NDDNP, keep pads free of solder
4J113-pin header, male, THSAM1035-03-NDplace jumpers on pins 1-2
5JP3, JP4, JP5, JP6, JP7, JP863-pin header, male, THSAM1035-03-NDplace jumpers on pins 2-3
6J213-pin header, male, THSAM1035-03-ND
7R2, R3, R5, R6, R8, R960R, 0805541-0.0ATR-NDDNP
8R7, R12, R1330R, 0805541-0.0ATR-ND
9C511.1nF, CSMD0805490-1623-2-ND
10C3, C721uF/10V, CSMD0805490-1702-2-ND
11C1211uF/10V, CSMD0805490-1702-2-NDDNP
12R4147k, 0805541-47KATR-ND
13C4, C6, C10, C114100nF, CSMD0805490-1666-1-ND
14C131100nF, CSMD0805490-1666-1-NDDNP
15C1514u7, CSMD0805445-1370-1-NDDNP
16R11330R, 0805541-330ATR-ND
17C141470nF, CSMD0805587-1290-2-NDDNP
18R10, R112330R, 0805541-330ATR-NDDNP
19R14147k, 0805541-47KATR-NDDNP
20C1, C2, C8, C94DNP, CSMD0805DNP
21SW21EVQ-11L05RP8079STB-NDDNP
22SW11EVQ-11L05RP8079STB-NDDNP
23J3, J4, J5, J6425-pin header, THSAM1029-25-NDDNP: headers and receptacles enclosed with kit. Keep vias free of solder.
: Header
24J3, J4, J5, J6425-pin receptacle, THSAM1213-25-NDDNP: headers and receptacles enclosed with kit. Keep vias free of solder.
: Receptacle
25TP1, TP22TestpointDNP, keep pads free of solder
26BSL110-pin connector, male, THHRP10H-NDDNP, keep vias free of solder
27JTAG114-pin connector, male, THHRP14H-ND
28IC11Socket: IC201-1004-008Manuf. Yamaichi
29IC11MSP430FR6989DNP: enclosed with kit. Is supplied by TI
30Q11DNP: MS3V-TR1 (32768kHz/20ppm/12,5pF)depends on applicationMicro Crystal, DNP, enclosed in kit, keep vias free of solder
31Q21DNP, Crystaldepends on applicationDNP, keep vias free of solder
32D11green LED, DIODE0805P516TR-ND
33D31red (DNP), DIODE0805DNP
34D21yellow (DNP), DIODE0805DNP
35Rubber stand off4Buerklin: 20H1724apply to corners at bottom side
