5.7 Typical Characteristics

data for temperatures less than –40°C and greater than 105°C are applicable for SE555 circuits only

NA555 NE555 SA555 SE555 Low-Level Output Voltage vs Low-Level Output Current

Figure 5-1 Low-Level Output Voltage
vs Low-Level Output Current
NA555 NE555 SA555 SE555 Low-Level Output Voltage vs Low-Level Output Current

Figure 5-3 Low-Level Output Voltage
vs Low-Level Output Current
NA555 NE555 SA555 SE555 Supply Current vs Supply Voltage

Figure 5-5 Supply Current
vs Supply Voltage
NA555 NE555 SA555 SE555 Normalized Output Pulse Duration (Monostable Operation) vs Free-Air Temperature

Figure 5-7 Normalized Output Pulse Duration
(Monostable Operation)
vs
Free-Air Temperature
NA555 NE555 SA555 SE555 Low-Level Output Voltage vs Low-Level Output Current

Figure 5-2 Low-Level Output Voltage
vs Low-Level Output Current
NA555 NE555 SA555 SE555 Drop Between Supply Voltage and Output vs High-Level Output Current

Figure 5-4 Drop Between Supply Voltage and Output
vs High-Level Output Current
NA555 NE555 SA555 SE555 Normalized Output Pulse Duration (Monostable Operation) vs Supply Voltage

Figure 5-6 Normalized Output Pulse Duration
(Monostable Operation)
vs Supply Voltage

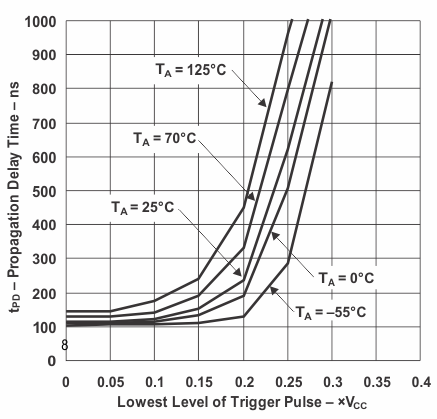

NA555 NE555 SA555 SE555 Propagation Delay Time vs Lowest Voltage Level of Trigger Pulse

Figure 5-8 Propagation Delay Time
vs
Lowest Voltage Level of Trigger Pulse
