7.2 Functional Block Diagram

ISO7740-Q1 ISO7741-Q1 ISO7742-Q1 Conceptual Block Diagram of a Digital Capacitive IsolatorFigure 7-1 Conceptual Block Diagram of a Digital Capacitive Isolator

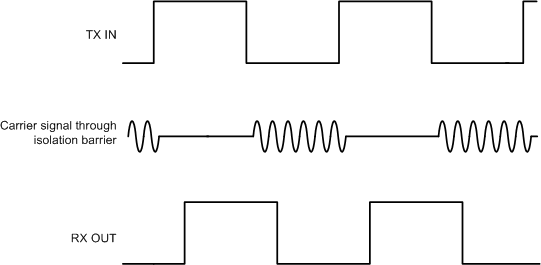

Figure 7-2 shows a conceptual detail of how the ON-OFF keying scheme works.

ISO7740-Q1 ISO7741-Q1 ISO7742-Q1 On-Off Keying (OOK) Based Modulation SchemeFigure 7-2 On-Off Keying (OOK) Based Modulation Scheme
