4.7 Output Voltage Ripple

The TPS562207EVM output voltage ripple is shown in Figure 4-7 and Figure 4-8. The output currents are as indicated.

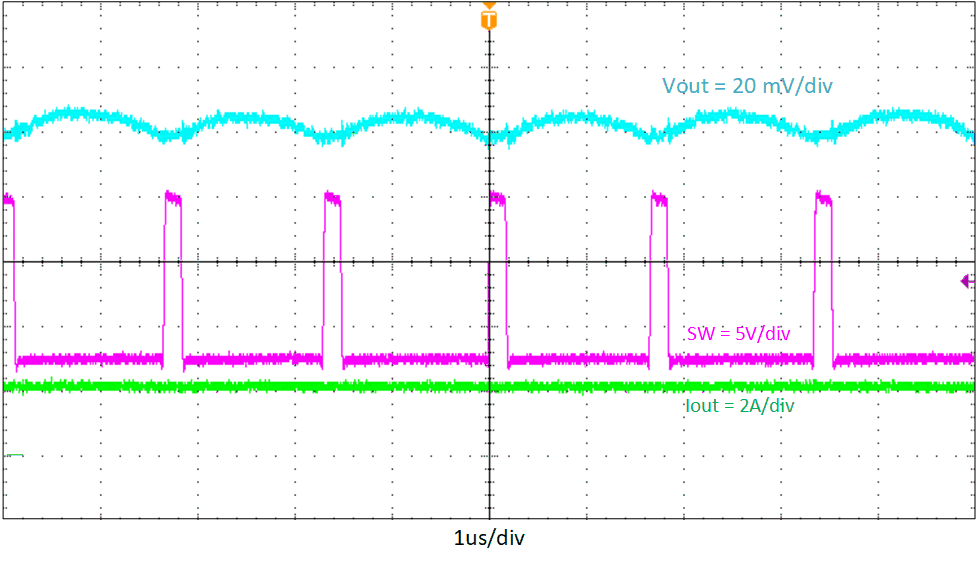

GUID-361CFBEE-F664-4DE2-86CD-3D680E401443-low.gifFigure 4-7 TPS562207EVM Output Voltage Ripple, IOUT = 2 A
GUID-EE4D41EB-AFBC-4AE8-8D0C-B2BFF7D8EA96-low.gifFigure 4-8 TPS562207EVM Output Voltage Ripple, IOUT = 200 mA
