4.7 Output Voltage Ripple

The TPS563201EVM-715 output voltage ripple is shown in Figure 4-6, Figure 4-7, and Figure 4-8. The output currents are as indicated.

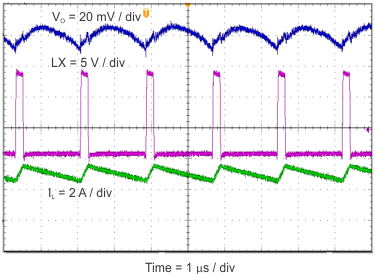

GUID-ABFEE137-151F-4CF7-819C-4697CA25B71B-low.gifFigure 4-6 Output Voltage Ripple, IOUT = 3 A
GUID-0FA4A54B-4FB6-4630-8093-020C78404F26-low.gifFigure 4-8 Output Voltage Ripple, IOUT = 10 mA
GUID-5D8C22DE-AECF-4532-800E-9A67B9D00D32-low.gifFigure 4-7 Output Voltage Ripple, IOUT = 250 mA
