8 PCB Layout

Figure 8-1 through Figure 8-6 display the EVM PCB layouts.

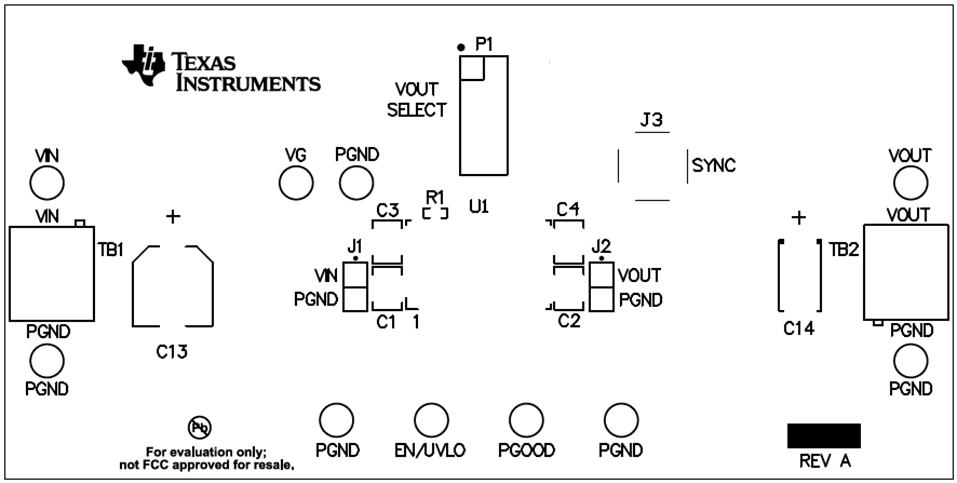

GUID-4C193D31-28B2-4AAB-9441-E66D092CA3B7-low.gifFigure 8-1 Topside Component Layout
GUID-AB00506A-F375-4552-B77D-48E1B331EC7D-low.gifFigure 8-2 Bottom-Side Component Layout
GUID-00F1D1DC-4BC6-4688-9335-582DA6AE9557-low.gifFigure 8-3 Top Copper
GUID-EFAAB741-9552-4AFF-A846-91D7619A178A-low.gifFigure 8-4 Layer 2 Copper

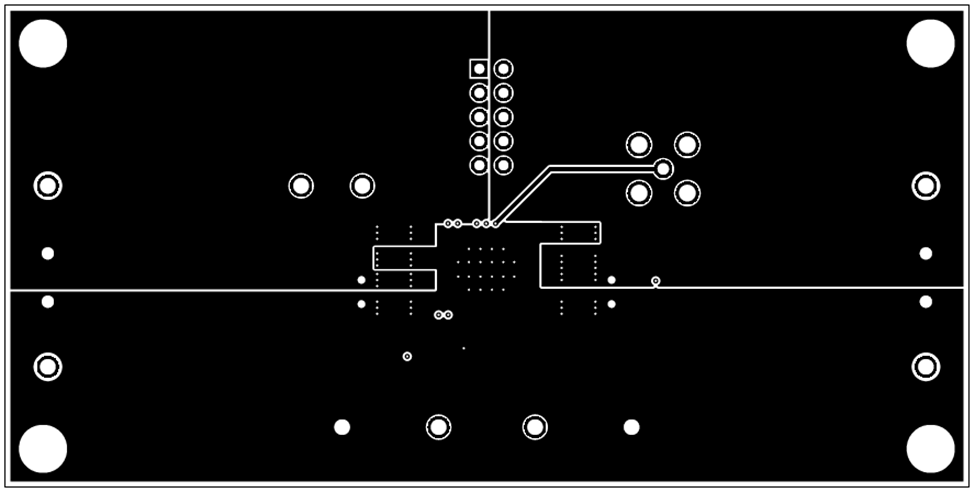

GUID-B0C609A4-26F8-423C-8AD5-B209DBB9D286-low.gifFigure 8-5 Layer 3 Copper

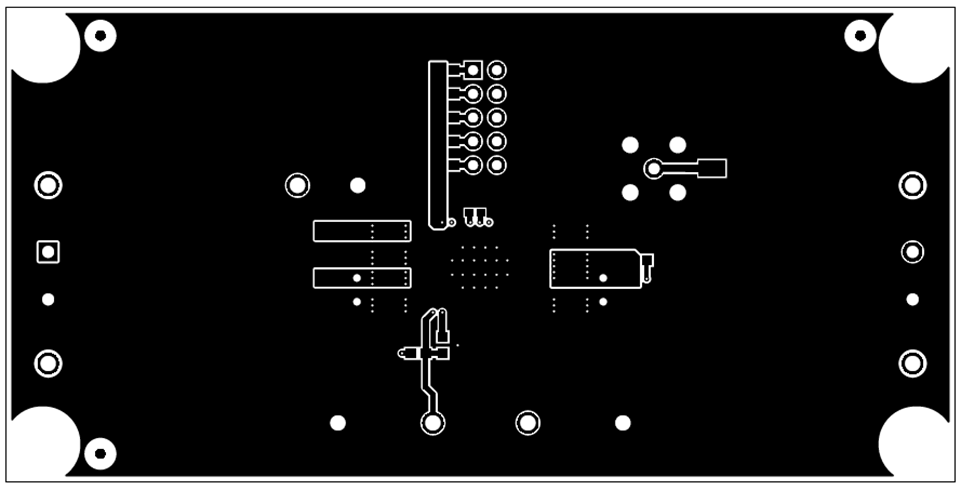

GUID-0B6FAF9F-77DB-4895-9F1E-F9185701EAEE-low.gifFigure 8-6 Bottom Copper
