4.6 Load Transient Response

The TPS565201EVM-858 response to load transient is shown in Figure 4-5. The current steps and slew rates are indicated in the figures. Total peak-to-peak voltage variation is as shown.

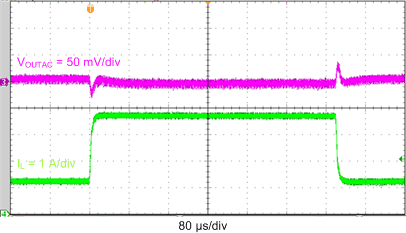

GUID-30CD1AC0-D8D1-42D6-8840-FB3AB02ED308-low.gifFigure 4-5 Load Transient Response, 1.25 A to 3.75 A
