12 Typical Test Setup

Figure 12-1 and Figure 12-2 illustrate the typical test setups used to measure and evaluate DS90UB96X-Q1.

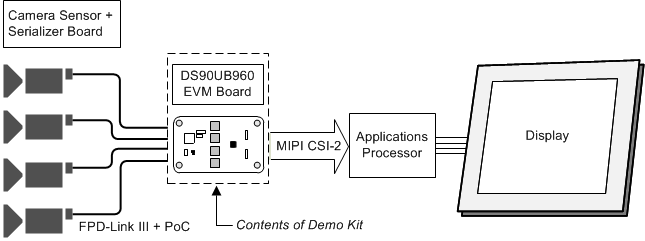

GUID-BBDCD8C4-0F1D-446F-AA57-761362891D5C-low.gif Figure 12-1 Typical Test Setup for Application

The picture below shows a typical test set up using a video generator and logic analyzer.

GUID-19083FB2-EFC1-42CE-9102-73976D64BDF0-low.gif Figure 12-2 Typical Test Setup for Evaluation
