Bootstrap Options

All straps are only two-level straps in DP83869 except PHYADD straps. EVM support one pullup and one pulldown resistor pad on RX_D0 and RX_D2 for PHY address straps. There is only one pullup resistor on all other strap pins with a jumper option to disconnect.

Table 2-2 4 Level Straps
STRAP VALUEMODE 0MODE 1MODE 2MODE 3
Resistor PU (kΩ)Open105.762.49
Resistor PD (kΩ)Open2.492.49Open
Table 2-3 2 Level Straps
STRAP VALUEMODE 0MODE 1
Resistor PU (kΩ)Open2.49
Resistor PD (kΩ)2.49Open

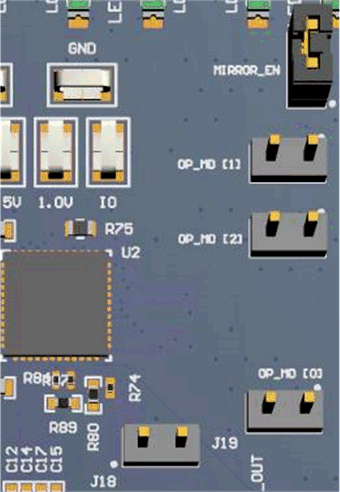

DP83869EVM EVM Strap JumpersFigure 2-1 EVM Strap Jumpers
