6.12.3.10 MII Transmit Switching Characteristics

NO. PARAMETER DESCRIPTION MIN MAX UNIT
1 td(TX_CLK-TXD) Delay time, miin_txclk to transmit selected signals valid 0 25 ns
td(TX_CLK-TX_EN)
td(TX_CLK-TX_ER)

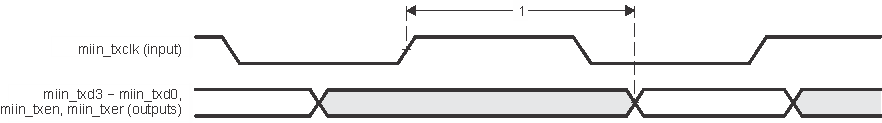

AWR2943 AWR2944 AWR2944LC MAC Transmit Interface Timing, MIIn operation Figure 6-16 MAC Transmit Interface Timing, MIIn operation
