7.12.3.13 MII Receive Timing Requirements

PARAMETERDESCRIPTIONMINMAXUNIT
tsu(RXD-RX_CLK)Setup time, receive selected signals valid before miin_rxclk8ns
tsu(RX_DV-RX_CLK)
tsu(RX_ER-RX_CLK)
th(RX_CLK-RXD)Hold time, receive selected signals valid after miin_rxclk8ns
th(RX_CLK-RX_DV)
th(RX_CLK-RX_ER)

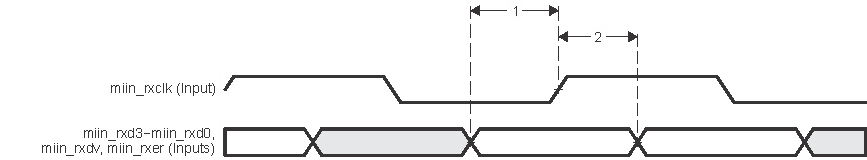

AWR2544 MAC Receive Interface Timing, MIIn operationFigure 7-20 MAC Receive Interface Timing, MIIn operation
