1 Features

  • Integrated P-Channel Load Switch
  • Low Input Voltage: 1.1 V to 3.6 V
  • ON-Resistance (Typical Values):
    • RON = 44 mΩ at VIN = 3.6 V
    • RON = 50 mΩ at VIN = 2.5 V
    • RON = 58 mΩ at VIN = 1.8 V
    • RON = 83 mΩ at VIN = 1.2 V
  • 1-A Maximum Continuous Switch Current
  • Maximum Quiescent Current (IQ) < 1 µA
  • Maximum Shutdown Current (ISD) < 1 µA
  • Low Control Input Thresholds Enable Use of 1.2-V, 1.8-V, 2.5-V, and 3.3-V Logic
  • Controlled Slew-Rate to Avoid Inrush Currents
    • tR = 25 µs at VIN = 3.6 V
    • tR = 36 µs at VIN = 1.8 V
  • ESD Performance Tested Per JESD 22
    • 3000-V Human Body Model
      (A114-B, Class II)
    • 1000-V Charged-Device Model (C101)
  • Ultra-Small 4-Terminal Wafer-Chip-Scale Package (WCSP)
    • Nominal Dimensions Shown – See Addendum for Details
    • 0.9 mm × 0.9 mm, 0.5-mm Pitch, 0.5-mm Height (YZT)

2 Applications

  • Battery-Powered Equipment
  • Portable Industrial Equipment
  • Portable Medical Equipment
  • Portable Media Players
  • Point-of-Sale Terminal
  • GPS Devices
  • Digital Cameras
  • Portable Instrumentation
  • Smart Phones and Tablets

3 Description

The TPS22907 is a small, low RON load switch with controlled turnon. The device contains a P-channel MOSFET that operates over an input voltage range of 1.1 V to 3.6 V. The switch is controlled by an on and off input (ON), which can interface directly with low-voltage control signals.

The TPS22907 is available in a space-saving 4-terminal WCSP with 0.5-mm pitch (YZT). The device is characterized for operation over the free-air temperature range of –40°C to 85°C.

Device Information(1)

PART NUMBER PACKAGE BODY SIZE (NOM)
TPS22907 DSBGA (4) 0.90 mm × 0.90 mm
  1. For all available packages, see the orderable addendum at the end of the data sheet.

Typical Application

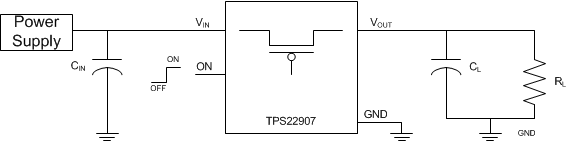

TPS22907 TypicalApplication.gif
