Parameter Measurement Information

Phase relationships between waveforms were chosen arbitrarily. All input pulses are supplied by generators having the following characteristics: PRR ≤ 1 MHz, ZO = 50 Ω, tt < 6 ns.

For clock inputs, fmax is measured when the input duty cycle is 50%.

The outputs are measured one at a time with one input transition per measurement.

(1) CL includes probe and test-fixture capacitance.
Figure 6-1 Load Circuit for Push-Pull Outputs
(1) The greater between tPLH and tPHL is the same as tpd.

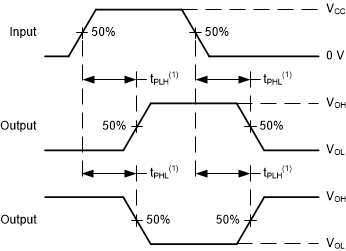

Figure 6-2 Voltage Waveforms, Propagation Delays for Standard CMOS Inputs
(1) The greater between tr and tf is the same as tt.

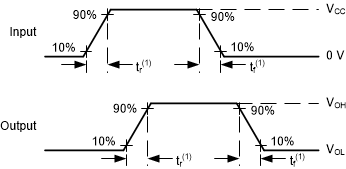

Figure 6-3 Voltage Waveforms, Input and Output Transition Times for Standard CMOS Inputs
(1) The greater between tPLH and tPHL is the same as tpd.
Figure 6-4 Voltage Waveforms, Propagation Delays for TTL-Compatible Inputs
