5 Specifications

5.1 Electrical Characteristics

(TA = 25°C unless otherwise stated)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
STATIC CHARACTERISTICS
BVDSS Drain-to-Source Voltage VGS = 0 V, ID = 250 μA 40 V
IDSS Drain-to-Source Leakage Current VGS = 0 V, VDS = 32 V 1 μA
IGSS Gate-to-Source Leakage Current VDS = 0 V, VGS = 20 V 100 nA
VGS(th) Gate-to-Source Threshold Voltage VDS = VGS, ID = 250 μA 1.4 1.8 2.2 V
RDS(on) Drain-to-Source On Resistance VGS = 4.5 V, ID = 32 A 1.3 1.7 mΩ
VGS = 10 V, ID = 32 A 1 1.2 mΩ
gfs Transconductance VDS = 4 V, ID = 32 A 180 S
DYNAMIC CHARACTERISTICS
Ciss Input Capacitance VGS = 0 V, VDS = 20 V, ƒ = 1 MHz 10700 13900 pF
Coss Output Capacitance 821 1070 pF
Crss Reverse Transfer Capacitance 272 354 pF
RG Series Gate Resistance 0.8 1.6 Ω
Qg Gate Charge Total (4.5 V) VDS = 20 V, ID = 32 A 70 91 nC
Qg Gate Charge Total (10 V) 150 195 nC
Qgd Gate Charge Gate-to-Drain 17 nC
Qgs Gate Charge Gate-to-Source 29 nC
Qg(th) Gate Charge at Vth 18 nC
Qoss Output Charge VDS = 20 V, VGS = 0 V 39 nC
td(on) Turn On Delay Time VDS = 20 V, VGS = 10 V,
IDS = 32 A, RG = 0 Ω		 9 ns
tr Rise Time 19 ns
td(off) Turn Off Delay Time 57 ns
tf Fall Time 11 ns
DIODE CHARACTERISTICS
VSD Diode Forward Voltage ISD = 32 A, VGS = 0 V 0.8 1 V
Qrr Reverse Recovery Charge VDS= 20 V, IF = 32 A,
di/dt = 300 A/μs		 40 nC
trr Reverse Recovery Time 23 ns

5.2 Thermal Information

(TA = 25°C unless otherwise stated)
THERMAL METRIC MIN TYP MAX UNIT
RθJC Junction-to-Case Thermal Resistance(1) 0.8 °C/W
RθJA Junction-to-Ambient Thermal Resistance (1)(2) 50
(1) RθJC is determined with the device mounted on a 1-inch2 (6.45-cm2), 2-oz. (0.071-mm thick) Cu pad on a 1.5-inches × 1.5-inches (3.81-cm × 3.81-cm), 0.06-inch (1.52-mm) thick FR4 PCB. RθJC is specified by design, whereas RθJA is determined by the user’s board design.
(2) Device mounted on FR4 material with 1-inch2 (6.45-cm2), 2-oz. (0.071-mm thick) Cu.

CSD18509Q5B M0137-01_LPS198.gif
Max RθJA = 50°C/W when mounted on 1 inch2 (6.45 cm2) of
2-oz. (0.071-mm thick) Cu.
CSD18509Q5B M0137-02_LPS198.gif
Max RθJA = 125°C/W when mounted on a minimum pad area of 2-oz. (0.071-mm thick) Cu.

5.3 Typical MOSFET Characteristics

(TA = 25°C unless otherwise stated)
CSD18509Q5B graph01_SLPS488.png

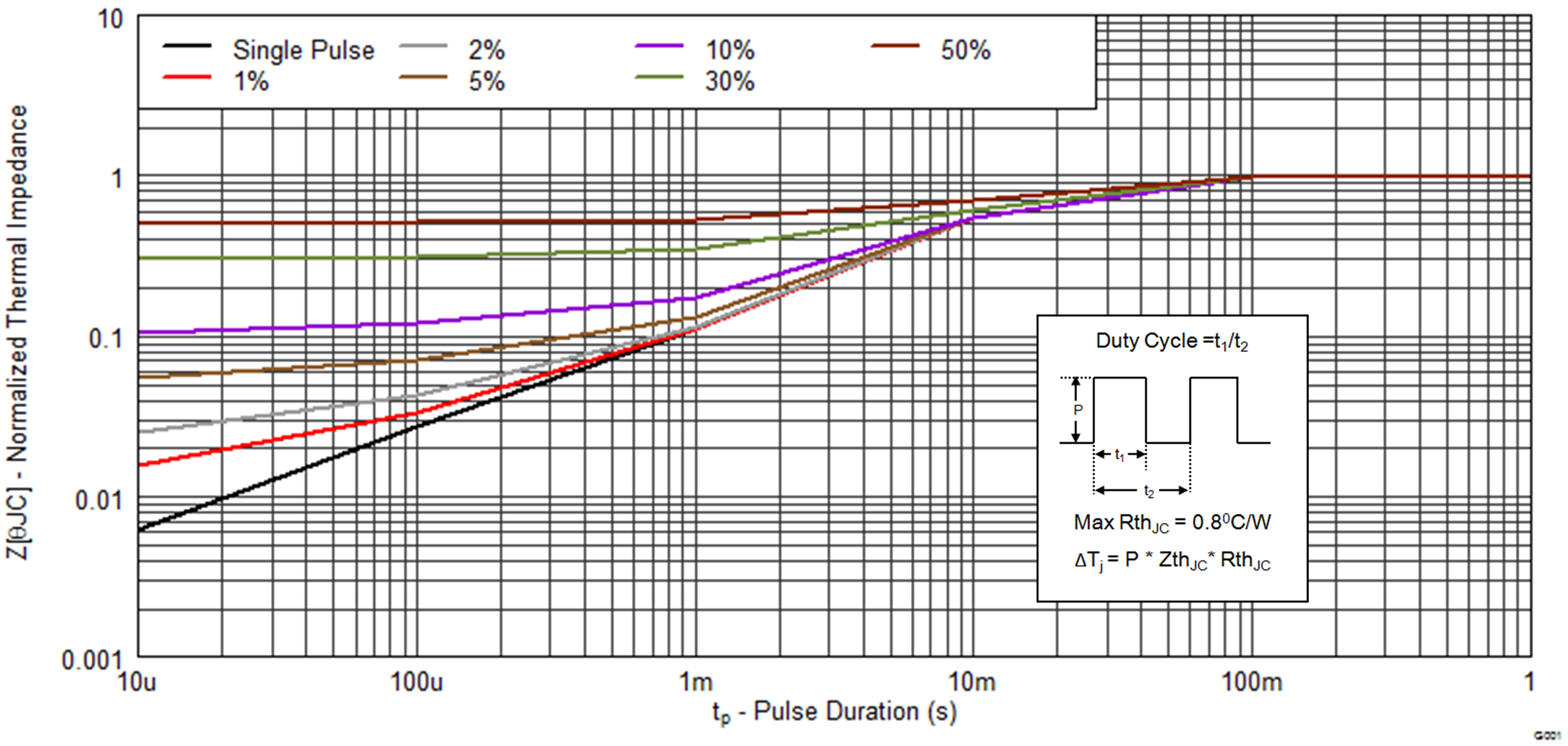

Figure 1. Transient Thermal Impedance
CSD18509Q5B graph02_SLPS476.png
Figure 2. Saturation Characteristics
CSD18509Q5B graph04_SLPS476.png
ID = 32 A VDS = 20 V

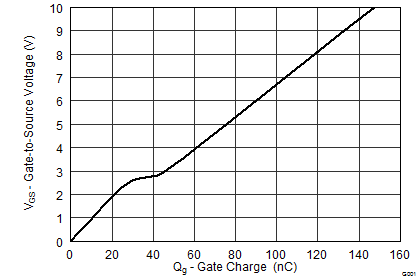

Figure 4. Gate Charge
CSD18509Q5B graph06_SLPS476.png
ID = 250 µA
Figure 6. Threshold Voltage vs Temperature
CSD18509Q5B graph08_SLPS476.png
ID = 32 A
Figure 8. Normalized On-State Resistance vs Temperature
CSD18509Q5B graph10_SLPS476.png
Single Pulse, Max RθJC = 0.8°C/W
Figure 10. Maximum Safe Operating Area
CSD18509Q5B graph12_SLPS476.png
Figure 12. Maximum Drain Current vs Temperature
CSD18509Q5B graph03_SLPS476.png
VDS = 5 V
Figure 3. Transfer Characteristics
CSD18509Q5B graph05_SLPS476.png
Figure 5. Capacitance
CSD18509Q5B graph07_SLPS476.png
Figure 7. On-State Resistance vs Gate-to-Source Voltage
CSD18509Q5B graph09_SLPS476.png
Figure 9. Typical Diode Forward Voltage
CSD18509Q5B graph11_SLPS476.png
Figure 11. Single Pulse Unclamped Inductive Switching
