Description

This 80V, 7.6mΩ, TO-220 NexFET™ power MOSFET is designed to minimize losses in power conversion applications.

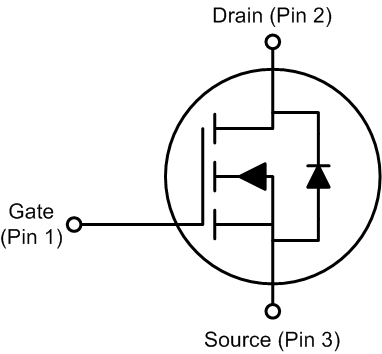

GUID-C7E4D8DB-5D30-4D65-AB16-328BE04936D0-low.gif GUID-9AA8AEEF-1B57-498B-9FAC-52FBC5DAB6A9-low.png
Product Summary
TA = 25°C TYPICAL VALUE UNIT
VDS Drain-to-Source Voltage 80 V
Qg Gate Charge Total (10V) 28 nC
Qgd Gate Charge Gate-to-Drain 5.4 nC
RDS(on) Drain-to-Source On-Resistance VGS = 6V 8.8 mΩ
VGS = 10V 7.6 mΩ
VGS(th) Threshold Voltage 2.8 V
Ordering Information(1)
DevicePackageMediaQtyShip
CSD19503KCSTO-220 Plastic PackageTube50Tube
For all available packages, see the orderable addendum at the end of the data sheet.
Absolute Maximum Ratings
TA = 25°CVALUEUNIT
VDSDrain-to-Source Voltage80V
VGSGate-to-Source Voltage±20V
IDContinuous Drain Current (Package limited)100A
Continuous Drain Current (Silicon limited), TC = 25°C94
Continuous Drain Current (Silicon limited), TC = 100°C66
IDMPulsed Drain Current (1)247A
PDPower Dissipation188W
TJ,
Tstg
Operating Junction and
Storage Temperature Range
–55 to 175°C
EASAvalanche Energy, single pulse
ID = 53A, L = 0.1mH, RG = 25Ω
140mJ
Max RθJC = 0.8°C/W, pulse duration ≤100μs, Duty cycle ≤1%

GUID-6989ED91-C203-4858-8BCF-6A29E4A63D05-low.png RDS(on) vs VGS

GUID-369FB41F-2EEE-457A-93D5-9692F0B976A9-low.png Gate Charge
