Layout Example

Figure 41 shows an example schematic and layout for the LFx98x 8-pin PDIP package.

LF198-N LF298 LF398-N LF198A-N LF398A-N soic_schematic_snosbi3.gifFigure 41. Schematic Example

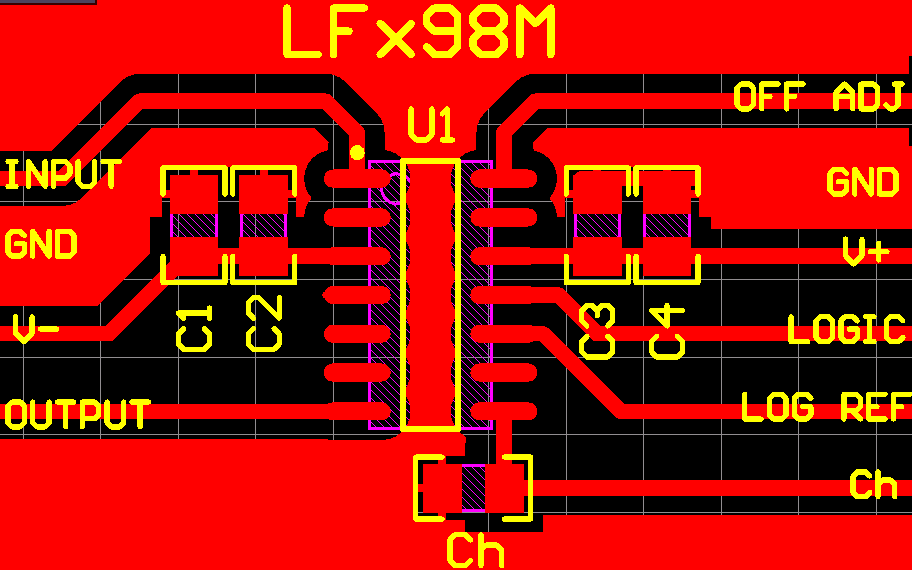

LF198-N LF298 LF398-N LF198A-N LF398A-N soic_layout_snosbi3.pngFigure 42. Layout Example
