9.2.2.3 Application Curves

LM5180 D011_snvsb06.gifFigure 39. Efficiency (Linear Scale)
LM5180 D012_snvsb06.gif
Total of VOUT1 and VOUT2
Figure 41. Load Regulation (Linear Scale)
LM5180 LM5180_design2_startup_waveform_nvsb06.gif
VIN stepped to 24 V 75 Ω and 40 Ω Loads
Figure 43. Start-Up Characteristic

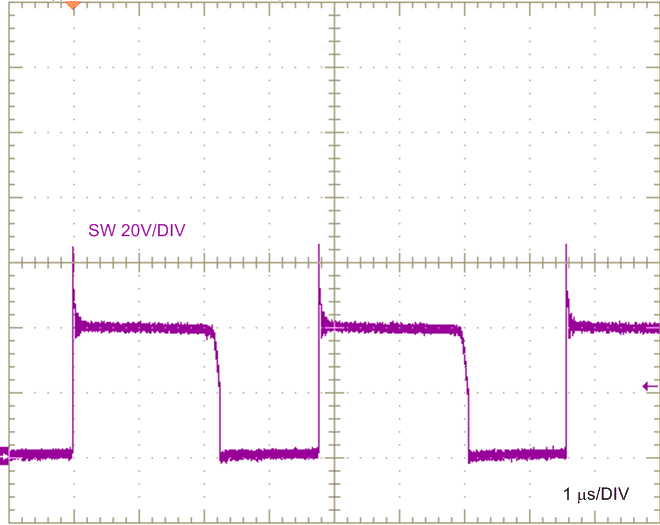

LM5180 LM5180_design2_SWnode24Vin_waveform_nvsb06.gif
VIN = 24 V
Figure 45. Switch Voltage, Full Load
LM5180 LM5180_design2_24V_VD_waveform_nvsb06.gif
VIN = 24 V
Figure 47. Flyback Diode Voltages, Full Load
LM5180 LM5180_design2_load1_transient_waveform_nvsb06.gif
VIN = 24 V IOUT1 = 200 mA
Figure 49. Output 1 Load Transient, 50 mA to 200 mA
LM5180 D010_snvsb06.gifFigure 40. Efficiency (Log Scale)
LM5180 D013_snvsb06.gif
Total of VOUT1 and VOUT2
Figure 42. Load Regulation (Log Scale)
LM5180 LM5180_design2_ENstartup_waveform_nvsb06.gif
VIN = 24 V 75 Ω and 40 Ω Loads
Figure 44. ENABLE ON Characteristic
LM5180 LM5180_design2_SWnode48Vin_waveform_nvsb06.gif
VIN = 48 V
Figure 46. Switch Voltage, Full Load
LM5180 LM5180_design2_48V_VD_waveform_nvsb06.gif
VIN = 48 V
Figure 48. Flyback Diode Voltages, Full Load
LM5180 LM5180_design2_load2_transient_waveform_nvsb06.gif
VIN = 24 V IOUT2 = 200 mA
Figure 50. Output 2 Load Transient, 50 mA to 200 mA
