7 Parameter Measurement Information

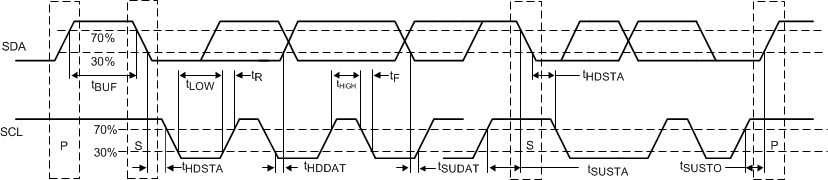

TUSB1064 Timing_Diagram_Definitions_SLLSEV7.gifFigure 11. I2C Timing Diagram Definitions
TUSB1064 USB3.1_to_4_Lane_DP_SLLSEV7.gifFigure 12. USB3.1 to 4-Lane DisplayPort in GPIO Mode
TUSB1064 Propagation_Delay_SLLSEV7.gifFigure 13. Propagation Delay
TUSB1064 Electrical_Idle_Mode_SLLSEV7.gifFigure 14. Electrical Idle Mode Exit and Entry Delay
TUSB1064 Output_Rise_and_Fall_Times_SLLSEV7.gifFigure 15. Output Rise and Fall Times
TUSB1064 AUX_and_SBU_Switch_SLLSEV7.gifFigure 16. AUX and SBU Switch ON and OFF Timing Diagram
