Specifications

Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
RVDD to GND –0.3 7 V
DVDD to GND –0.3 7 V
REFIN to REFM –0.3 RVDD + 0.3 V
REFM to GND –0.1 0.1 V
Analog Input (AINP, AINM) to GND –0.3 VREF + 0.3 V
Digital input (RST, CONVST, CS, SCLK, SDI) to GND –0.3 DVDD + 0.3 V
Digital output (READY, SDO-0, SDO-1, SDO-2, SDO-3) to GND –0.3 DVDD + 0.3 V
Analog Input (AINP, AINM) to RVDD and GND –130 130 mA
Operating free-air temperature, TA –40 125 °C
Storage temperature, Tstg –65 150 °C
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±2000 V
Charged-device model (CDM), per JEDEC specification JESD22-C101(2) ±500
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN NOM MAX UNIT
RVDD Analog supply voltage (RVDD to AGND) 3 5 5.5 V
DVDD Digital supply voltage (DVDD to AGND) Operating 1.65 3 5.5 V
Specified throughput 2.35 3 5.5
VREF Reference input voltage on REFIN 2.5 RVDD – 0.3 V
CREFBUF External ceramic decoupling capacitor 10 µF
RESR External series resistor 0 1.3 Ω
TA Specified free-air operating temperature –40 25 125 °C

Thermal Information

THERMAL METRIC(1) ADS892xB UNITS
RGE (VQFN)
24 PINS
RθJA Junction-to-ambient thermal resistance 31.9 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 29.9 °C/W
RθJB Junction-to-board thermal resistance 8.9 °C/W
ψJT Junction-to-top characterization parameter 0.3 °C/W
ψJB Junction-to-board characterization parameter 8.9 °C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance 2.0 °C/W
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report.

Electrical Characteristics

At RVDD = 5.5 V, DVDD = 1.65 V to 5.5 V, VREF = 5 V, and maximum throughput (unless otherwise noted).
Minimum and maximum values at TA = –40°C to +125°C; typical values at TA = 25°C.
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
ANALOG INPUT
FSR Full-scale input range
(AINP – AINM)
–VREF VREF V
VIN Absolute input voltage
(AINP and AINM to REFM)
0 VREF V
VCM Common-mode voltage
(AINP + AINM) / 2
(VREF / 2) – 0.1 VREF / 2 (VREF / 2) + 0.1 V
CIN Input capacitance Sample mode 60 pF
Hold mode 4 pF
VOLTAGE REFERENCE INPUT (REFIN)
IREF Reference input current VREF = 5 V 0.1 1 µA
CREF Internal capacitance 10 pF
REFERENCE BUFFER OUTPUT (REFBUFOUT)
V(RO) Reference buffer offset voltage
(VREFBUFOUT – VREF)
With EN_MARG = 0b(1), TA = 25°C(5) –250 250 µV
CREFBUF External ceramic decoupling capacitor 10 µF
RESR External series resistor 0 1.3 Ω
ISHRT Short-circuit current 30 mA
Margining range With EN_MARG = 1b(1) ±4.5 mV
Margining resolution With EN_MARG = 1b(1) 280 µV
DC ACCURACY(2) (CREFBUF = 10 µF, RESR = 0 Ω)
Resolution 16 Bits
NMC No missing codes 16 Bits
INL Integral nonlinearity(3) -0.5 ±0.3 0.5 LSB(4)
DNL Differential nonlinearity(3) -0.5 ±0.2 0.5 LSB(4)
E(IO) Input offset error(3) TA = 25°C(5) -3 ±0.5 3 LSB(4)
TA = –40°C to +125°C(5) -5 ±3 5
dVOS/dT Input offset thermal drift(5) 1 μV/°C
GE Gain error(3) EN_MARG = 0b(1)(6) -0.03 ±0.005 0.03 %FSR
dGE/dT Gain error thermal drift EN_MARG = 0b(1)(6) 3.6 ppm/°C
TNS Transition noise 0.5 LSB(4)
First output code deviation for
burst-mode data acquisition
See Reference Buffer Module –3 3 TNS
CMRR Common-mode rejection ratio dc to 20 kHz 80 dB
SAMPLING DYNAMICS
Aperture delay 4 ns
tj-rms Aperture jitter 2 ps RMS
f3-DB(small) Small-signal bandwidth 23 MHz
AC ACCURACY(2)(7) (CREFBUF = 10 µF, RESR = 0 Ω)
SINAD Signal-to-noise + distortion fIN = 2 kHz 95.7 95.9 dB
SNR Signal-to-noise ratio fIN = 2 kHz 96 96.8 dB
fIN = 100 kHz 95
THD Total harmonic distortion fIN = 2 kHz –125 dB
fIN = 100 kHz –110
SFDR Spurious-free dynamic range fIN = 2 kHz 125 dB
LDO OUTPUT (DECAP)
VLDO LDO output voltage
(DECAP pins)
2.85 V
CLDO External ceramic capacitor on DECAP pins 1 µF
tPU_LDO LDO power-up time CLDO = 1 µF, RVDD > VLDO 1 ms
ISHRT-LDO Short-circuit current 100 mA
DIGITAL INPUTS
VIH High-level input voltage 1.65 V < DVDD < 2.3 V 0.8 DVDD DVDD + 0.3 V
2.3 V < DVDD < 5.5 V 0.7 DVDD DVDD + 0.3
VIL Low-level input voltage 1.65 V < DVDD < 2.3 V –0.3 0.2 DVDD V
2.3 V < DVDD < 5.5 V –0.3 0.3 DVDD
Input current ±0.01 0.1 μA
DIGITAL OUTPUTS
VOH High-level output voltage IOH = 500-µA source 0.8 DVDD DVDD V
VOL Low-level output voltage IOH = 500-µA sink 0 0.2 DVDD V
POWER SUPPLY
IRVDD Analog supply current ADS8920B at RVDD = 5 V, 1-MSPS 4.2 5.3 mA
ADS8922B at RVDD = 5 V, 500-KSPS 3.2 4 mA
ADS8924B at RVDD = 5 V, 250-KSPS 2.8 3.5 mA
Static, no conversion 970 μA
Static, PD_ADC = 1b(8) 900 μA
Static, PD_REFBUF = 1b(8) 120 μA
Static, PD_ADC = 1b and PD_REFBUF = 1b(8) 40 μA
IDVDD Digital supply current DVDD = 3 V, CLOAD = 10 pF, no conversion 1 μA
PRVDD Power dissipation ADS8920B at RVDD = 5 V, 1-MSPS 21 26.5 mW
ADS8922B at RVDD = 5 V, 500-KSPS 16 20
ADS8924B at RVDD = 5 V, 250-KSPS 14 17.5
See the REF_MRG Register.
While operating with internal reference buffer and LDO.
See Figure 8, Figure 9, Figure 14, and Figure 15 for statistical distribution data for DNL, INL, offset, and gain error parameters.
LSB = least-significant bit. 1 LSB at 16-bit resolution is approximately 15 ppm.
For selected VREF, see the OFST_CAL Register.
Includes internal reference buffer errors and drifts.
For VIN = –0.1 dBFS.
See the PD_CNTL Register.

Timing Requirements

MIN TYP MAX UNIT TIMING DIAGRAM
CONVERSION CYCLE
fcycle Sampling frequency ADS8920B 1000 kHz Figure 1
ADS8922B 500
ADS8924B 250
tcycle ADC cycle-time period ADS8920B 1 µs
ADS8922B 2
ADS8924B 4
twh_CONVST Pulse duration: CONVST high 30 ns
twl_CONVST Pulse duration: CONVST low 30 ns
tacq Acquisition time 300 ns
tqt_acq Quiet acquisition time 30 ns Figure 46, see Data Transfer Protocols
td_cnvcap Quiet aperture time 20 ns
ASYNCHRONOUS RESET, AND LOW POWER MODES
twl_RST Pulse duration: RST low 100 ns Figure 2
SPI-COMPATIBLE SERIAL INTERFACE
fCLK Serial clock frequency 2.35 V ≤ DVDD ≤ 5.5 V,
TA = –40°C to +125°C,
VIH > 0.7 DVDD, VIL < 0.3 DVDD
70 MHz Figure 3
1.65 V ≤ DVDD < 2.35 V,
TA = –40°C to +125°C,
VIH > 0.8 DVDD, VIL < 0.2 DVDD
20
1.65 V ≤ DVDD < 2.35 V,
TA = 0°C to +60°C,
VIH > 0.8 DVDD, VIL < 0.2 DVDD
57
1.65 V ≤ DVDD < 2.35 V,
TA = –40°C to +125°C,
VIH > 0.9 DVDD, VIL < 0.1 DVDD
68
tCLK Serial clock time period 1/fCLK ns Figure 3
tph_CK SCLK high time 0.45 0.55 tCLK Figure 3
tpl_CK SCLK low time 0.45 0.55 tCLK
tsu_CSCK Setup time: CS falling to the first SCLK capture edge 12 ns
tsu_CKDI Setup time: SDI data valid to the SCLK capture edge 1.5 ns
tht_CKDI Hold time: SCLK capture edge to (previous) data valid on SDI 1 ns
tht_CKCS Delay time: last SCLK falling to CS rising 7 ns
SOURCE-SYNCHRONOUS SERIAL INTERFACE (External Clock)(1)
fCLK Serial clock frequency SDR (DATA_RATE = 0b),
2.35 V ≤ DVDD ≤ 5.5 V
70 MHz Figure 4, see Data Transfer Protocols
DDR (DATA_RATE = 1b),
2.35 V ≤ DVDD ≤ 5.5 V
35
tCLK Serial clock time period 1/fCLK ns
The external clock option is not recommended when operating with DVDD < 2.35 V. See Table 9.

Switching Characteristics

At RVDD = 5.5 V, DVDD = 1.65 V to 5.5 V, VREF = 5 V, and maximum throughput (unless otherwise noted).
Minimum and maximum values at TA = –40°C to +125°C; typical values at TA = 25°C.
PARAMETER MIN TYP MAX UNIT TIMING DIAGRAM
CONVERSION CYCLE
tconv Conversion time ADS8920B 580 640 ns Figure 1
ADS8922B 1100 1200
ADS8924B 2400 2500
ASYNCHRONOUS RESET, AND LOW POWER MODES
td_rst Delay time: RST rising to RVS rising 3 ms Figure 2
tPU_ADC Power-up time for converter module 1 ms See PD_CNTL Register
tPU_REFBUF Power-up time for internal reference buffer, CREFBUF = 10 µF 10 ms
tPU_Device Power-up time for device CLDO = 1 µF, CREFBUF = 10 µF 10 ms
SPI-COMPATIBLE SERIAL INTERFACE
tden_CSDO Delay time: CS falling to data enable 9 ns Figure 3
tdz_CSDO Delay time: CS rising to SDO going to Hi-Z 10 ns
td_CKDO Delay time: SCLK launch edge to (next) data valid on SDO 13 ns
td_CSRDY_f Delay time: CS falling to RVS falling 12 ns Figure 4
td_CSRDY_r Delay time:
CS rising to RVS rising
After NOP operation 30 ns Figure 4
After WR or RD operation 120
SOURCE-SYNCHRONOUS SERIAL INTERFACE (External Clock)(1)
td_CKSTR_r Delay time: SCLK launch edge to RVS rising 13 ns Figure 4
td_CKSTR_f Delay time: SCLK launch edge to RVS falling 13 ns
toff_STRDO_f Time offset: RVS falling to (next) data valid on SDO -2 2 ns
toff_STRDO_r Time offset: RVS rising to (next) data valid on SDO -2 2 ns
tph_STR Strobe output high time, 2.35 V ≤ DVDD ≤ 5.5 V 0.45 0.55 tSTR
tpl_STR Strobe output low time, 2.35 V ≤ DVDD ≤ 5.5 V 0.45 0.55 tSTR
SOURCE-SYNCHRONOUS SERIAL INTERFACE (Internal Clock)
td_CSSTR Delay time: CS falling to RVS rising 15 50 ns Figure 5
tSTR Strobe output time period INTCLK option 15 ns
INTCLK / 2 option 30
INTCLK / 4 option 60
tph_STR Strobe output high time 0.45 0.55 tSTR
tpl_STR Strobe output low time 0.45 0.55 tSTR
ADS8920B ADS8922B ADS8924B ai_typ_conv_sbas707.gif Figure 1. Conversion Cycle Timing
ADS8920B ADS8922B ADS8924B tim_reset_sbas707.gif Figure 2. Asynchronous Reset Timing
ADS8920B ADS8922B ADS8924B tim_spi_sbas707.gif
The SCLK polarity, launch edge, and capture edge depend on the SPI protocol selected.
Figure 3. SPI-Compatible Serial Interface Timing

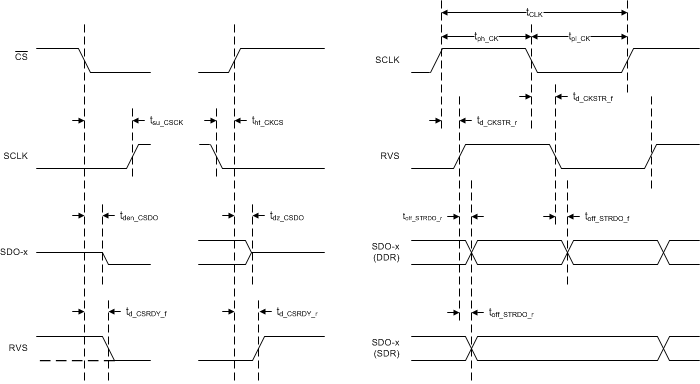

ADS8920B ADS8922B ADS8924B tim_srcsync-extclk_sbas707.gif Figure 4. Source-Synchronous Serial Interface Timing (External Clock)

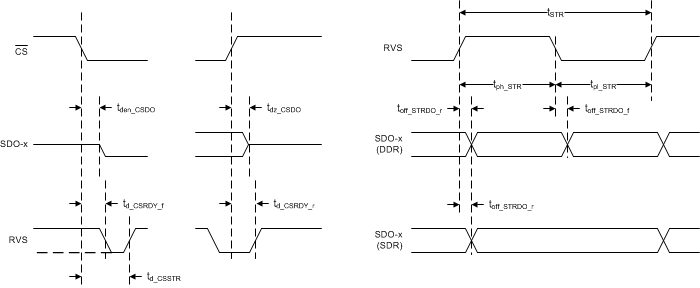

ADS8920B ADS8922B ADS8924B tim_srcsync-intclk_sbas707.gif Figure 5. Source-Synchronous Serial Interface Timing (Internal Clock)

Typical Characteristics

at TA = 25°C, RVDD = 5.5 V, DVDD = 3 V, VREF = 5 V, and maximum-rated throughput (unless otherwise noted)
ADS8920B ADS8922B ADS8924B D001_SBAS729.gif
Typical DNL = ±0.2 LSB
Figure 6. Typical DNL
ADS8920B ADS8922B ADS8924B D007_SBAS729.gif
1000 devices
Figure 8. Typical DNL Distribution
ADS8920B ADS8922B ADS8924B D003_SBAS729.gif
Figure 10. DNL vs Temperature
ADS8920B ADS8922B ADS8924B D005_SBAS729.gif
Figure 12. DNL vs Reference Voltage
ADS8920B ADS8922B ADS8924B D019_SBAS729.gif
4000 devices
Figure 14. Typical Offset Distribution
ADS8920B ADS8922B ADS8924B D020_SBAS729.gif
REF_SEL[2:0] = 000b
Figure 16. Offset vs Temperature
ADS8920B ADS8922B ADS8924B D023_SBAS729.gif
EN_MARG = 0b
Figure 18. Gain Error vs Temperature
ADS8920B ADS8922B ADS8924B D009_SBAS729.gif
Standard Deviation = 0.47 LSB
Figure 20. DC Input Histogram
ADS8920B ADS8922B ADS8924B D029_SBAS729.gif
fIN = 2 kHz SNR = 96.8 dB THD = –125 dB
Figure 22. Typical FFT - ADS8922B
ADS8920B ADS8922B ADS8924B D013_SBAS729.gif
fIN = 2 kHz
Figure 24. Noise Performance vs Temperature
ADS8920B ADS8922B ADS8924B D015_SBAS729.gif
fIN = 2 kHz
Figure 26. Noise Performance vs Reference Voltage
ADS8920B ADS8922B ADS8924B D017_SBAS729.gif
Figure 28. Noise Performance vs Input Frequency
ADS8920B ADS8922B ADS8924B D026_SBAS729.gif
Figure 30. Analog Supply Current vs Supply Voltage
ADS8920B ADS8922B ADS8924B D002_SBAS729.gif
Typical INL = ±0.3 LSB
Figure 7. Typical INL
ADS8920B ADS8922B ADS8924B D008_SBAS729.gif
1000 devices
Figure 9. Typical INL Distribution
ADS8920B ADS8922B ADS8924B D004_SBAS729.gif
Figure 11. INL vs Temperature
ADS8920B ADS8922B ADS8924B D006_SBAS729.gif
Figure 13. INL vs Reference Voltage
ADS8920B ADS8922B ADS8924B D022_SBAS729.gif
4000 devices
Figure 15. Typical Gain Error Distribution
ADS8920B ADS8922B ADS8924B D021_SBAS729.gif
With appropriate REF_SEL[2:0], see OFST_CAL
Figure 17. Offset vs Reference Voltage
ADS8920B ADS8922B ADS8924B D024_SBAS729.gif
EN_MARG = 0b
Figure 19. Gain Error vs Reference Voltage
ADS8920B ADS8922B ADS8924B D011_SBAS729.gif
fIN = 2 kHz SNR = 96.8 dB THD = –125 dB
Figure 21. Typical FFT - ADS8920B
ADS8920B ADS8922B ADS8924B D030_SBAS729.gif
fIN = 2 kHz SNR = 96.8 dB THD = –125 dB
Figure 23. Typical FFT - ADS8924B
ADS8920B ADS8922B ADS8924B D014_SBAS729.gif
fIN = 2 kHz
Figure 25. Distortion Performance vs Temperature
ADS8920B ADS8922B ADS8924B D016_SBAS729.gif
fIN = 2 kHz
Figure 27. Distortion Performance vs Reference Voltage
ADS8920B ADS8922B ADS8924B D018_SBAS729.gif
Figure 29. Distortion Performance vs Input Frequency
ADS8920B ADS8922B ADS8924B D028_SBAS729.gif
RVDD = 5 V
Figure 31. Analog Supply Current vs Temperature
