Switching Characteristics

over operating free-air temperature range (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
fCLKIN CLKIN clock frequency MCE = 0 9 20 21 MHz
MCE = 1 9 10 11
DutyCycle CLKIN clock duty cycle(1) 40% 50% 60%
tH1 DOUT hold time after rising edge of CLKIN MCE = 0, CLOAD = 15 pF 6 ns
tH2 DOUT hold time after rising edge of CLKIN MCE = 1, CLOAD = 15 pF 6 23 ns
tH3 DOUT hold time after falling edge of CLKIN MCE = 1, CLOAD = 15 pF 10 26 ns
tD1 Rising edge of CLKIN to DOUT valid delay MCE = 0, CLOAD = 15 pF 25 ns
tD2 Rising edge of CLKIN to DOUT valid delay MCE = 1, CLOAD = 15 pF 11 27 ns
tD3 Falling edge of CLKIN to DOUT valid delay MCE = 1, CLOAD = 15 pF 15 30 ns
tr DOUT rise time 10% to 90%, 3.0 V ≤ VDD ≤ 3.6 V, CLOAD = 15 pF 2.5 5 ns
10% to 90%, 4.5 V ≤ VDD ≤ 5.5 V, CLOAD = 15 pF 1.5 3.5
tf DOUT fall time 90% to 10%, 3.0 V ≤ VDD ≤ 3.6 V, CLOAD = 15 pF 2.5 5.8 ns
90% to 10%, 4.5 V ≤ VDD ≤ 5.5 V, CLOAD = 15 pF 1.8 4.4
tASTART Analog startup time VDD step to 3.0 V, 0.1% settling, CLKIN applied 0.25 ms
The duty cycle of DOUT equals the clock duty cycle of the applied CLKIN signal.

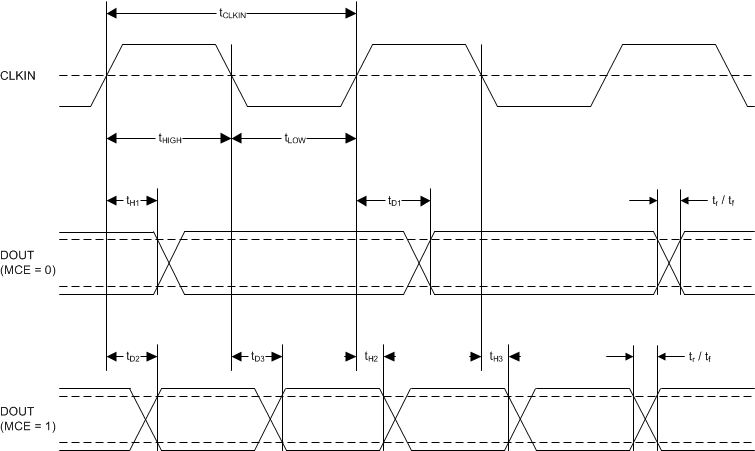

AMC1035 tim_AMC1035.gifFigure 1. Digital Interface Timing

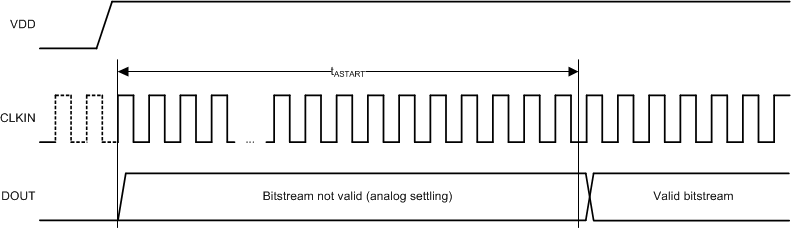

AMC1035 tim_start_bas837.gifFigure 2. Device Startup Timing
