8.1.1 Bipolar Operation Using The DAC8881

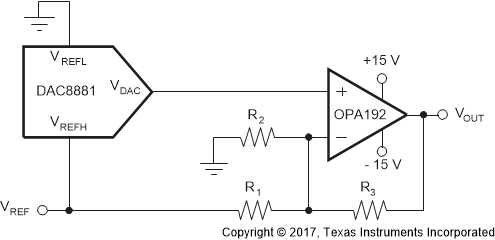

The DAC8881 is designed for single-supply operation; however, a bipolar output is also possible using the circuit shown in Figure 72. This circuit gives a bipolar output voltage of VOUT. When GAIN = 1, VOUT can be calculated using Equation 2:

DAC8881 Bipolar_Output_Range.gif
Some pins are omitted for clarity.
Figure 72. Bipolar Operation Using the DAC8881
Equation 2. DAC8881 q_vout3_bas422.gif

Where:

VBIP(CODE) = bipolar output voltage versus CODE from the OPA211.

CODE = 0 to 262143. This is the digital code loaded to the DAC.

VREF = reference high voltage applied to the DAC8881.

As an example, a ±8-V output span can be achieved by using values of 5 V, 6.25 kΩ, 16.67 kΩ, and 10 kΩ for Vref, R1, R2, and R3 respectively.
