Specifications

Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)(1)(2)(3)
MIN MAX UNIT
Supply voltage VDDn (1.8 V) –0.3 2.5 V
VDDIO –0.3 4
Serializer, VDDTX –0.3 2.5
Deserializer, VDDTX –0.3 4
LVCMOS I/O voltage –0.3 VDDIO + 0.3 V
Serializer LVDS input voltage –0.3 VDDIO + 0.3 V
Deserializer LVDS output voltage –0.3 VDDTX + 0.3 V
Serializer CML driver output voltage –0.3 VDDn + 0.3 V
Deserializer CML receiver input voltage –0.3 VDD + 0.3 V
Junction temperature,TJ 150 °C
Storage temperature, Tstg –65 150 °C
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
If Military/Aerospace specified devices are required, please contact the Texas Instruments Sales Office/Distributors for availability and specifications.
For soldering specifications, see Absolute Maximum Ratings for Soldering (SNOA549).

ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±8000 V
Charged-device model (CDM), per JEDEC specification JESD22-C101(2) ±1250
Machine Model ±250
IEC 61000-4-2, powered-up only contact discharge
RD = 330 Ω, CS = 150 pF (RIN+, RIN–)
>±8000
IEC 61000-4-2, powered-up only air-gap discharge
RD = 330 Ω, CS = 150 pF (RIN+, RIN–)
>±30000
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN NOM MAX UNIT
VDDn Supply voltage 1.71 1.8 1.89 V
VDDTX Supply voltage (serializer) 1.71 1.8 1.89 V
VDDTX Supply voltage (deserializer) 3 3.3 3.6 V
VDDIO LVCMOS supply voltage (1.8-V nominal) 1.71 1.8 1.89 V
VDDIO LVCMOS supply voltage (3.3-V nominal) 3 3.3 3.6 V
Clock frequency 10 75 MHz
Supply noise(1) 100 mVp-p
TA Operating free-air temperature −40 25 85 °C
Supply noise testing was done with minimum capacitors on the PCB. A sinusoidal signal is AC-coupled to the VDDn (1.8 V) supply with amplitude = 100 mVp-p measured at the device VDDn pins. Bit error rate testing of input to the serializer and output of the deserializer with 10 meter cable shows no error when the noise frequency on the serializer is less than 750 kHz. The deserializer, on the other hand, shows no error when the noise frequency is less than 400 kHz.

Thermal Information

over operating free-air temperature range (unless otherwise noted)
THERMAL METRIC(1) DS92LV0421 DS92LV0422 UNIT
NJK (WQFN) RHS (WQFN)
36 PINS 48 PINS
RθJA Junction-to-ambient thermal resistance(2) 33.8 28.8 °C/W
RθJC(top) Junction-to-case (top) thermal resistance(2) 15.8 9.3 °C/W
RθJB Junction-to-board thermal resistance 7.2 5.7 °C/W
ψJT Junction-to-top characterization parameter 0.2 0.1 °C/W
ψJB Junction-to-board characterization parameter 7.1 5.7 °C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance 2.6 1.6 °C/W
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report.
Based on nine thermal vias.

Electrical Characteristics: Serializer DC

over recommended operating supply and temperature ranges (unless otherwise noted)(1)(2)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
LVCMOS INPUT DC SPECIFICATIONS
VIH High-level input voltage VDDIO = 3 V to 3.6 V (PDB, VODSEL, MAPSEL, CONFIG[1:0], BISTEN pins) 2 VDDIO V
VDDIO = 1.71 V to 1.89 V (PDB, VODSEL, MAPSEL, CONFIG[1:0], BISTEN pins) 0.65 × VDDIO VDDIO
VIL Low-level input voltage VDDIO = 3 V to 3.6 V (PDB, VODSEL, MAPSEL, CONFIG[1:0], BISTEN pins) GND 0.8 V
VDDIO = 1.71 V to 1.89 V (PDB, VODSEL, MAPSEL, CONFIG[1:0], BISTEN pins) GND 0.35 × VDDIO
IIN Input current VIN = 0 V or VDDIO (PDB, VODSEL, MAPSEL, CONFIG[1:0], BISTEN pins) VDDIO = 3 V to 3.6 V −15 ±1 15 µA
VDDIO = 1.7 V to 1.89 V −15 ±1 15
CHANNEL LINK PARALLEL LVDS RECEIVER DC SPECIFICATIONS
VTH Differential threshold, high voltage VCM = 1.2 V (see Figure 1),
RXIN[3:0]± and RXCLKIN± pins
100 mV
VTL Differential threshold, low voltage VCM = 1.2 V (see Figure 1),
RXIN[3:0]± and RXCLKIN± pins
−100 mV
|VID| Differential input voltage swing VCM = 1.2 V (see Figure 1),
RXIN[3:0]± and RXCLKIN± pins
200 600 mV
VCM Common-mode voltage VDDIO = 3.3 V (RXIN[3:0]± and RXCLKIN± pins) 0 1.2 2.4 V
VDDIO = 1.8 V (RXIN[3:0]± and RXCLKIN± pins) 0 1.2 1.7
IIN Input current RXIN[3:0]± and RXCLKIN± pins −15 ±1 15 µA
CHANNEL LINK II SERIAL CML DRIVER DC SPECIFICATIONS
VOD Differential output voltage RL = 100 Ω,
de-emphasis = disabled
(see Figure 3), DOUT+ and DOUT– pins
VODSEL = L ±225 ±300 ±375 mV
VODSEL = H ±350 ±450 ±550
VODp-p Differential output voltage
(DOUT+) – (DOUT–)
RL = 100 Ω,
de-emphasis = disabled
(see Figure 3), DOUT+ and DOUT– pins
VODSEL = L 600 mVp-p
VODSEL = H 900
ΔVOD Output voltage unbalance RL = 100 Ω, de-emphasis = disabled, VODSEL = L (DOUT+ and DOUT– pins) 1 50 mV
VOS Offset voltage
(single-ended)
At TP A and B (see Figure 2), RL = 100 Ω, de-emphasis = disabled (DOUT+ and DOUT– pins) VODSEL = L 1.65 V
VODSEL = H 1.575
ΔVOS Offset voltage unbalance
(single-ended)
At TP A and B (see Figure 2), RL = 100 Ω,
de-emphasis = disabled (DOUT+ and DOUT– pins)
1 mV
IOS Output short-circuit current DOUT± = 0 V, de-emphasis = disabled,
VODSEL = 0 (DOUT+ and DOUT– pins)
−36 mA
RTO Internal output termination resistor DOUT+ and DOUT– pins 80 120 Ω
SERIALIZER SUPPLY CURRENT
IDDT1 Serializer supply current
(includes load current)
RL = 100 Ω, f = 75 MHz, checker board pattern (see Figure 15), de-emphasis = 3 kΩ, VODSEL = H,
VDD = 1.89 V (All VDD pins)
84 100 mA
IDDIOT1 Serializer supply current
(includes load current)
RL = 100 Ω, f = 75 MHz
de-emphasis = 3 kΩ,
VODSEL = H,
checker board pattern (see Figure 15)
VDDIO= 1.89 V (VDDIO pin) 3 5 mA
VDDIO = 3.6 V (VDDIO pin) 10 13
IDDT2 Serializer supply current
(includes load current)
RL = 100 Ω, f = 75 MHz, checker board pattern (see Figure 15), de-emphasis = 6 kΩ, VODSEL = L,
VDD = 1.89 V (All VDD pins)
77 90 mA
IDDIOT2 Serializer supply current
(includes load current)
RL = 100 Ω, f = 75 MHz
de-emphasis = 6 kΩ,
VODSEL = L,
checker board pattern (see Figure 15)
VDDIO= 1.89 V (VDDIO pin) 3 5 mA
VDDIO = 3.6 V (VDDIO pin) 10 13
IDDZ Serializer supply current power-down PDB = 0 V, all other LVCMOS inputs = 0 V,
VDD = 1.89 V (All VDD pins)
100 1000 µA
IDDIOZ Serializer supply current power-down PDB = 0 V, all other LVCMOS inputs = 0 V VDDIO= 1.89 V (VDDIO pin) 0.5 10 µA
VDDIO = 3.6 V (VDDIO pin) 1 30
Typical values represent most likely parametric norms at VDD = 3.3 V, TA = +25°C, and at the Recommended Operation Conditions at the time of product characterization and are not verified.
Current into device pins is defined as positive. Current out of a device pin is defined as negative. Voltages are referenced to ground except VOD, ΔVOD, VTH, and VTL, which are differential voltages.

Electrical Characteristics: Deserializer DC

over recommended operating supply and temperature ranges (unless otherwise noted)(1)(2)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
3.3-V LVCMOS I/O DC SPECIFICATIONS (VDDIO = 3 V to 3.6 V)
VIH High level input voltage PDB, VODSEL, OEN, MAPSEL, LFMODE, SSC[2:0], and BISTEN pins 2 VDDIO V
VIL Low level input voltage PDB, VODSEL, OEN, MAPSEL, LFMODE, SSC[2:0], and BISTEN pins GND 0.8 V
IIN Input current VIN = 0 V or VDDIO (PDB, VODSEL, OEN, MAPSEL, LFMODE, SSC[2:0], and BISTEN pins) −15 ±1 15 µA
VOH High level output voltage IOH = –0.5 mA (LOCK and PASS pins) VDDIO – 0.2 VDDIO V
VOL Low level output voltage IOL = 0.5 mA (LOCK and PASS pins) GND 0.2 V
IOS Output short-circuit current VOUT = 0 V (LOCK and PASS pins) –10 mA
IOZ TRI-STATE output current PDB = 0 V, OSS_SEL = 0 V, VOUT = 0 V or VDDIO (LOCK and PASS pins) –10 10 µA
1.8-V LVCMOS I/O DC SPECIFICATIONS (VDDIO = 1.71 V to 1.89 V)
VIH High level input voltage PDB, VODSEL, OEN, MAPSEL, LFMODE, SSC[2:0], and BISTEN pins 0.65 × VDDIO VDDIO V
VIL Low level input voltage PDB, VODSEL, OEN, MAPSEL, LFMODE, SSC[2:0], and BISTEN pins GND 0.35 × VDDIO V
IIN Input current VIN = 0 V or VDDIO (PDB, VODSEL, OEN, MAPSEL, LFMODE, SSC[2:0], and BISTEN pins) −15 ±1 15 µA
VOH High level output voltage IOH = –0.5 mA (LOCK and PASS pins) VDDIO – 0.2 VDDIO V
VOL Low level output voltage IOL = 0.5 mA (LOCK and PASS pins) GND 0.2 V
IOS Output short-circuit current VOUT = 0 V (LOCK and PASS pins) –3 mA
IOZ TRI-STATE output current PDB = 0 V, OSS_SEL = 0 V, VOUT = 0 V or VDDIO (LOCK and PASS pins) –15 15 µA
CHANNEL LINK PARALLEL LVDS DRIVER DC SPECIFICATIONS
|VOD| Differential output voltage RL = 100 Ω
(see Figure 3; TXOUT[3:0]± and TXCLKOUT± pins)
VODSEL = L 100 250 400 mV
VODSEL = H 200 400 600
VODp-p Differential output voltage
A to B
RL = 100 Ω
(see Figure 3; TXOUT[3:0]± and TXCLKOUT± pins)
VODSEL = L 500 mVp-p
VODSEL = H 800
ΔVOD Output voltage unbalance RL = 100 Ω
(see Figure 3; TXOUT[3:0]± and TXCLKOUT± pins)
1 50 mV
VOS Offset voltage
(single-ended)
RL = 100 Ω
(see Figure 3; TXOUT[3:0]± and TXCLKOUT± pins)
VODSEL = L 1 1.2 1.5 V
VODSEL = H 1.2
ΔVOS Offset voltage unbalance
(single-ended)
RL = 100 Ω (see Figure 3; TXOUT[3:0]± and TXCLKOUT± pins) 1 50 mV
IOS Output short-circuit current RL = 100 Ω, VOUT = GND
(TXOUT[3:0]± and TXCLKOUT± pins)
–5 mA
IOZ Output TRI-STATE current RL = 100 Ω, VOUT = VDDTX or GND
(TXOUT[3:0]± and TXCLKOUT± pins)
–10 10 µA
CHANNEL LINK II SERIAL CML RECEIVER DC SPECIFICATIONS
VTH Differential input threshold high voltage VCM = 1.2 V (Internal VBIAS)
(RIN+ and RIN- pins)
50 mV
VTL Differential input threshold low voltage VCM = 1.2 V (Internal VBIAS)
(RIN+ and RIN- pins)
–50 mV
VCM Common mode voltage, internal VBIAS RIN+ and RIN- pins 1.2 V
RT Input termination RIN+ and RIN- pins 85 100 115 Ω
DESERIALIZER SUPPLY CURRENT
IDD1 Deserializer supply current
(Includes load current)
75 MHz clock, checker board pattern (see Figure 15), VODSEL = H, SSCG[2:0] = 000'b,
VDDn = 1.89 V (All VDD(1.8) pins)
88 100 mA
IDDTX1 Deserializer supply current
(Includes load current)
75 MHz clock, checker board pattern (see Figure 15), VODSEL = H, SSCG[2:0] = 000'b,
VDDTX = 3.6 V (VDDTX pin)
40 50 mA
IDDIO1 Deserializer supply current
(Includes load current)
75 MHz clock,
checker board pattern (see Figure 15), VODSEL = H,
SSCG[2:0] = 000'b
VDDIO = 1.89 V (VDDIO pin) 0.3 0.8 mA
VDDIO = 3.6 V (VDDIO pin) 0.8 1.5
IDDZ Deserializer supply current power-down PDB = 0 V, All other LVCMOS inputs = 0 V,
VDDn = 1.89 V (All VDD(1.8) pins)
0.15 2 mA
IDDTXZ Deserializer supply current power-down PDB = 0 V, All other LVCMOS inputs = 0 V,
VDDTX = 3.6 V (VDDTX pin)
0.01 0.1 mA
IDDIOZ Deserializer supply current power-down PDB = 0 V,
all other LVCMOS inputs = 0 V
VDDIO = 1.89 V (VDDIO pin) 0.01 0.08 mA
VDDIO = 3.6 V (VDDIO pin) 0.01 0.08
Typical values represent most likely parametric norms at VDD = 3.3 V, TA = +25°C, and at the Recommended Operation Conditions at the time of product characterization and are not verified.
Current into device pins is defined as positive. Current out of a device pin is defined as negative. Voltages are referenced to ground except VOD, ΔVOD, VTH, and VTL, which are differential voltages.

Electrical Characteristics: DC and AC Serial Control Bus

over 3.3-V supply and temperature ranges (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
VIH Input high-level voltage SDA and SCL 0.7 × VDDIO VDDIO V
VIL Input low-level voltage SDA and SCL GND 0.3 × VDDIO V
VHY Input hysteresis >50 mV
VOL Output low-level voltage SDA, IOL = 0.5 mA 0 0.36 V
IIN Input current SDA or SCL, Vin = VDDIO or GND –10 10 µA
tR SDA rise time, READ SDA, RPU = 10 kΩ, Cb ≤ 400pF
(see Figure 18)
800 ns
tF SDA fall time, READ SDA, RPU = 10 kΩ, Cb ≤ 400pF
(see Figure 18)
50 ns
tSU;DAT Set-up time, READ See Figure 18 540 ns
tHD;DAT Hold time, READ See Figure 18 600 ns
tSP Input filter 50 ns
CIN Input capacitance SDA or SCL <5 pF

Timing Requirements: Serial Control Bus

over 3.3-V supply and temperature ranges (unless otherwise noted)
MIN TYP MAX UNIT
fSCL SCL clock frequency Standard mode 100 kHz
Fast mode 400
tLOW SCL low period Standard mode 4.7 µs
Fast mode 1.3
tHIGH SCL high period Standard mode 4 µs
Fast mode 0.6
tHD:STA Hold time for a START or a repeated START condition (see Figure 18) Standard mode 4 µs
Fast mode 0.6
tSU:STA Set-up time for a START or a repeated START condition (see Figure 18) Standard mode 4.7 µs
Fast mode 0.6
tHD:DAT Data hold time (see Figure 18) Standard mode 0 3.45 µs
Fast mode 0 0.9
tSU:DAT Data set-up time (see Figure 18) Standard mode 250 µs
Fast mode 100
tSU:STO Set-up time for STOP (see Figure 18) Standard mode 4 µs
Fast mode 0.6
tBUF Bus free time between STOP and START
(see Figure 18)
Standard mode 4.7 µs
Fast mode 1.3
tr SCL and SDA rise time (see Figure 18) Standard mode 1000 ns
Fast mode 300
tf SCL and SDA fall time (see Figure 18) Standard mode 300 ns
Fast mode 300

Switching Characteristics: Serializer

over recommended operating supply and temperature range (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
CHANNEL LINK PARALLEL LVDS INPUT
tRSP0 LVDS Receiver Strobe Position (bit 0) RXCLKIN = 75 MHz, RXIN[3:0] pins
(see Figure 5)
0.57 0.95 1.33 ns
tRSP1 LVDS Receiver Strobe Position (bit 1) RXCLKIN = 75 MHz, RXIN[3:0] pins
(see Figure 5)
2.47 2.85 3.23 ns
tRSP2 LVDS Receiver Strobe Position (bit 2) RXCLKIN = 75 MHz, RXIN[3:0] pins
(see Figure 5)
4.37 4.75 5.13 ns
tRSP3 LVDS Receiver Strobe Position (bit 3) RXCLKIN = 75 MHz, RXIN[3:0] pins
(see Figure 5)
6.27 6.65 7.03 ns
tRSP4 LVDS Receiver Strobe Position (bit 4) RXCLKIN = 75 MHz, RXIN[3:0] pins
(see Figure 5)
8.17 8.55 8.93 ns
tRSP5 LVDS Receiver Strobe Position (bit 5) RXCLKIN = 75 MHz, RXIN[3:0] pins
(see Figure 5)
10.07 10.45 10.83 ns
tRSP6 LVDS Receiver Strobe Position (bit 6) RXCLKIN = 75 MHz, RXIN[3:0] pins
(see Figure 5)
11.97 12.35 12.73 ns
CHANNEL LINK II CML OUTPUT
tLLHT Serializer output low-to-high transition time
(see Figure 4)
RL = 100 Ω, De-emphasis = disabled,
VODSEL = 0
100 200 300 ps
RL = 100 Ω, De-emphasis = disabled,
VODSEL = 1
100 200 300
tLHLT Serializer output high-to-low transition time
(see Figure 4)
RL = 100 Ω, De-emphasis = disabled,
VODSEL = 0
130 260 390 ps
RL = 100 Ω, De-emphasis = disabled,
VODSEL = 1
100 200 300
tXZD Serializer output active to OFF delay
(see Figure 9)(1)
5 15 ns
tPLD Serializer PLL lock time
(see Figure 7)(1)(2)(3)
RL = 100 Ω 1.5 10 ms
tSD Serializer delay, latency
(see Figure 10)(1)
RL = 100 Ω 147 × T 148 × T ns
tDJIT Serializer output total jitter
(see Figure 12)
RL = 100 Ω, De-emphasis = disabled,
RANDOM pattern
0.3 UI(4)
λSTXBW Serializer jitter transfer
(function –3-dB bandwidth)(1)(5)
RXCLKIN = 43 MHz 2.2 MHz
RXCLKIN = 75 MHz 3
δSTX Serializer jitter transfer
(function peaking)(1)(5)
RXCLKIN = 43 MHz 1 dB
RXCLKIN = 75 MHz 1
Specification is verified by characterization and is not tested in production.
tPLD and tDDLT is the time required by the serializer and deserializer to obtain lock when exiting power-down state with an active RXCLKIN.
When the serializer output is at TRI-STATE, the deserializer loses PLL lock. Resynchronization and Re-lock must occur before data transfer require tPLD.
UI: Unit Interval is equivalent to one serialized data bit width (1 UI = 1 / [28 × CLK]). The UI scales with clock frequency.
Specification is verified by design and is not tested in production.

Switching Characteristics: Deserializer

over recommended operating supply and temperature range (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
CHANNEL LINK PARALLEL LVDS OUTPUT
tDLHT Deserializer low-to-high transition time RL = 100 Ω
TXCLKOUT±, TXOUT[3:0]± pins
0.3 0.6 ns
tDHLT Deserializer high-to-low transition time RL = 100 Ω
TXCLKOUT±, TXOUT[3:0]± pins
0.3 0.6 ns
tDCCJ Cycle-to-cycle output jitter(1)(2)(3) TXCLKOUT± = 10 MHz 900 2100 ps
TXCLKOUT± = 75 MHz 75 125
tTTP1 LVDS Transmitter Pulse Position for bit 1 TXCLKOUT± = 10 to 75 MHz
(see Figure 6)
0 UI(4)
tTTP0 LVDS Transmitter Pulse Position for bit 0 TXCLKOUT± = 10 to 75 MHz
(see Figure 6)
1 UI(4)
tTTP6 LVDS Transmitter Pulse Position for bit 6 TXCLKOUT± = 10 to 75 MHz
(see Figure 6)
2 UI(4)
tTTP5 LVDS Transmitter Pulse Position for bit 5 TXCLKOUT± = 10 to 75 MHz
(see Figure 6)
3 UI(4)
tTTP4 LVDS Transmitter Pulse Position for bit 4 TXCLKOUT± = 10 to 75 MHz
(see Figure 6)
4 UI(4)
tTTP3 LVDS Transmitter Pulse Position for bit 3 TXCLKOUT± = 10 to 75 MHz
(see Figure 6)
5 UI(4)
tTTP2 LVDS Transmitter Pulse Position for bit 2 TXCLKOUT± = 10 to 75 MHz
(see Figure 6)
6 UI(4)
tDD Deserializer delay, latency(3)
(see Figure 11)
TXCLKOUT± = 10 to 75 MHz
(see Figure 6)
142 × T 143 × T ns
tTPDD Deserializer power-down delay,
active to OFF (see Figure 13)
TXCLKOUT± = 75 MHz 6 10 ns
tTXZR Deserializer enable delay,
OFF to active (see Figure 14)
TXCLKOUT± = 75 MHz 40 55 ns
CHANNEL LINK II CML INPUT
tDDLT Deserializer lock time(5)
(see Figure 8)
TXCLKOUT± = 10 MHz, SSCG = OFF 7 ms
TXCLKOUT± = 10 MHz, SSCG = ON 14
TXCLKOUT± = 75 MHz, SSCG = OFF 6
TXCLKOUT± = 65 MHz, SSCG = ON 8
tDJIT Deserializer input jitter tolerance
(see Figure 16)
EQ = OFF
SSCG = OFF
Jitter frequency > 10 MHz
>0.45 UI(6)
LVCMOS OUTPUTS
tCLH Deserializer low-to-high transition time
(see Figure 4)
CL = 8 pF (LOCK and PASS pins) 10 15 ns
tCHL Deserializer high-to-low transition time
(see Figure 4)
CL = 8 pF (LOCK and PASS pins) 10 15 ns
tPASS BIST PASS valid time,
BISTEN = 1 (see Figure 17)
10 MHz
(PASS pin)
220 230 ns
75 MHz
(PASS pin)
40 65
SSCG MODE
fDEV Spread spectrum clocking
deviation frequency(3)
TXCLKOUT± = 10 to 65 MHz,
SSCG = ON
±0.5% ±2%
fMOD Spread spectrum clocking
modulation frequency(3)
TXCLKOUT± = 10 to 65 MHz,
SSCG = ON
8 100 kHz
tDCCJ is the maximum amount of jitter between adjacent clock cycles.
Specification is verified by characterization and is not tested in production.
Specification is verified by design and is not tested in production.
UI: Unit Interval is equivalent to one serialized data bit width in the OpenLDI parallel interface format (1 UI = 1 / [7 × CLK]). The UI scales with clock frequency.
tPLD and tDDLT is the time required by the serializer and deserializer to obtain lock when exiting power-down state with an active RXCLKIN.
UI – Unit Interval is equivalent to one serialized data bit width (1 UI = 1 / [28 × CLK]). The UI scales with clock frequency.
DS92LV0421 DS92LV0422 30120962.gif Figure 1. Channel Link DC VTH/VTL Definition
DS92LV0421 DS92LV0422 30120946.gif Figure 2. Output Test Circuit
DS92LV0421 DS92LV0422 30120930.gif Figure 3. CML Output Waveforms
DS92LV0421 DS92LV0422 30120947.gif Figure 4. CML Output Transition Times
DS92LV0421 DS92LV0422 30120961.png Figure 5. DS92LV0421 Channel Link Receiver Strobe Positions
DS92LV0421 DS92LV0422 30120970.gif Figure 6. DS92LV0422 LVDS Transmitter Pulse Positions
DS92LV0421 DS92LV0422 30120948.gif Figure 7. DS92LV0421 Lock Time
DS92LV0421 DS92LV0422 30120968.gif Figure 8. DS92LV0422 Lock Time
DS92LV0421 DS92LV0422 30120949.gif Figure 9. DS92LV0421 Disable Time
DS92LV0421 DS92LV0422 30120910.gif Figure 10. DS92LV0421 Latency Delay
DS92LV0421 DS92LV0422 30120967.gif Figure 11. DS92LV0422 Latency Delay
DS92LV0421 DS92LV0422 30120950.gif Figure 12. DS92LV0421 Output Jitter
DS92LV0421 DS92LV0422 30120979.gif Figure 13. DS92LV0422 Power-Down Delay
DS92LV0421 DS92LV0422 30120980.gif Figure 14. DS92LV0422 Enable Delay
DS92LV0421 DS92LV0422 30120932.gif Figure 15. Checkerboard Data Pattern
DS92LV0421 DS92LV0422 30105116.gif Figure 16. DS92LV0422 Receiver Input Jitter Tolerance
DS92LV0421 DS92LV0422 30120952.gif Figure 17. BIST PASS Waveform
DS92LV0421 DS92LV0422 30120936.gif Figure 18. Serial Control Bus Timing Diagram

Typical Characteristics

DS92LV0421 DS92LV0422 30105001.gif Figure 19. Typical IDDT (1.8-V Supply)
vs RXCLKIN

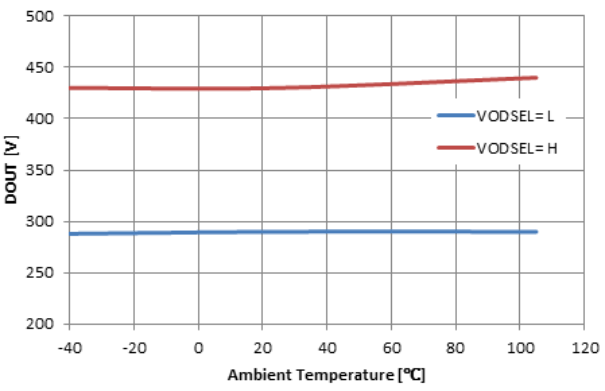

DS92LV0421 DS92LV0422 Differential Output Voltage vs Ambient Temperature.gif Figure 20. Serializer DOUT Voltage
vs Ambient Temperature
