6.9 Typical Characteristics

at TA = 25°C, VDD = 15 V, and VSS = –15 V (unless otherwise noted)

TMUX6104 D001_SCDS376.gif
TA = 25°C
Figure 1. On-Resistance vs Source or Drain Voltage
TMUX6104 D003_SCDS376.gif
TA = 25°C
Figure 3. On-Resistance vs Source or Drain Voltage

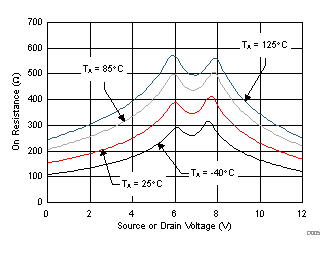

TMUX6104 D005_SCDS376.gif
VDD = 12 V, VSS = 0 V
Figure 5. On-Resistance vs Source or Drain Voltage

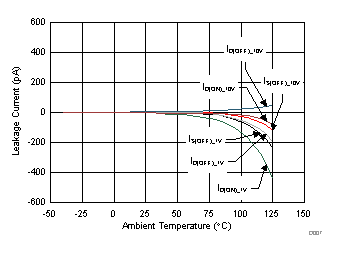

TMUX6104 D007_SCDS376.gif
VDD = 12 V, VSS = 0 V
Figure 7. Leakage Current vs Temperature
TMUX6104 D009_SCDS376.gif
Drain-to-source, TA = 25°C
Figure 9. Charge Injection vs Drain Voltage
TMUX6104 D011_SCDS376.gif
VDD = 15 V, VSS = –15 V, TA = 25°C
Figure 11. Off Isolation vs Frequency
TMUX6104 D013_SCDS376.gif
TA = 25°C
Figure 13. THD+N vs Frequency
TMUX6104 D015_SCDS376.gif
VDD = 15 V, VSS = –15 V, TA = 25°C
Figure 15. Capacitance vs Source Voltage
TMUX6104 D002_SCDS376.gif
TA = 25°C
Figure 2. On-Resistance vs Source or Drain Voltage
TMUX6104 D004_SCDS376.gif
VDD = 15 V, VSS = –15 V
Figure 4. On-Resistance vs Source or Drain Voltage

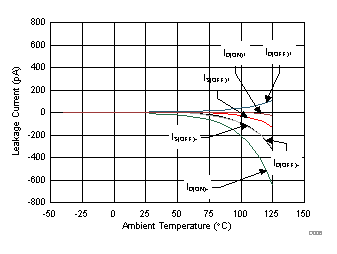

TMUX6104 D006_SCDS376.gif
VDD = 15 V, VSS = –15 V
Figure 6. Leakage Current vs Temperature
TMUX6104 D008_SCDS376.gif
Source-to-drain, TA = 25°C
Figure 8. Charge Injection vs Source Voltage

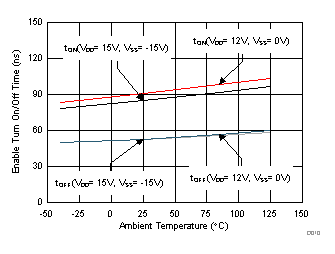

TMUX6104 D010_SCDS376.gif
Figure 10. Turn-On and Turn-Off Times vs Temperature
TMUX6104 D012_SCDS376.gif
VDD = 15 V, VSS = –15 V, TA = 25°C
Figure 12. Crosstalk vs Frequency

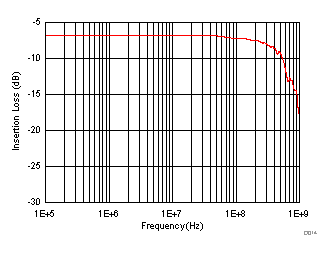

TMUX6104 D014_SCDS376.gif
VDD = 15 V, VSS = –15 V, TA = 25°C
Figure 14. On Response vs. Frequency
TMUX6104 D016_SCDS376.gif
VDD = 12 V, VSS = 0 V, TA = 25°C
Figure 16. Capacitance vs Source Voltage
