T2P Pin Interface

The T2P pin is an active-low, open-drain output which indicates that a high power source is available. An optocoupler can interface the T2P pin to circuitry on the secondary side of the converter. A high-gain optocoupler and a high-impedance (for example, CMOS) receiver are recommended. Design of the T2P optocoupler interface can be accomplished as follows:

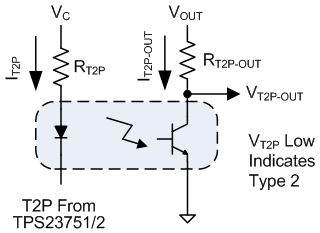

TPS23751 TPS23752 T2P_Int_SLVSB97.gifFigure 34. T2P Interface
  1. As shown in Figure 34, let VC = 12 V, VOUT = 5 V, RT2P-OUT = 10 kΩ, VT2P = 260 mV, VT2P-OUT = 400 mV.
  2. Equation 15. TPS23751 TPS23752 EQ15_lvsb97.gif
  3. The optocoupler current transfer ratio, CTR, is not needed to determine RT2P. A device with a minimum CTR of 100% at 1 mA LED bias current, IT2P, is selected. Note that in practice, CTR varies with temperature, LED bias current, and aging. These variations may require some iteration using the CTR-versus- IDIODE curve on the optocoupler data sheet.
  4. Equation 16. TPS23751 TPS23752 EQ16_lvsb97.gif
