9.2.3 Application Curves

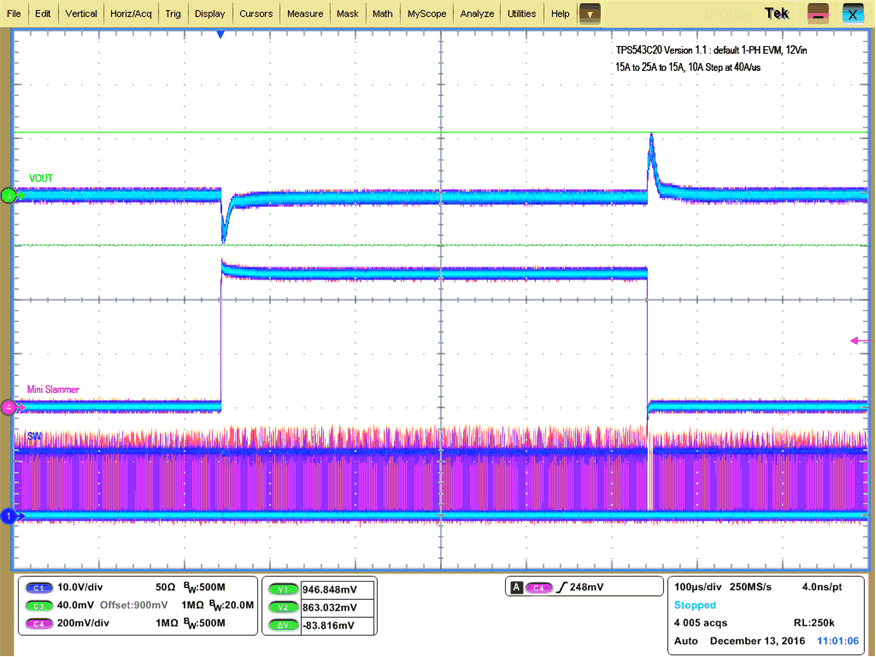

TPS543C20A TPS543C20_UserGuide_Figure_7.gifFigure 27. Transient Response of 0.9-V Output at 12-VIN,
Transient is 15 A to 25 A to 15 A,
the Step is 10 A at 40 A/μs

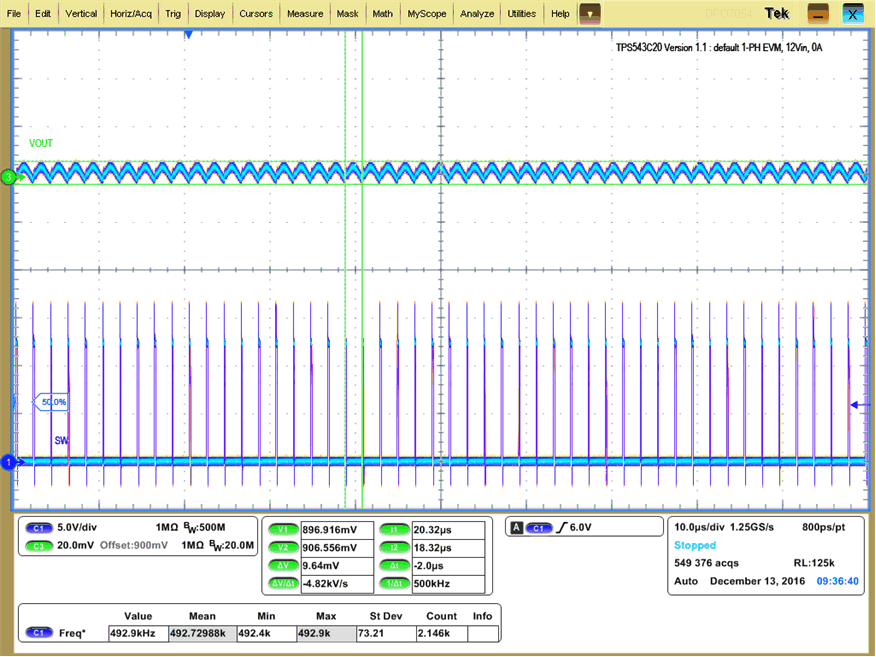

TPS543C20A TPS543C20_UserGuide_Figure_9.gifFigure 29. Output Ripple and SW Node of 0.9-V Output at 12-VIN, 0-A Output

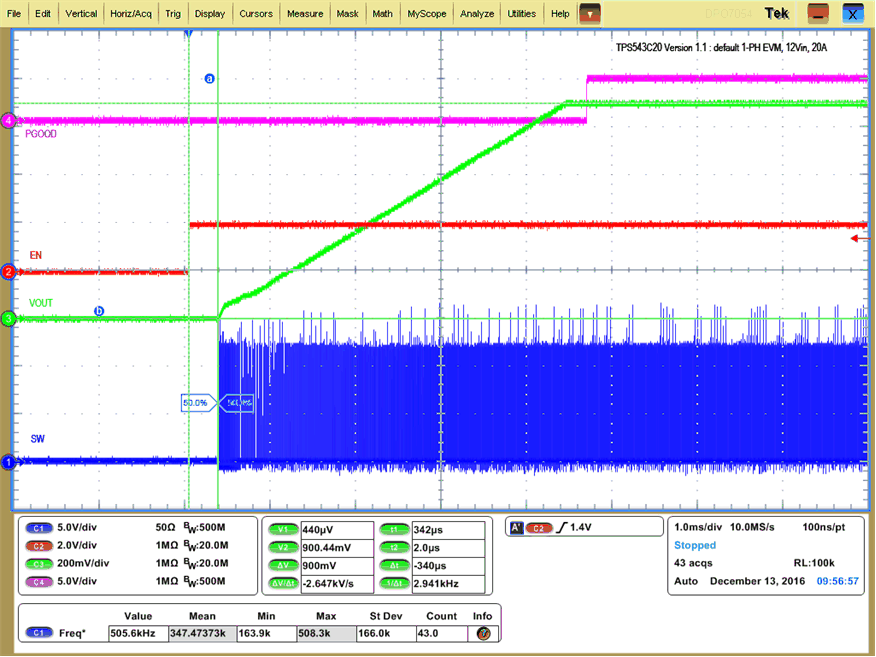

TPS543C20A TPS543C20_UserGuide_Figure_11.gifFigure 31. 0.5-V Prebias start up from Control, 0.9-V Output at 12-VIN, 20-A Output
TPS543C20A TPS543C20_UserGuide_Figure_8.gifFigure 28. Output Ripple and SW Node of 0.9-V Output at 12-VIN, -A Output

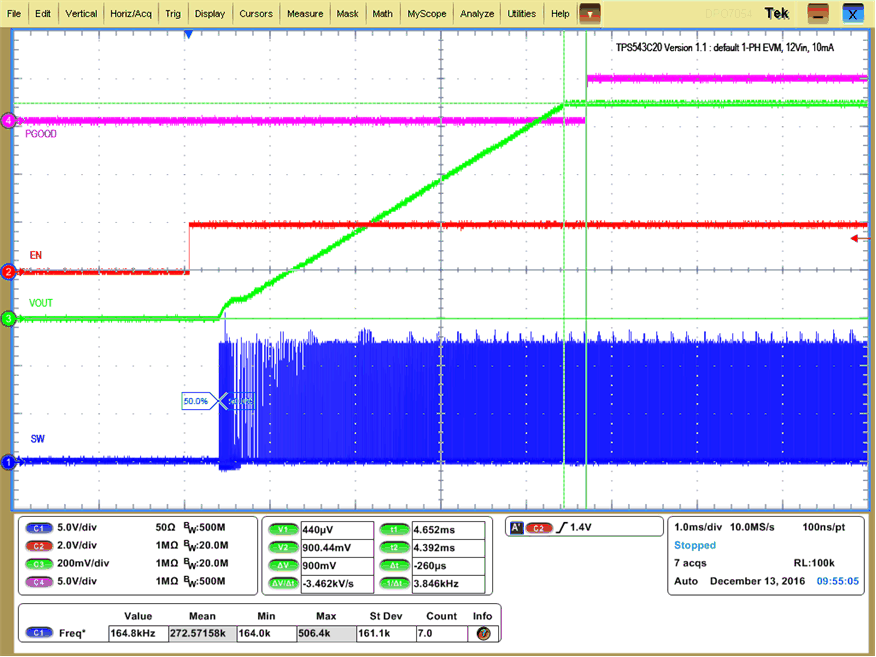

TPS543C20A TPS543C20_UserGuide_Figure_10.gifFigure 30. Start up from Control, 0.9-V Output at 12-VIN, 10-mA Output

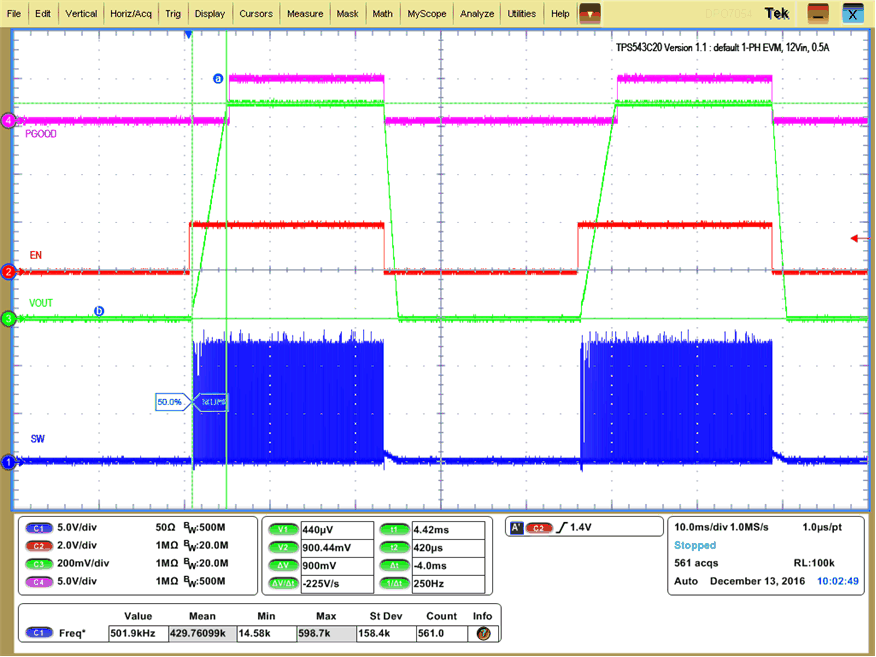

TPS543C20A TPS543C20_UserGuide_Figure_12.gifFigure 32. Output Voltage Start-up and Shutdown, 0.9-V Output at 12-VIN, 0.5-A Output
