Power-Over-Coax

The DS90UB964-Q1 is designed to support the Power-over-Coax (PoC) method of powering remote sensor systems. With this method, the power is delivered over the same medium (a coaxial cable) used for high-speed digital video data and bidirectional control and diagnostics data transmission. The method uses passive networks or filters that isolate the transmission line from the loading of the DC-DC regulator circuits and their connecting power traces on both sides of the link as shown in Figure 6-1.

GUID-DFEB1749-46A9-47D6-8B25-B3A6C416BE16-low.gifFigure 6-1 Power-over-Coax (PoC) System Diagram

The PoC networks' impedance of ≥ 1kΩ over a specific frequency band is recommended to isolate the transmission line from the loading of the regulator circuits provided good layout practices are followed and the PCB return loss requirements given in Table 6-2 are met. Higher PoC network impedance contributes to favorable insertion loss and return loss characteristics in the high-speed channel. The lower limit of the frequency band is defined as ½ of the frequency of the back channel, fBC. The upper limit of the frequency band is the frequency of the forward high-speed channel, fFC. However, the main criteria that need to be met in the total high-speed channel, which consists of a serializer PCB, a deserializer PCB, and a cable, are the insertion loss and return loss limits defined in the Total Channel Requirements (see Section 5.4.6.1), while the system is under maximum current load and extreme temperature conditions.

Figure 6-2 shows a PoC network recommended for a "2G" FPD-Link III consisting of a DS90UB913A-Q1 or DS90UB933-Q1 serializer and DS90UB964-Q1 with the bidirectional channel operating at the data rate of 2.5Mbps (½ fBC = 1.25MHz) and the forward channel operating at the data rate as high as 1.87Gbps (fFC ≈ 1GHz).

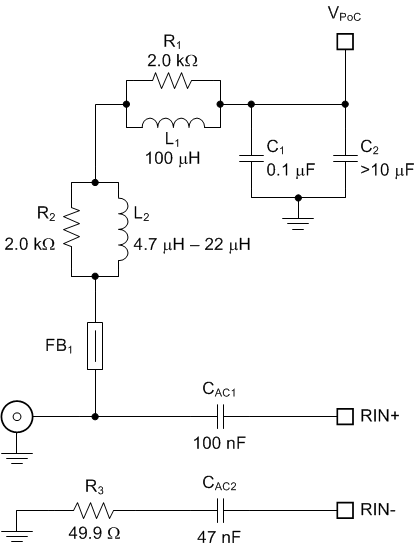

GUID-4E201930-1C72-4F70-8CF9-82FDDD049746-low.gifFigure 6-2 Example Recommended PoC Network for a "2G" FPD-Link III

Table 6-1 lists essential components for this particular PoC network.

Table 6-1 Suggested Components for a "2G" FPD-Link III PoC Network
CountRef DesDescriptionPart NumberMFR
1L1Inductor, 100µH, 0.310Ω max, 710mA MIN (Isat, Itemp)
7.2MHz SRF typ, 6.6mm × 6.6mm, AEC-Q200
MSS7341-104MLCoilcraft
Inductor, 100µH, 0.606Ω max, 750mAMIN (Isat, Itemp)
7.2MHz SRF typ, 6.0mm × 6.0mm, AEC-Q200
NRS6045T101MMGKVTaiyo Yuden
1L2Inductor, 4.7µH, 0.350Ω max, 700mA MIN (Isat, Itemp)
160MHz SRF typ, 3.8mm × 3.8mm, AEC-Q200
1008PS-472KLCoilcraft
Inductor, 4.7µH, 0.130Ω max, 830mA MIN (Isat, Itemp),
70MHz SRF typ, 3.2mm × 2.5mm, General Purpose
CBC3225T4R7MRVTaiyo Yuden
Inductor, 10µH, 0.288Ω max, 530mA MIN (Isat, Itemp)
30MHz SRF min, 3mm × 3mm, AEC-Q200
LQH3NPZ100MJRMurata
1FB1Ferrite Bead, 1500kΩ at 1GHz, 0.5Ω max at DC
500mA at 85°C, SM0603, General Purpose
BLM18HE152SN1Murata
Ferrite Bead, 1500kΩ at 1GHz, 0.5Ω max at DC
500mA at 85°C, SM0603, AEC-Q200
BLM18HE152SZ1Murata

Application report Sending Power over Coax in DS90UB913A Designs (SNLA224) discusses and defines the PoC networks in more detail.

In addition to the PoC network components selection, the placement and layout play a critical role as well.

  • Place the smallest component, typically a ferrite bead or a chip inductor, as close to the connector as possible. Route the high-speed trace through one of the ferrite bead pads to avoid stubs.
  • Use the smallest component pads as allowed by manufacturer's design rules. Add anti-pads in the inner planes below the component pads to minimize impedance drop.
  • Consult with connector manufacturer for optimized connector footprint.
  • Use coupled 100Ω differential signal traces from the device pins to the AC-coupling caps. Use 50Ω single-ended traces from the AC-coupling capacitors to the connector.
  • Terminate the inverting signal traces close to the connectors with standard 49.9Ω resistors.

The suggested characteristics for single-ended PCB traces (microstrips or striplines) for serializer or deserializer boards are detailed in Table 6-2. The effects of the PoC networks need to be accounted for when testing the traces for compliance to the suggested limits.

Table 6-2 Suggested Characteristics for Single-Ended PCB Traces With Attached PoC Networks
PARAMETERMINTYPMAXUNIT
LtraceSingle-ended PCB trace length from the device pin to the connector pin5cm
ZtraceSingle-ended PCB trace characteristic impedance455055Ω
ZconConnector (mounted) characteristic impedance405062.5Ω
RLReturn Loss, S11½ fBC < f < 0.1GHz–20dB
0.1GHz < f < 1GHz (f in GHz)–12 + 8 × log(f)dB
1GHz < f < fFC–12dB
ILInsertion Loss, S12f < 0.5GHz–0.35dB
f = 1GHz–0.6dB

The VPOC noise must be kept to 10mVp-p or lower on the source / deserializer side of the system. The VPOC fluctuations on the serializer side, caused by the sensor's transient current draw and the DC resistance of cables and PoC components, must be kept at minimum as well. Increasing the VPOC voltage and adding extra decoupling capacitance (> 10µF) help reduce the amplitude and slew rate of the VPOC fluctuations.
