Application Curves

TPS54200 TPS54201 Fig21_efficiency_SLUSCO8.gif
Figure 22. Efficiency
TPS54200 TPS54201 fig23_lusco8.gif
CH2: SW CH3: LED current CH4: Inductor current
(AC-coupled)
Figure 24. LED Current Ripple at 100% PWM Duty Cycle
TPS54200 TPS54201 fig25_lusco8.gif
CH1: PWM CH3: Inductor current CH4: LED current
Figure 26. LED Current Transient as PWM Duty Cycle
Changes From 1% to 99%
TPS54200 TPS54201 fig27_lusco8.gif
CH1: PWM CH3: Inductor current CH4: LED current
Figure 28. LED Current Transient as PWM Duty Cycle
Changes From 99% to 1%
TPS54200 TPS54201 fig29_lusco8.gif
CH1: PWM CH2: SW CH3: VOUT CH4: LED current;
Figure 30. Start-Up at 1% PWM Duty Cycle and 50 kHz
TPS54200 TPS54201 fig31_lusco8.gif
CH1: PWM CH2: SW CH3: VOUT CH4: LED current
Figure 32. Start-Up at 100% PWM Duty Cycle
TPS54200 TPS54201 fig33_lusco8.gif
CH1: VOUT CH2: SW CH3: FB CH4: Inductor current
Figure 34. LED Short Protection (100% PWM Duty Cycle) of TPS54200
TPS54200 TPS54201 fig34_lusco8.gif
CH1: VOUT CH2: SW CH3: FB CH4: Inductor current
Figure 36. LED Open Protection (100% PWM Duty Cycle) of TPS54200
TPS54200 TPS54201 fig35_lusco8.gif
CH1: VOUT CH2: SW CH3: FB CH4:Inductor current
Figure 38. Sense Resistor Short Protection (100% PWM Duty Cycle) of TPS54200
TPS54200 TPS54201 fig22_lusco8.gif
CH2: SW CH3: LED current CH4: Inductor current
(AC-coupled)
Figure 23. LED Current Ripple at 1% PWM Duty Cycle
TPS54200 TPS54201 fig24_lusco8.gif
CH1: VVIN CH2: SW CH4: Inductor current
(AC-coupled)
Figure 25. Input Voltage Ripple at 100% PWM Duty Cycle
TPS54200 TPS54201 fig26_lusco8.gif
CH1: PWM CH3: Inductor current CH4: LED current
Figure 27. LED Current Transient as PWM Duty Cycle
Changes From 50% to 99%
TPS54200 TPS54201 Fig28_LED_Current_vs_PWM_SLUSCO8.gif
Figure 29. LED Current vs PWM Duty Cycle
TPS54200 TPS54201 fig30_lusco8.gif
CH1: PWM CH2: SW CH3: VOUT CH4: LED current;
Figure 31. Shutdown at 1% PWM Duty Cycle and 50 kHz
TPS54200 TPS54201 fig32_lusco8.gif
CH1: PWM CH2: SW CH3: VOUT CH4: LED current
Figure 33. Shutdown at 100% PWM Duty Cycle

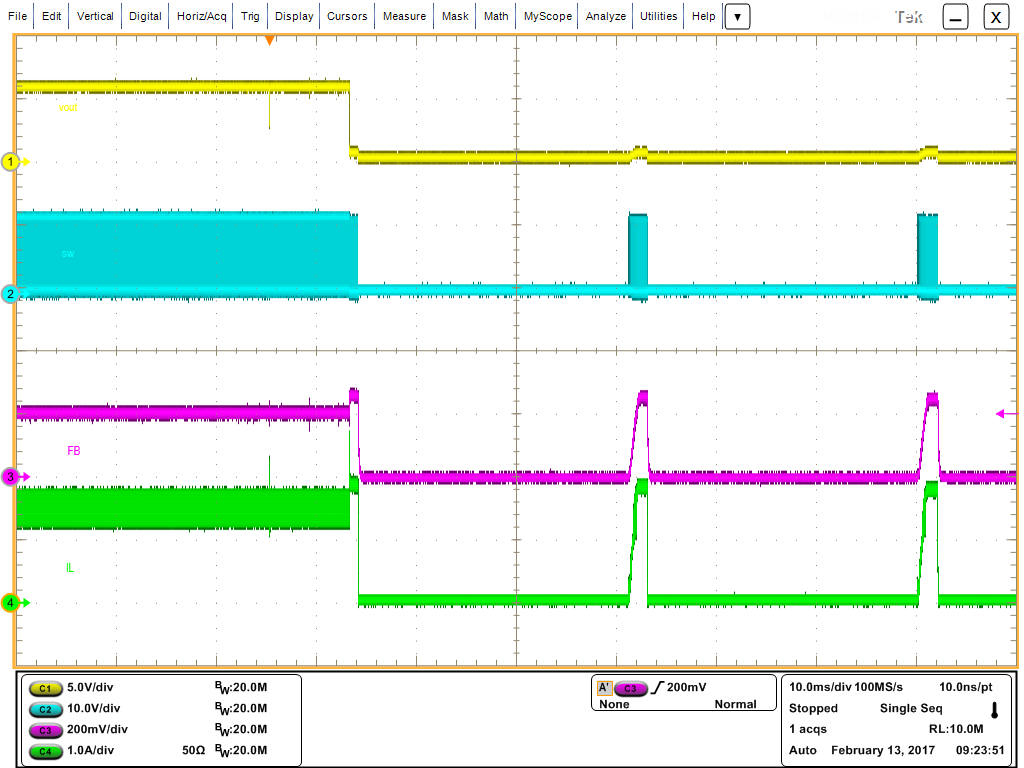

TPS54200 TPS54201 LED short protection 54201.png
CH1: VOUT CH2: SW CH3: FB CH4: Inductor current
Figure 35. LED Short Protection (100% PWM Duty Cycle) of TPS54201
TPS54200 TPS54201 LED open protection 54201.png
CH1: VOUT CH2: SW CH3: FB CH4: Inductor current
Figure 37. LED Open Protection (100% PWM Duty Cycle) of TPS54201
TPS54200 TPS54201 Rsense Short protection 54201.png
CH1: VOUT CH2: SW CH3: FB CH4: Inductor current
Figure 39. Sense-Resistor Short Protection (100% PWM Duty Cycle) of TPS54201
