Typical Characteristics, SN6505B

SN6505B + Wurth 750315371
Figure 6-11 Output Voltage vs Load Current
SN6505B + Wurth 760390011 VCC = 3.3 V
Figure 6-13 Output Voltage vs Load Current
SN6505B + Wurth 760390012 VCC = 5 V
Figure 6-15 Output Voltage vs Load Current
SN6505B + Wurth 760390013 VCC = 3.3 V
Figure 6-17 Output Voltage vs Load Current
SN6505B + Wurth 760390014 VCC = 3.3 V
Figure 6-19 Output Voltage vs Load Current
SN6505B + Wurth 760390014 VCC = 5 V
Figure 6-21 Output Voltage vs Load Current
SN6505B + Wurth 760390015 VCC = 3.3 V
Figure 6-23 Output Voltage vs Load Current
SN6505B + Wurth 750316028 VCC = 3.3 V
Figure 6-25 Output Voltage vs Load Current
SN6505B + Wurth 750316029 VCC = 3.3 V
Figure 6-27 Output Voltage vs Load Current
SN6505B + Wurth 7503160030 VCC = 5 V
Figure 6-29 Output Voltage vs Load Current
GUID-20230707-SS0I-KGPD-DHPF-KZ82HZKF8RLL-low.svg
SN6505B + Wurth 750342879 VCC= 5V
Figure 6-31 Output Voltage vs Load Current
GUID-20230707-SS0I-G5F3-V5H3-BL3M2K1JCX0C-low.svg
SN6505B + Wurth 750320340 VCC= 5V
Figure 6-33 Output Voltage vs Load Current
GUID-20230707-SS0I-DQWN-T8GJ-5DZKHZL9BTF9-low.svg
SN6505B + Wurth 78931812518 VCC= 5V
Figure 6-35 Output Voltage vs Load Current
GUID-20230707-SS0I-NRXN-7VNV-0R2JW1WHWW5C-low.svg
SN6505B + Wurth 750343725 VCC= 5V
Figure 6-37 Output Voltage vs Load Current
GUID-20230707-SS0I-VS1R-DLNB-1KZ1RD0QHHZN-low.svg
SN6505B + Wurth 78931812523 VCC= 5V
Figure 6-39 Output Voltage vs Load Current
GUID-20230707-SS0I-T4QS-KP2C-1VDSN0K9CQXL-low.svg
SN6505B + Wurth 78931812512 VCC= 5V
Figure 6-41 Output Voltage vs Load Current
GUID-20230707-SS0I-XSN4-G2VK-B2LJJZFPTNGG-low.svg
SN6505B + Wurth 78931812515 VCC= 5V
Figure 6-43 Output Voltage vs Load Current
Figure 6-45 Frequency vs Free-Air Temperature
Figure 6-47 Scope Capture of SN6505 Switching from External to Internal Clock
SN6505B + Wurth 750315371

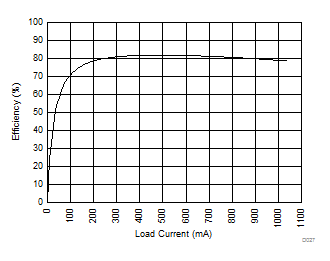

Figure 6-12 Efficiency vs Load Current
SN6505B + Wurth 760390011 VCC = 3.3 V
Figure 6-14 Efficiency vs Load Current
SN6505B + Wurth 760390012 VCC = 5 V
Figure 6-16 Efficiency vs Load Current
SN6505B + Wurth 760390013 VCC = 3.3 V
Figure 6-18 Efficiency vs Load Current
SN6505B + Wurth 760390014 VCC = 3.3 V
Figure 6-20 Efficiency vs Load Current
SN6505B + Wurth 760390014 VCC = 5 V
Figure 6-22 Efficiency vs Load Current
SN6505B + Wurth 760390015 VCC = 3.3 V
Figure 6-24 Efficiency vs Load Current
SN6505B + Wurth 750316028 VCC = 3.3 V
Figure 6-26 Efficiency vs Load Current
SN6505B + Wurth 750316029 VCC = 3.3 V
Figure 6-28 Efficiency vs Load Current
SN6505B + Wurth 7503160030 VCC = 5 V
Figure 6-30 Efficiency vs Load Current
GUID-20230707-SS0I-CMZS-FKC7-VC50J9BX3FX0-low.svg
SN6505B + Wurth 750342879 VCC= 5V
Figure 6-32 Efficiency vs Load Current
GUID-20230707-SS0I-XSNT-MHF3-Q8FQKSNKDJRC-low.svg
SN6505B + Wurth 750320340 VCC= 5V
Figure 6-34 Efficiency vs Load Current
GUID-20230707-SS0I-QQXH-MNHZ-KVFHPJ9RQHNK-low.svg
SN6505B + Wurth 78931812518 VCC= 5V
Figure 6-36 Efficiency vs Load Current
GUID-20230707-SS0I-TM0F-MKRB-PP4WFFDJ3FXG-low.svg
SN6505B + Wurth 750343725 VCC= 5V
Figure 6-38 Efficiency vs Load Current
GUID-20230707-SS0I-R4DP-PTDM-HRPNRWPV5WVC-low.svg
SN6505B + Wurth 78931812523 VCC= 5V
Figure 6-40 Efficiency vs Load Current
GUID-20230707-SS0I-CNVZ-NQSG-PFSR0X84R5BK-low.svg
SN6505B + Wurth 78931812512 VCC= 5V
Figure 6-42 Efficiency vs Load Current
GUID-20230707-SS0I-XZVS-9DXH-8RCDMVPSLPMQ-low.svg
SN6505B + Wurth 78931812515 VCC= 5V
Figure 6-44 Efficiency vs Load Current
Figure 6-46 Current vs External Frequency
