7.3.2.2 Analog Input: Single-Ended and Pseudo-Differential Configurations

The ADS8353-Q1 can support single-ended or pseudo-differential input configurations.

For supporting single-ended inputs, B7 in the configuration register (CFR.B7) must be set to 0 (CFR.B7 = 0) and AINM_A and AINM_B must be externally connected to GND.

For supporting pseudo-differential inputs, CFR.B7 must be set to 1 (CFR.B7 = 1) and AINM_A and AINM_B must be externally connected to FSR_ADC_A / 2 and FSR_ADC_B / 2, respectively. CFR.B7 is common to both ADCs.

The CFR.B9 and CFR.B7 settings can be combined as shown in Table 7-1 to select the desired input configuration.

Table 7-1 Input Configurations
INPUT RANGE SELECTION AINM SELECTION CONNECTION DIAGRAM
CFR.B9 = 0
(FSR_ADC_A = 0 to VREF_A)
(FSR_ADC_B = 0 to VREF_B)		 CFR.B7 = 0
(AINM_A = GND)

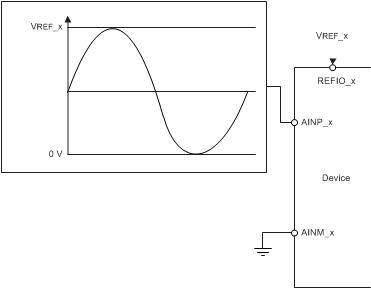

(AINM_B = GND)		 GUID-9C6632BF-1CF6-4817-9A3D-4889D44E4406-low.gif
CFR.B9 = 1
(FSR_ADC_A = 0 to 2 x VREF_A)
(FSR_ADC_B = 0 to 2 x VREF_B)		 CFR.B7 = 0
(AINM_A = GND)
(AINM_B = GND)		 GUID-69DD496D-D229-4D47-B994-1A3503764C8B-low.gif
CFR.B9 = 0
(FSR_ADC_A = VREF_A)
(FSR_ADC_B = VREF_B)		 CFR.B7 = 1
(AINM_A = VREF_A/2)

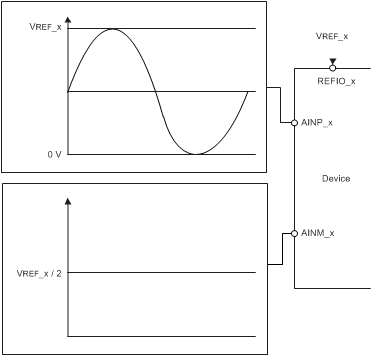

(AINM_B = VREF_B/2)		 GUID-F90B01C0-4EA0-4C70-B360-304E96E412D3-low.gif
CFR.B9 = 1
(FSR_ADC_A = 2 x VREF_A)
(FSR_ADC_B = 2 x VREF_B)		 CFR.B7 = 1
(AINM_A = VREF_A)
(AINM_B = VREF_B)		 GUID-4C5BE1E5-40B0-4B17-85E8-6E95AF4B7171-low.gif
