DAC differential non-linearity (DNL)

Differential Non-Linearity (DNL) describes the difference between measured versus ideal step sizes between sequential codes. The DAC manual will typically express only the minimum and maximum deviations for the linear region of the transfer function. DNL performance is typically at its worst near the power supply rails due to internal component saturation. Most modern DACs are monotonic, meaning that the output voltage will not decrease when the input code is incremented. Figure 9-6 shows both monotonic and non-monotonic DNL.

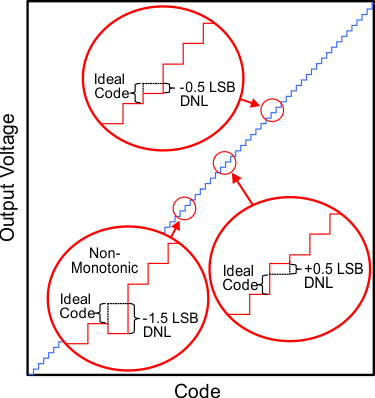

GUID-20210830-SS0I-2L0G-R2WD-GVHB8DT69W41-low.gif Figure 9-6 DAC DNL.
