Specification

The DEM-PCM2912AEVM has a USB-A connector that allows plug-and-play evaluation of the PCM2912A device. The EVM has some hardware interfacing availability while programming is done via USB from the host computer.

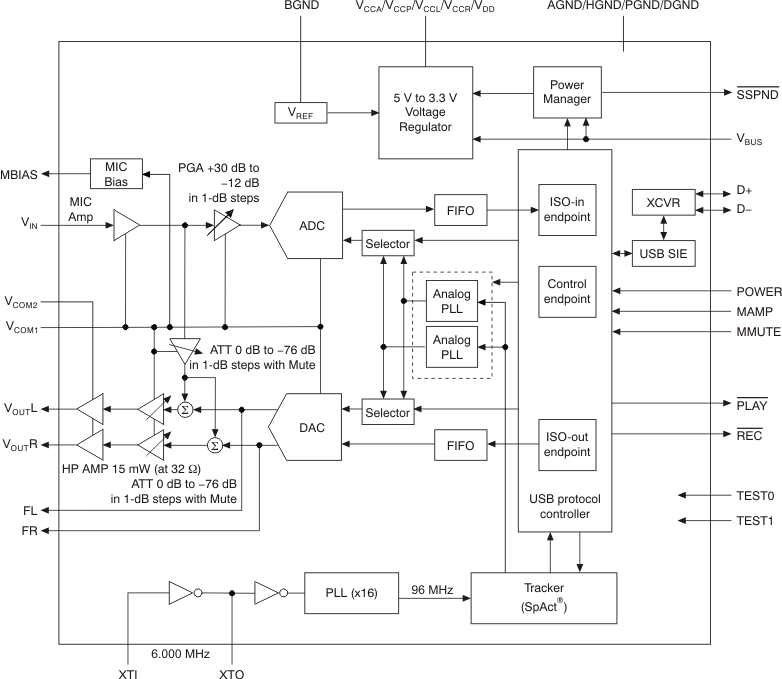

Figure 2-1 illustrates the functional block diagram of the DEM-PCM2912A EVM.

GUID-292926D8-1E4D-42B4-A3C2-A24749341916-low.gif Figure 1-1 DEM-PCM2912A EVM Functional Block Diagram
