Parameter Measurement Information

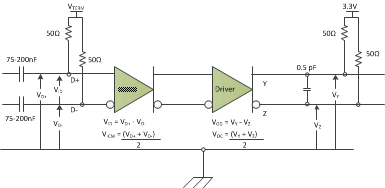

SN65DP159 SN75DP159 tim_TMDS_main_SLLSEJ2.gifFigure 4. TMDS Main Link Test Circuit
SN65DP159 SN75DP159 tim_IO_SLLSEJ2.gifFigure 5. Input and Output Timing Measurements
SN65DP159 SN75DP159 tim_HDMI_DVI_sink_SLLSEJ2.gifFigure 6. HDMI and DVI Sink TMDS Output Skew Measurements
SN65DP159 SN75DP159 tim_TMDS_main_mode_SLLSEJ2.gifFigure 7. TMDS Main Link Common Mode Measurements
SN65DP159 SN75DP159 sllsej2_figure7.gifFigure 8. Output Differential Waveform 0 dB De-Emphasis
SN65DP159 SN75DP159 PRE_SEL_L_sllsej2.gifFigure 9. PRE_SEL = L for –2-dB De-Emphasis
SN65DP159 SN75DP159 alt_TMDS_output_2_SLLSEJ2.gif
The FR4 trace between TTP1 and TTP2 is designed to emulate 1-8” of FR4, AC coupling cap, connector and another 1-2” of FR4. Trace width – 4 mils. 100-Ω differential impedance.
All jitter is measured at a BER of 10-9.
Residual jitter reflects the total jitter measured at TTP4 minus the jitter measured at TTP1.
AVCC = 3.3-V
RT = 50-Ω
The input signal from parallel bit error rate tester (BERT) does not have any pre-emphasis. Refer to Recommended Operating Conditions.
Figure 10. TMDS Output Jitter Measurement
SN65DP159 SN75DP159 gr_input_eyemask_2_SLLSEJ2.gifFigure 11. Post EQ Input Eye Mask at TTP2_EQ
TMDS DATA RATE (Gbps) H (Tbit) V (mV)
3.4 < DR < 3.712 0.6 335
3.712 < DR < 5.94 –0.0332Rbit2 + 0.2312Rbit + 0.1998 –19.66Rbit2 + 106.74Rbit + 209.58
5.94 ≤ DR ≤ 6.0 0.4 150
Figure 12. Output Eye Mask at TTP4_EQ
SN65DP159 SN75DP159 cir_HPD_test_SLLSEJ2.gifFigure 13. HPD Test Circuit
SN65DP159 SN75DP159 tim_HPD_1_SLLSEJ2.gifFigure 14. HPD Timing Diagram Number 1
SN65DP159 SN75DP159 tim_HPD_logic_to_SLLSEJ2.gifFigure 15. HPD Logic Disconnect Timeout
SN65DP159 SN75DP159 tim_start_stop_cond_SLLSEJ2.gifFigure 16. Start and Stop Condition Timing
SN65DP159 SN75DP159 tim_SCL_SDA_SLLSEJ2.gifFigure 17. SCL and SDA Timing
SN65DP159 SN75DP159 tim_DDC_source2sink_SLLSEJ2.gifFigure 18. DDC Propagation Delay – Source to Sink
SN65DP159 SN75DP159 tim_DDC_sink2source_SLLSEJ2.gifFigure 19. DDC Propagation Delay – Sink to Source
