Typical Characteristics, SN6505A

SN6505A + Wurth 750315240

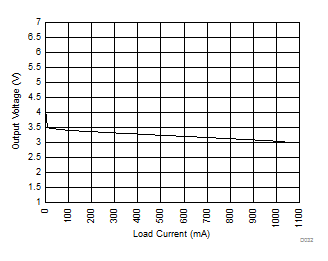

Figure 6-1 Output Voltage vs Load Current
SN6505A + Wurth 750316031VCC = 3.3 V

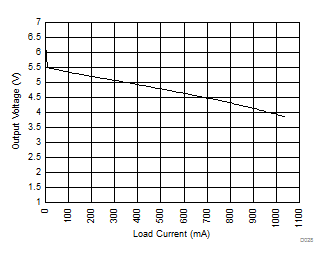

Figure 6-3 Output Voltage vs Load Current
SN6505A + Wurth 750316032VCC = 3.3 V

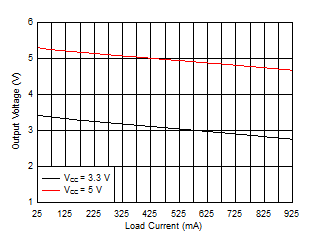

Figure 6-5 Output Voltage vs Load Current
SN6505A + Wurth 750316033VCC = 5 V
Figure 6-7 Output Voltage vs Load Current
Figure 6-9 Frequency vs Free-Air Temperature
SN6505A + Wurth 750315240
Figure 6-2 Efficiency vs Load Current
SN6505A + Wurth 750316031VCC = 3.3 V
Figure 6-4 Efficiency vs Load Current
SN6505A + Wurth 750316032VCC = 3.3 V
Figure 6-6 Efficiency vs Load Current
SN6505A + Wurth 750316033VCC = 5 V
Figure 6-8 Efficiency vs Load Current
Figure 6-10 Current vs External Frequency
