3.3.1 Motor Control Page

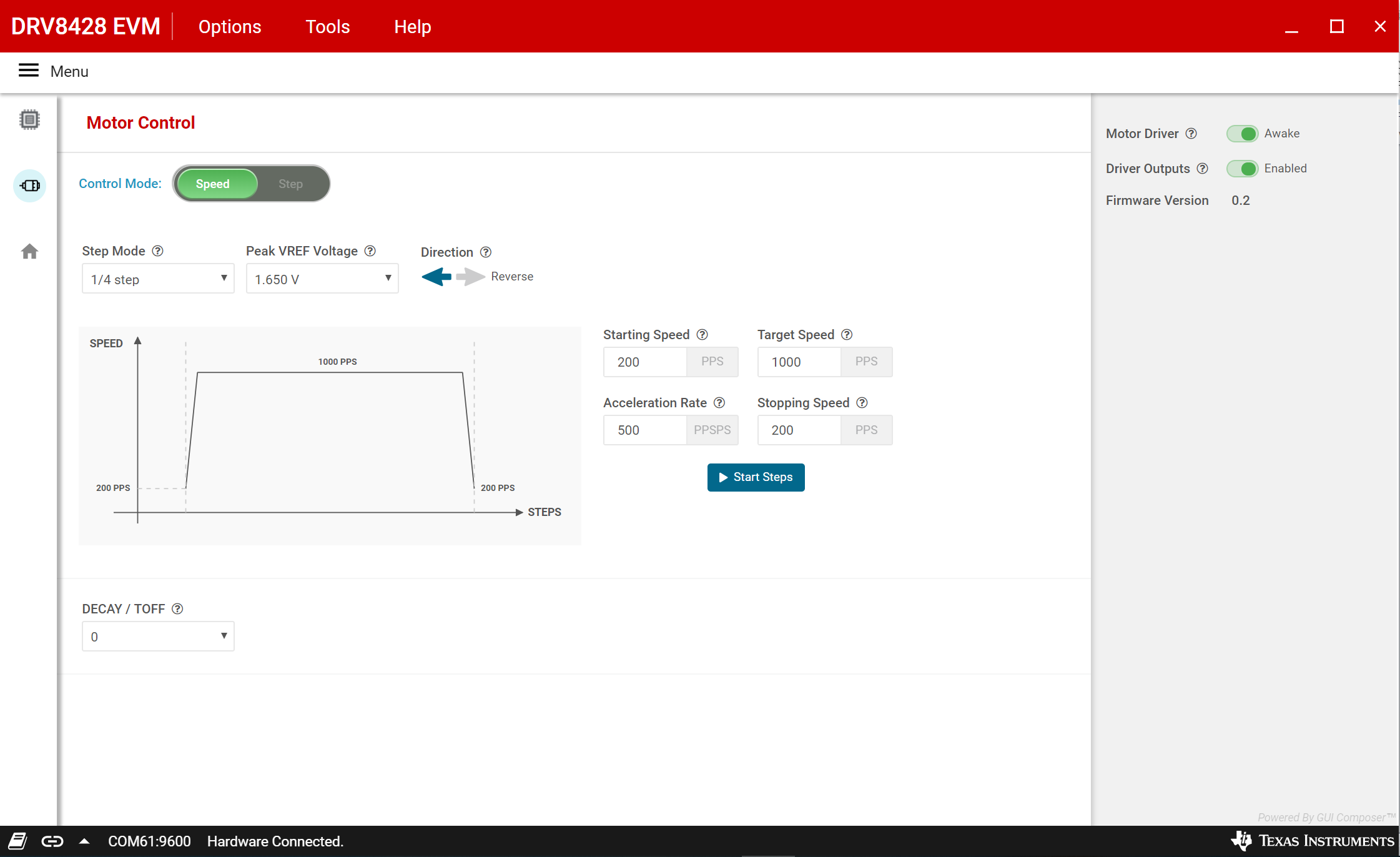

This page (shown in Figure 5) includes various controls to sleep/wake the driver and control the motor by configuring various parameters such as AVREF_VALt, control mode and so forth. Hovering over the (?) icon to the right of a control displays a brief description about the control.

DRV8428EEVM_GUI_motor control Page.pngFigure 5. DRV8428E EVM GUI (Motor Control Page)
