2.8 Input Voltage Ripple

Figure 2-11, Figure 2-12, and Figure 2-13 show the TPS568215EVM-762 input voltage ripple. The load currents are 10 mA, 700 mA and 8 A. VIN = 12 V. The ripple voltage is measured directly across TP1 and TP2.

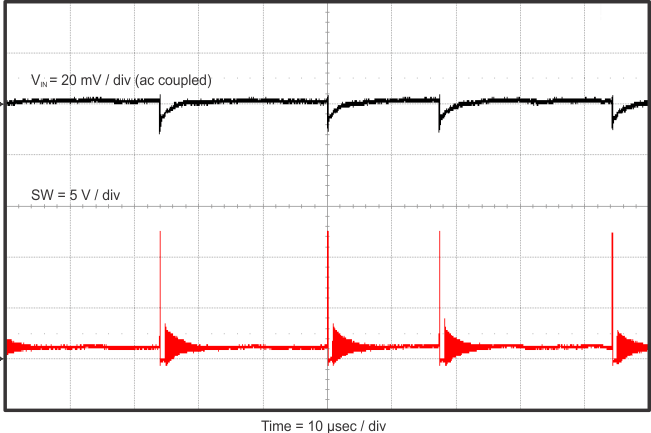

GUID-44F43A53-FCD0-496F-93B6-326FCB8039AE-low.gifFigure 2-11 TPS568215EVM-762 Input Ripple, 10-mA Load

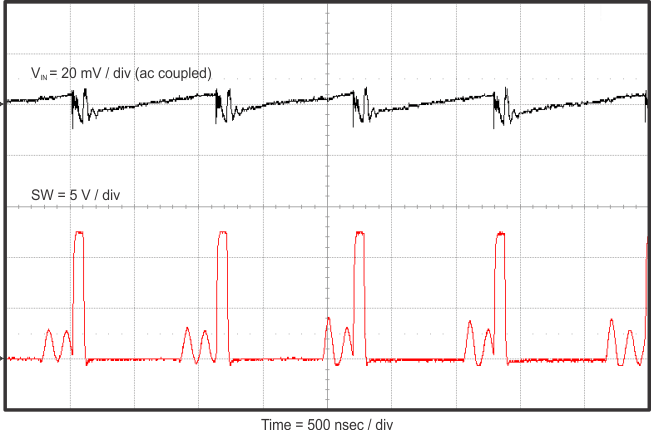

GUID-30C5856A-4C14-41FD-96C4-2DB4BCFF78E0-low.gifFigure 2-12 TPS568215EVM-762 Input Ripple, 700-mA Load

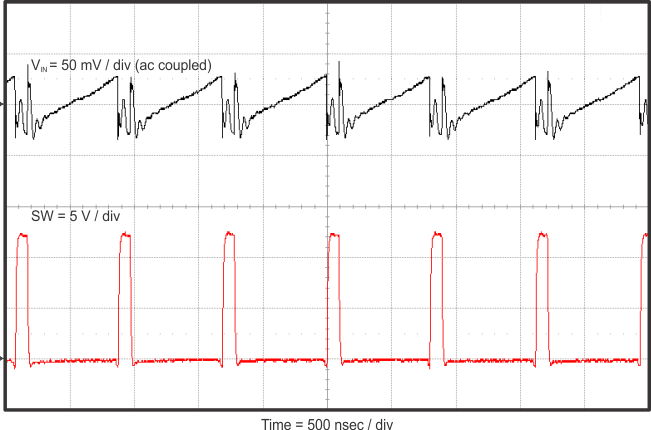

GUID-1ABE22B2-4B4D-4344-995D-A2D12B975528-low.gifFigure 2-13 TPS568215EVM-762 Input Ripple, 8-A Load
