7.7 Switching Characteristics

over operating ambient temperature range, DVDD = 2.7 V to 3.6 V, IOVDD = DVDD to 5.25 V, and
DOUT/DRDY load = 20 pF || 100 kΩ to DGND (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT(1)
tp(CSDO) Propagation delay time, CS falling edge to DOUT driven 0 25 ns
tp(SCDO) Propagation delay time, SCLK rising edge to valid new DOUT 3 30 ns
tp(CSDOZ) Propagation delay time, CS rising edge to DOUT high impedance 0 25 ns
tp(STDR) Propagation delay time, START/SYNC rising edge (or first SCLK rising edge of any command or data read) to DRDY rising edge 2 tCLK
tw(DRH) Pulse duration, DRDY high 24 tCLK
tp(GPIO) Propagation delay time, last SCLK falling edge of WREG command to GPIOx output valid 3 100 ns
SPI timeout per 8 bits(2) 215 tCLK
(1) tCLK = 1 / fCLK
(2) The SPI interface resets when an entire byte is not sent within the specified timeout time.
ADS114S06B ADS114S08B tim_req_bas683.gif

NOTE:

Single-byte communication is shown. Actual communication can be multiple bytes.
Figure 1. Serial Interface Timing Requirements
ADS114S06B ADS114S08B swi_char_bas683.gif

NOTE:

Single-byte communication is shown. Actual communication can be multiple bytes.
Figure 2. Serial Interface Switching Characteristics
ADS114S06B ADS114S08B ai_reset_timing_sbas660.gifFigure 3. RESET Pin and RESET Command Timing Requirements

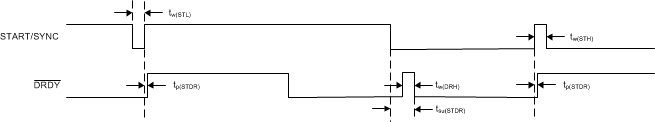

ADS114S06B ADS114S08B ai_start_pin_timing_sbas660.gifFigure 4. START/SYNC Pin Timing Requirements

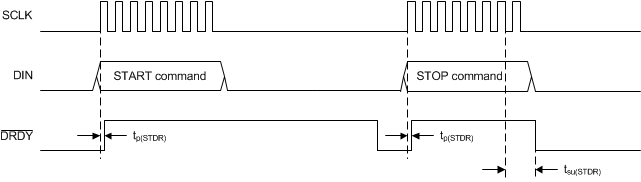

ADS114S06B ADS114S08B ai_start_command_timing_sbas660.gifFigure 5. START Command Timing Requirements

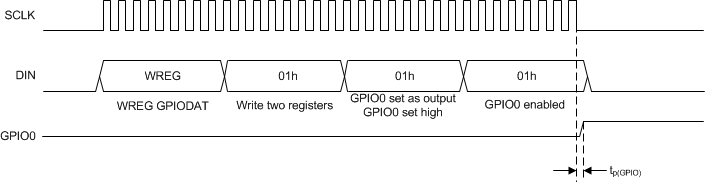

ADS114S06B ADS114S08B ai_gpio_timing_sbas660.gifFigure 6. GPIO Switching Characteristics
