11 Layout

11.1 Layout Guidelines

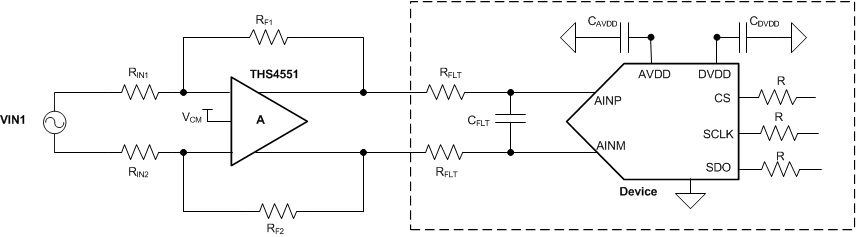

Figure 47 shows a typical connection diagram for the ADS7054.

ADS7054 layout_sch_diff_sbas769.gif Figure 47. Typical Connection Diagram

Figure 48 depicts a board layout example for the device for the typical connection diagram in Figure 47. The key considerations for layout are:

  • Use a solid ground plane underneath the device and partition the PCB into analog and digital sections
  • Avoid crossing digital lines with the analog signal path and keep the analog input signals and the reference input signals away from noise sources.
  • The power sources to the device must be clean and well-bypassed. Use CAVDD decoupling capacitors in close proximity to the analog (AVDD) power-supply pin.
  • Use a CDVDD decoupling capacitor close to the digital (DVDD) power-supply pin.
  • Avoid placing vias between the AVDD and DVDD pins and the bypass capacitors.
  • Connect the ground pin to the ground plane using a short, low-impedance path.
  • Place the charge kickback filter components close to the device.

Among ceramic surface-mount capacitors, COG (NPO) ceramic capacitors are recommended because these components provide the most stable electrical properties over voltage, frequency, and temperature changes.

11.2 Layout Example

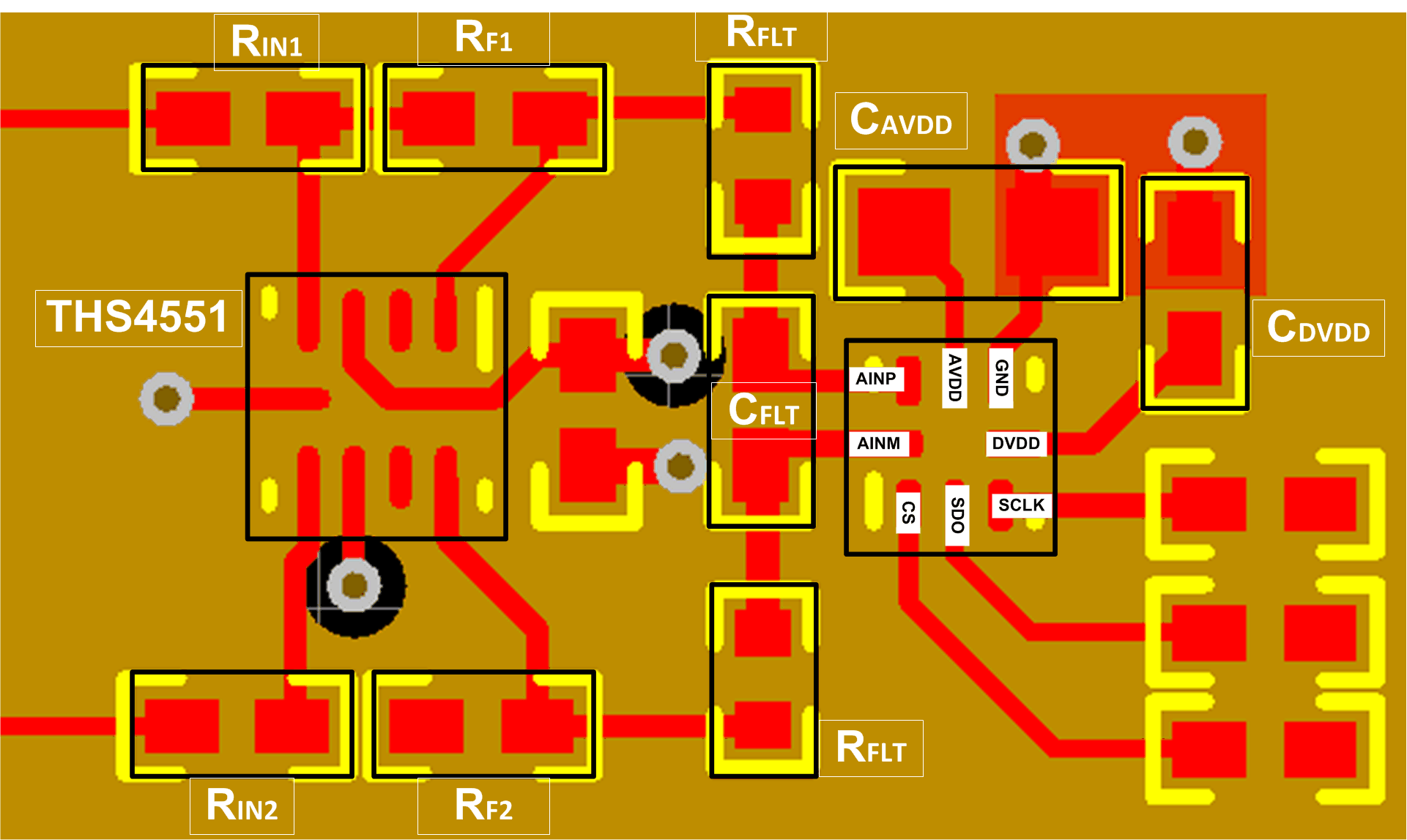

ADS7054 layout_layout_diff_sbas769.gif Figure 48. Example Layout
