7.16.6 ADC Performance

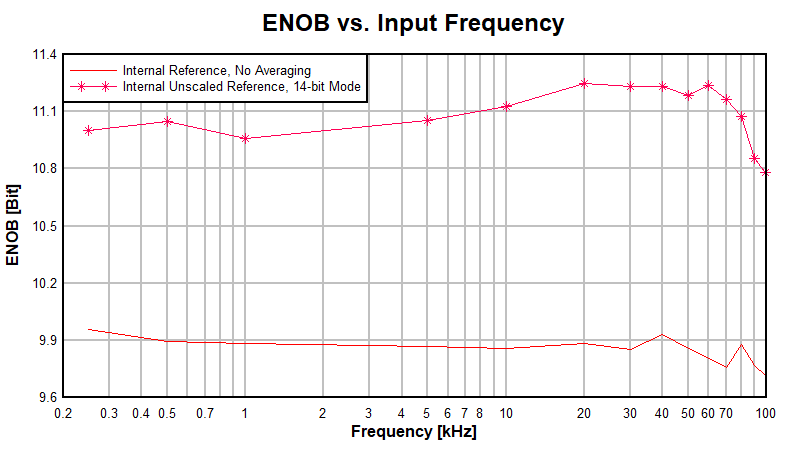

GUID-C1F0E3C7-0BEE-45A9-9923-3F82FD13A07F-low.gifFigure 7-22 ENOB vs. Input Frequency

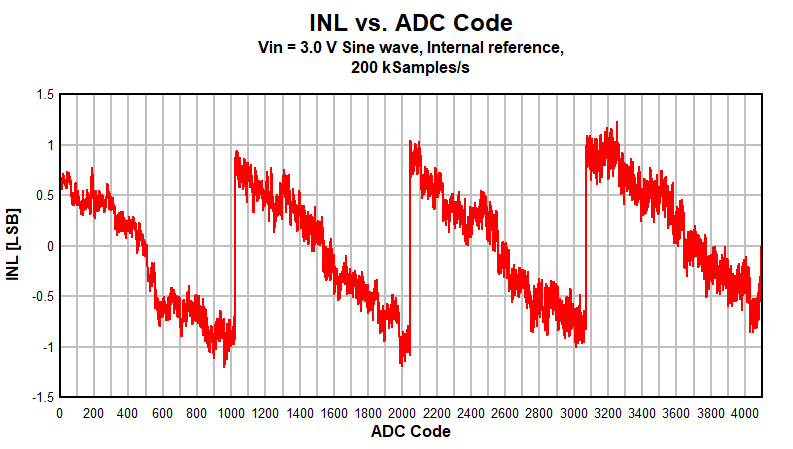

GUID-A4650AC0-3F26-4030-947F-C873434F1190-low.gifFigure 7-24 INL vs. ADC Code

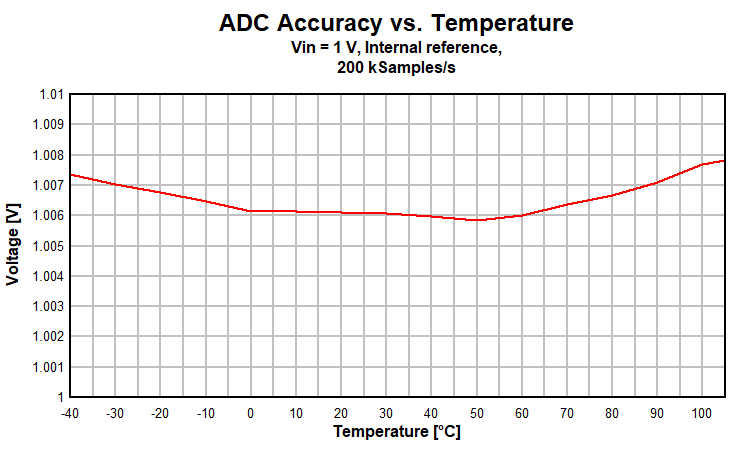

GUID-17DC94AE-B80B-48B5-A27F-23C80836C13F-low.gifFigure 7-26 ADC Accuracy vs. Temperature

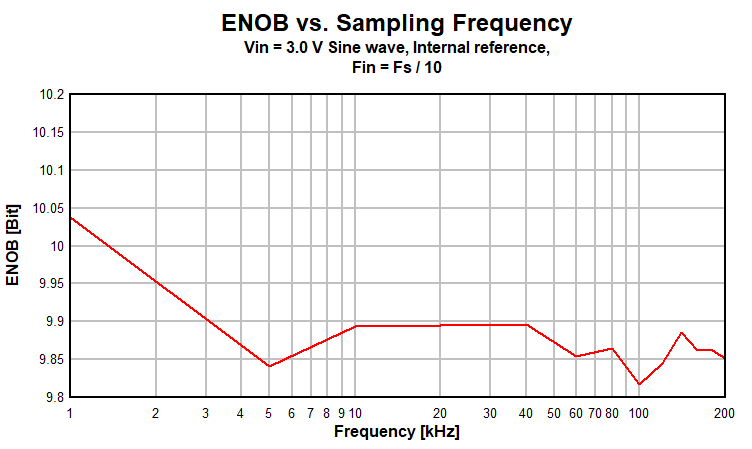

GUID-529AF285-9DD9-46EE-888B-AF3C0B524243-low.gifFigure 7-23 ENOB vs. Sampling Frequency
GUID-A8BBD733-9619-4F88-8B42-D028EE29175D-low.gifFigure 7-25 DNL vs. ADC Code

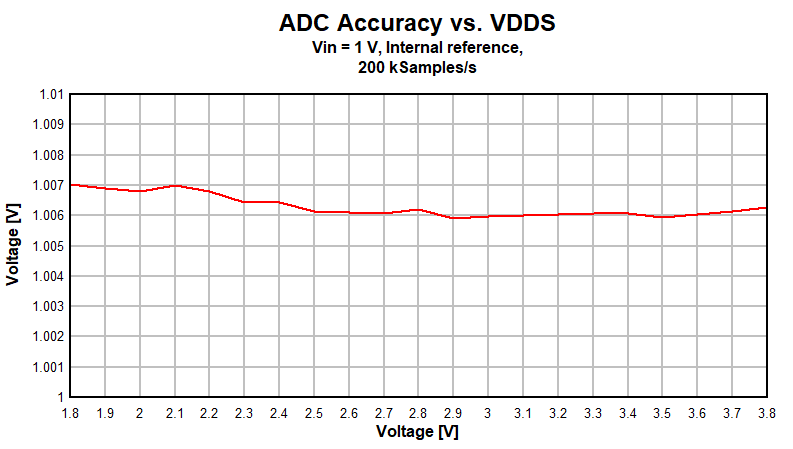

GUID-A70B90E9-C696-4253-8722-A43EB619796D-low.gifFigure 7-27 ADC Accuracy vs. Supply Voltage (VDDS)
