7.16.5 TX Performance

GUID-77F3EB46-B951-4981-BAC8-36FAC48CFC33-low.gifFigure 7-17 Output Power vs. Temperature (Bluetooth Low Energy 1 Mbps, 2.44 GHz)
GUID-85C9D281-C6D3-4F59-8D07-E2AA628872A8-low.gifFigure 7-19 Output Power vs. Supply Voltage (VDDS) (Bluetooth Low Energy 1 Mbps, 2.44 GHz)
GUID-00B4213E-7752-47C6-A505-FECE07117A90-low.gifFigure 7-21 Output Power vs. Frequency (Bluetooth Low Energy 1 Mbps, 2.44 GHz)

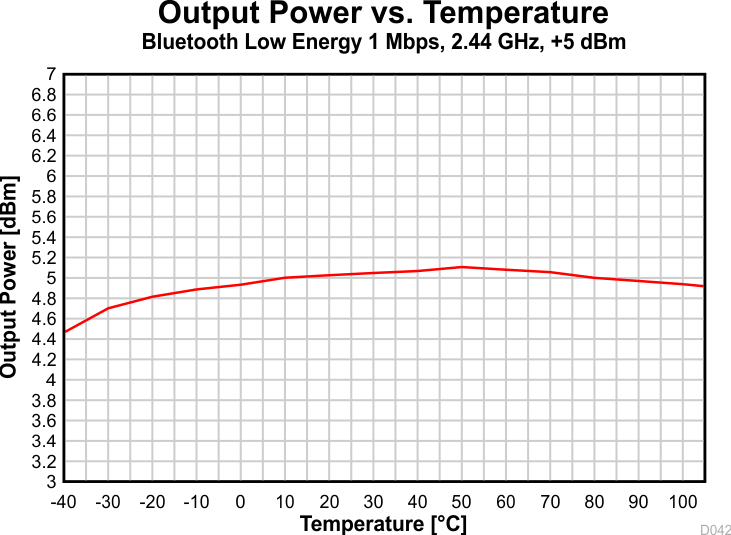

GUID-7AB0C567-C245-4A47-8D2F-A985FEA5927F-low.gifFigure 7-18 Output Power vs. Temperature (Bluetooth Low Energy 1 Mbps, 2.44 GHz, +5 dBm)
GUID-8D53C76B-6E9E-4AC6-84A2-B7EC0F4A5607-low.gifFigure 7-20 Output Power vs. Supply Voltage (VDDS) (Bluetooth Low Energy 1 Mbps, 2.44 GHz, +5 dBm)
GUID-383A178D-50E9-4B27-833D-94D501B47676-low.gifFigure 7-22 Output Power vs. Frequency (Bluetooth Low Energy 1 Mbps, 2.44 GHz, +5 dBm)
