3 Description

This 100V, 2mΩ, D2PAK (TO-263) NexFET™ power MOSFET is designed to minimize losses in power conversion applications.

CSD19536KTT Pin OutPin Out
Product Summary
TA = 25°C TYPICAL VALUE UNIT
VDS Drain-to-Source Voltage 100 V
Qg Gate Charge Total (10V) 118 nC
Qgd Gate Charge Gate-to-Drain 17 nC
RDS(on) Drain-to-Source On-Resistance VGS = 6V 2.2 mΩ
VGS = 10V 2
VGS(th) Threshold Voltage 2.5 V
Device Information
DEVICE(1)QTYMEDIAPACKAGESHIP
CSD19536KTT50013-Inch ReelD2PAK Plastic PackageTape and Reel
CSD19536KTTT50
(1) For all available packages, see the orderable addendum at the end of the data sheet.
Absolute Maximum Ratings
TA = 25°CVALUEUNIT
VDSDrain-to-Source Voltage100V
VGSGate-to-Source Voltage±20V
IDContinuous Drain Current
(Package Limited)		200A
Continuous Drain Current (Silicon Limited), TC = 25°C272
Continuous Drain Current (Silicon Limited), TC = 100°C192
IDMPulsed Drain Current(1)400A
PDPower Dissipation375W
TJ,
Tstg		Operating Junction,
Storage Temperature		–55 to 175°C
EASAvalanche Energy, Single Pulse
ID = 127A, L = 0.1mH, RG = 25Ω		806mJ
(1) Max RθJC = 0.4°C/W, Pulse duration ≤ 100µs, Duty cycle ≤ 1%.
CSD19536KTT RDS(on) vs VGS RDS(on) vs VGS

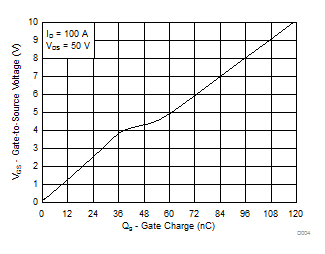

CSD19536KTT Gate Charge Gate Charge
