SLPS723 September   2020 CSD95410RRB

PRODUCTION DATA

  1. 1Features
  2. 2Applications
  3. 3Description
  4. 4Revision History
  5. 5Device and Documentation Support
    1. 5.1 Device Support
      1. 5.1.1 Third-Party Products Disclaimer
    2. 5.2 Documentation Support
    3. 5.3 Receiving Notification of Documentation Updates
    4. 5.4 Support Resources
    5. 5.5 Trademarks
    6. 5.6 Electrostatic Discharge Caution
    7. 5.7 Glossary
  6. 6Mechanical, Packaging, and Orderable Information
    1. 6.1 Mechanical Drawing
    2. 6.2 Recommended PCB Land Pattern
    3. 6.3 Recommended Stencil Opening
    4. 6.4 Alternate Industry Standard Compatible PCB Land Pattern
    5. 6.5 Alternate Industry Standard Compatible Stencil Opening
    6. 6.6 Package Option Addendum

Package Options

Mechanical Data (Package|Pins)
  • RRB|41
Thermal pad, mechanical data (Package|Pins)
Orderable Information

3 Description

The CSD95410NexFET™ power stage is a highly optimized design for use in a high-power, high-density synchronous buck converter. This product integrates the driver IC and power MOSFETs to complete the power stage switching function. This combination produces high-current, high-efficiency, and high-speed switching capability in a small 5-mm × 6-mm outline package. It also integrates the accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.

Device Information
DEVICE MEDIA QTY PACKAGE(1) SHIP
CSD95410 13-Inch Reel 2500 QFN
5.00-mm × 6.00-mm 		Tape and Reel
CSD95410T 7-Inch Reel 250
(1) For all available packages, see the orderable addendum at the end of the data sheet.

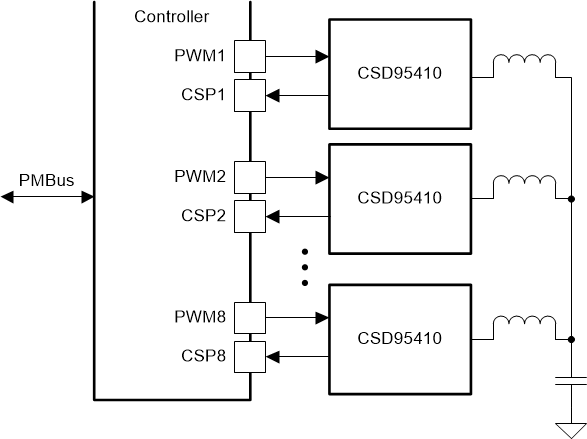

GUID-239D1BB4-C162-4B7C-8FC4-87CF3DB636BA-low.gif Simplified Application
