Pin Configuration and Functions

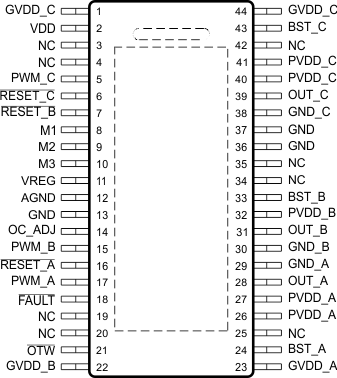

DRV8312: 44-pin TSSOP power pad down DDW package. This package contains a thermal pad that is located on the bottom side of the device for dissipating heat through PCB.
Figure 5-1 DV8312HTSSOP (DDW)(Top View)
DRV8332: 36-pin PSOP3 DKD package. This package contains a thick heat slug that is located on the top side of the device for dissipating heat through heatsink.
Figure 5-2 DRV8332HSSOP (DKD)(Top View)
Table 5-1 Pin Functions
PIN I/O TYPE (1) DESCRIPTION
NAME DRV8312 DRV8332
AGND 12 9 P Analog ground
BST_A 24 35 P High side bootstrap supply (BST), external capacitor to OUT_A required
BST_B 33 28 P High side bootstrap supply (BST), external capacitor to OUT_B required
BST_C 43 20 P High side bootstrap supply (BST), external capacitor to OUT_C required
GND 13, 36, 37 8 P Ground
GND_A 29 32 P Power ground for half-bridge A
GND_B 30 31 P Power ground for half-bridge B
GND_C 38 23 P Power ground for half-bridge C
GVDD_A 23 36 P Gate-drive voltage supply
GVDD_B 22 1 P Gate-drive voltage supply
GVDD_C 1, 44 18, 19 P Gate-drive voltage supply
M1 8 13 I Mode selection pin
M2 9 12 I Reserved mode selection pin. AGND connection is recommended
M3 10 11 I Reserved mode selection pin, VREG connection is recommended
NC 3, 4, 19, 20, 25, 34, 35, 42 26, 27 - No connection pin. Ground connection is recommended
OC_ADJ 14 7 O Analog overcurrent programming pin, requires resistor to AGND
OTW 21 2 O Overtemperature warning signal, open-drain, active-low. An internal pullup resistor to VREG (3.3 V) is provided on output. Level compliance for 5-V logic can be obtained by adding external pullup resistor to 5 V
OUT_A 28 33 O Output, half-bridge A
OUT_B 31 30 O Output, half-bridge B
OUT_C 39 22 O Output, half-bridge C
PVDD_A 26, 27 34 P Power supply input for half-bridge A requires close decoupling capacitor to ground.
PVDD_B 32 29 P Power supply input for half-bridge B requires close decoupling capacitor to gound.
PVDD_C 40, 41 21 P Power supply input for half-bridge C requires close decoupling capacitor to ground.
PWM_A 17 4 I Input signal for half-bridge A
PWM_B 15 6 I Input signal for half-bridge B
PWM_C 5 16 I Input signal for half-bridge C
RESET_A 16 5 I Reset signal for half-bridge A, active-low
RESET_B 7 14 I Reset signal for half-bridge B, active-low
RESET_C 6 15 I Reset signal for half-bridge C, active-low
FAULT 18 3 O Fault signal, open-drain, active-low. An internal pullup resistor to VREG (3.3 V) is provided on output. Level compliance for 5-V logic can be obtained by adding external pullup resistor to 5 V
VDD 2 17 P Power supply for digital voltage regulator requires capacitor to ground for decoupling.
VREG 11 10 P Digital regulator supply filter pin requires 0.1-μF capacitor to AGND.
THERMAL PAD -- N/A T Solder the exposed thermal pad at the bottom of the DRV8312DDW package to the landing pad on the PCB. Connect the landing pad through vias to large ground plate for better thermal dissipation.
HEAT SLUG N/A -- T Mount heatsink with thermal interface to the heat slug on the top of the DRV8332DKD package to improve thermal dissipation.
I = input, O = output, P = power, T = thermal
Mode Selection Pins
MODE PINS DESCRIPTION
M3 M2 M1
1 0 0 Three-phase or three half bridges with cycle-by-cycle current limit
1 0 1 Three-phase or three half bridges with OC latching shutdown (no cycle-by-cycle current limit)
0 x x Reserved
