9.2.2 Alternative Application

In this application, the DRV8353F is configured to use one sense amplifier in unidirectional mode for a summing current sense scheme often used in trapezoidal or hall-based BLDC commutation control. Additionally, the device is configured in dual supply mode using an external buck regulator for the VM gate drive voltage supply to decrease internal power dissipation.

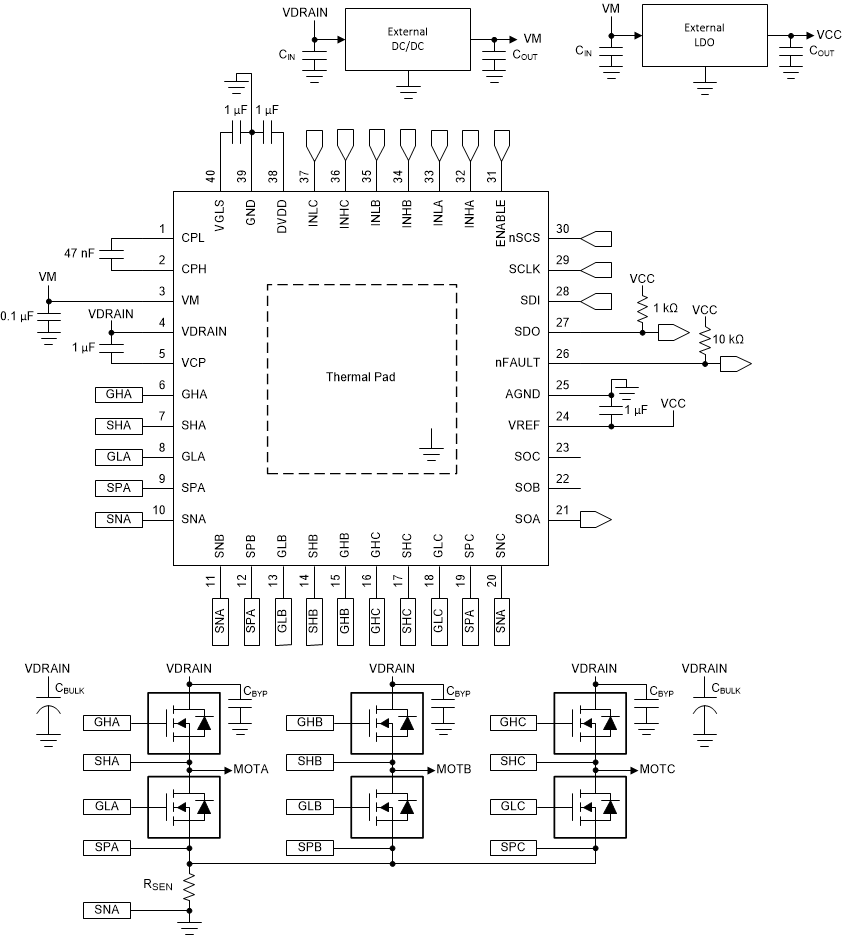

GUID-703BA4B5-E8D7-447B-A8B0-200EA4090087-low.gifFigure 9-11 Alternative Application Schematic
