5.8 Typical Characteristics

at TA = 25 °C, VVS = 3.3 V, VCM = 48 V, VSENSE = 0, and VVBUS = 48 V (unless otherwise noted)

INA238 Shunt Input Offset Voltage Production Distribution
VCM = 48 V
Figure 5-2 Shunt Input Offset Voltage Production Distribution
INA238 Shunt Input Offset Voltage vs Temperature
Figure 5-4 Shunt Input Offset Voltage vs Temperature
INA238 Shunt Input Common-Mode Rejection Ratio vs Temperature
Figure 5-6 Shunt Input Common-Mode Rejection Ratio vs Temperature
INA238 Shunt Input Gain Error vs Temperature
VCM = 24 V
Figure 5-8 Shunt Input Gain Error vs Temperature
INA238 Bus Input Offset Voltage Production Distribution
VVBUS = 20 mV
Figure 5-10 Bus Input Offset Voltage Production Distribution
INA238 Bus Input Gain Error Production Distribution
Figure 5-12 Bus Input Gain Error Production Distribution
INA238 Input Bias Current vs Differential Input Voltage
Figure 5-14 Input Bias Current vs Differential Input Voltage
INA238 Input Bias Current vs Temperature
Figure 5-16 Input Bias Current vs Temperature
INA238 Active IQ vs Temperature
Figure 5-18 Active IQ vs Temperature
INA238 Shutdown IQ vs Supply Voltage
Figure 5-20 Shutdown IQ vs Supply Voltage
INA238 Active IQ vs Clock Frequency
Figure 5-22 Active IQ vs Clock Frequency
INA238 Internal Clock Frequency vs Power Supply
Figure 5-24 Internal Clock Frequency vs Power Supply
INA238 Shunt Input Offset Voltage Production Distribution
VCM = 0 V
Figure 5-3 Shunt Input Offset Voltage Production Distribution
INA238 Common-Mode Rejection Ratio Production Distribution
Figure 5-5 Common-Mode Rejection Ratio Production Distribution
INA238 Shunt Input Gain Error Production Distribution
VCM = 24 V
Figure 5-7 Shunt Input Gain Error Production Distribution
INA238 Shunt Input Gain Error vs Common-Mode Voltage
Figure 5-9 Shunt Input Gain Error vs Common-Mode Voltage
INA238 Bus Input Offset Voltage vs Temperature
VVBUS = 20 mV
Figure 5-11 Bus Input Offset Voltage vs Temperature
INA238 Bus Input Gain Error vs Temperature
Figure 5-13 Bus Input Gain Error vs Temperature
INA238 Input Bias Current (IB+ or IB–) vs Common-Mode Voltage
Figure 5-15 Input Bias Current (IB+ or IB–) vs Common-Mode Voltage
INA238 Input Bias Current vs Temperature, Shutdown
Figure 5-17 Input Bias Current vs Temperature, Shutdown
INA238 Active IQ vs Supply Voltage
Figure 5-19 Active IQ vs Supply Voltage
INA238 Shutdown IQ vs Temperature
Figure 5-21 Shutdown IQ vs Temperature

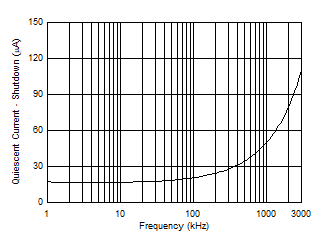

INA238 Shutdown IQ vs Clock Frequency
Figure 5-23 Shutdown IQ vs Clock Frequency
INA238 Internal Clock Frequency vs Temperature
Figure 5-25 Internal Clock Frequency vs Temperature
