6.6 Typical Characteristics
At TA = 25°C, V+ = 5 V, V+IN = 12 V, VREF1 = VREF2 = 2.048 V referenced to GND, and VSENSE = V+IN – V–IN, unless otherwise noted.
Figure 6-1 Gain vs Frequency

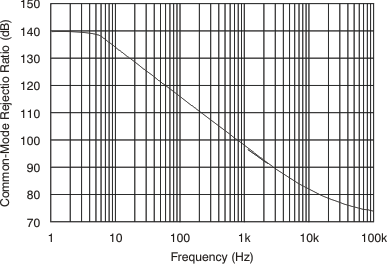

Figure 6-3 INA284-Q1 Common-Mode Rejection Ratio (RTI)
Figure 6-5 INA286-Q1 Output Impedance vs Frequency

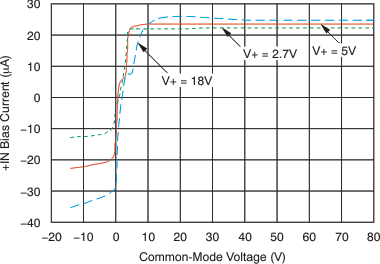

Figure 6-7 INA283-Q1 +IN BIAS Current vs Common-Mode Voltage
Figure 6-9 Quiescent Current vs Supply Voltage

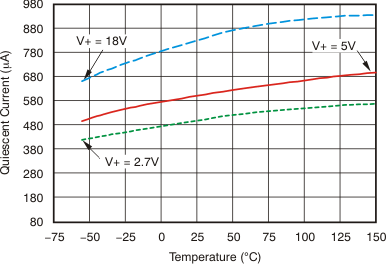

Figure 6-11 Quiescent Current vs Temperature
Figure 6-13 +IN
BIAS Current vs Temperature

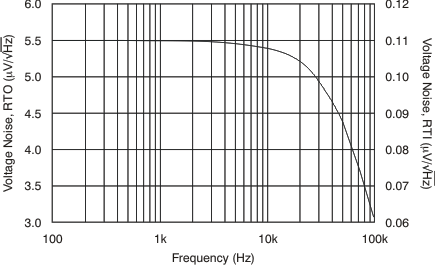

Figure 6-15 INA282-Q1 Voltage Noise vs Frequency
Figure 6-17 INA283-Q1 Swing to Rail vs Output Current
Figure 6-19 Start-Up Transient Response

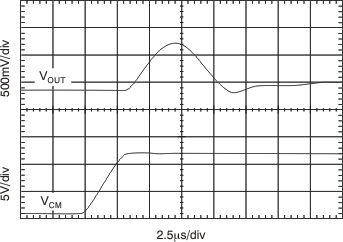

Figure 6-21 12-V
Common-Mode Step Response

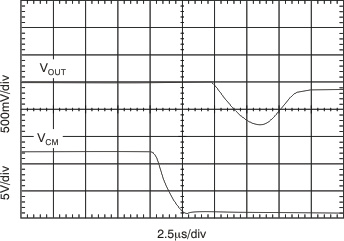

Figure 6-23 12-V
Common-Mode Step Response

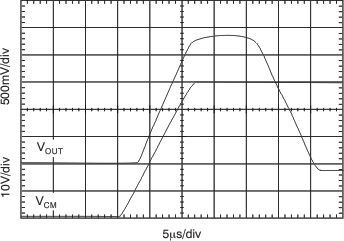

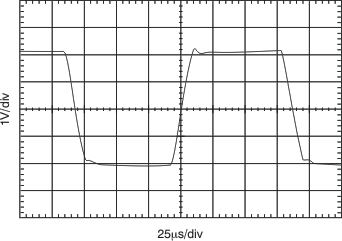

Figure 6-25 50-V
Common-Mode Step Response

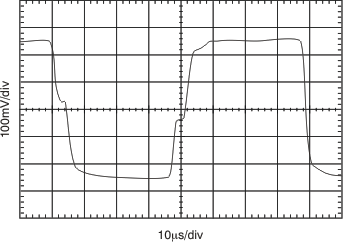

Figure 6-27 100-mV Step Response

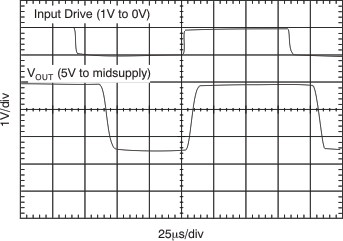

Figure 6-29 4-V
Step Response
Figure 6-31 Input
Overload
Figure 6-2 INA282-Q1 PSRR (RTI) vs Frequency
Figure 6-4 INA282-Q1 Common-Mode Slew Rate Induced Offset

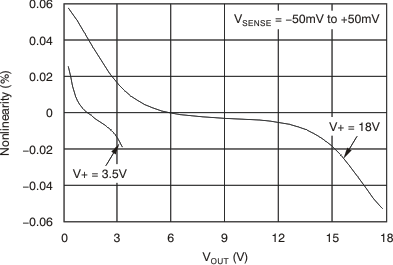

Figure 6-6 INA282-Q1 Typical Nonlinearity vs Output Voltage

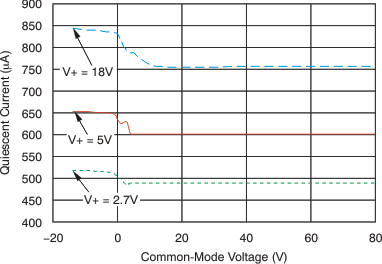

Figure 6-8 INA283-Q1 Quiescent Current vs Common-Mode Voltage
Figure 6-10 Common-Mode Rejection Ratio vs Temperature

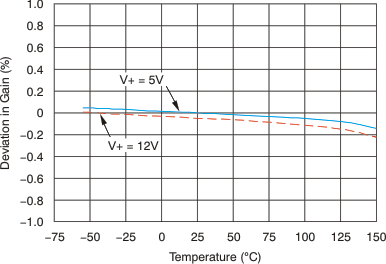

Figure 6-12 Deviation in Gain vs Temperature

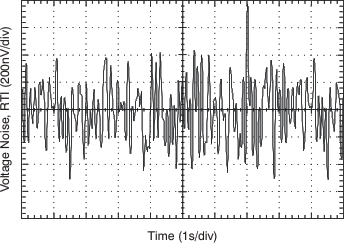

Figure 6-14 INA282-Q1 0.1-Hz to 10-Hz Voltage Noise, RTI
Figure 6-16 INA284-Q1 Output Voltage Swing vs Output Current
Figure 6-18 INA283-Q1 Swing to Ground vs Output Current
Figure 6-20 Start-Up Transient Response

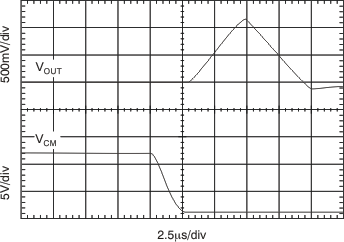

Figure 6-22 12-V
Common-Mode Step Response
Figure 6-24 12-V
Common-Mode Step Response
Figure 6-26 50-V
Common-Mode Step Response
Figure 6-28 500-mV Step Response
Figure 6-30 17-V
Step Response
