6.18 Insulation Characteristics Curves

ISO7720 ISO7721 Thermal Derating Curve for Limiting Current per VDE for DW-16 PackageFigure 6-1 Thermal Derating Curve for Limiting Current per VDE for DW-16 Package

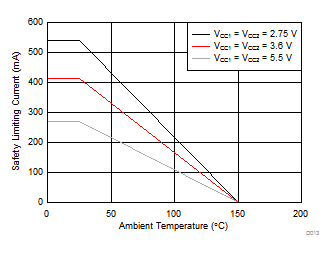

ISO7720 ISO7721 Thermal Derating Curve for Limiting Current per VDE for DWV-8 PackageFigure 6-3 Thermal Derating Curve for Limiting Current per VDE for DWV-8 Package

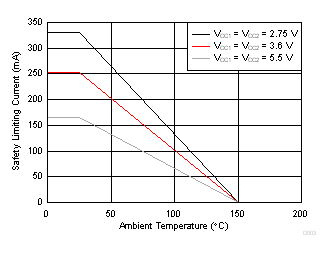

ISO7720 ISO7721 Thermal Derating Curve for Limiting Current per VDE for D-8 PackageFigure 6-5 Thermal Derating Curve for Limiting Current per VDE for D-8 Package

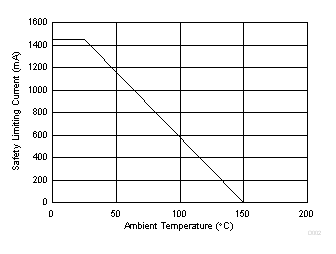

ISO7720 ISO7721 Thermal Derating Curve for Limiting Power per VDE for DW-16 PackageFigure 6-2 Thermal Derating Curve for Limiting Power per VDE for DW-16 Package
ISO7720 ISO7721 Thermal Derating Curve for Limiting Power per VDE for DWV-8 PackageFigure 6-4 Thermal Derating Curve for Limiting Power per VDE for DWV-8 Package

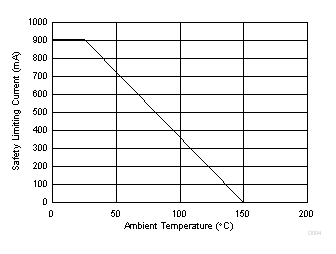

ISO7720 ISO7721 Thermal Derating Curve for Limiting Power per VDE for D-8 PackageFigure 6-6 Thermal Derating Curve for Limiting Power per VDE for D-8 Package
