6.6 Switching Characteristics

VDD = VHB = VEN = 12 V, VHS = VSS = 0 V, No load on LO or HO, TA = 25°C, (unless otherwise noted)
PARAMETERTEST CONDITIONSMINTYPMAXUNIT
PROPAGATION DELAYS
tDLFFVLI falling to VLO fallingSee Figure 6-120ns
tDHFFVHI falling to VHO fallingSee Figure 6-120ns
tDLRRVLI rising to VLO risingSee Figure 6-120ns
tDHRRVHI rising to VHO risingSee Figure 6-120ns
DELAY MATCHING
tMONFrom LO being ON to HO being OFFSee Figure 6-115ns
tMOFFFrom LO being OFF to HO being ONSee Figure 6-115ns
OUTPUT RISE AND FALL TIME
tRLO, HO rise timeCLOAD = 1000 pF11ns
tFLO, HO fall timeCLOAD = 1000 pF8ns
MISCELLANEOUS
TPW,minMinimum input pulse width that changes the output40ns
Bootstrap diode turnoff timeIF = 20 mA, IREV = 0.5 A20ns

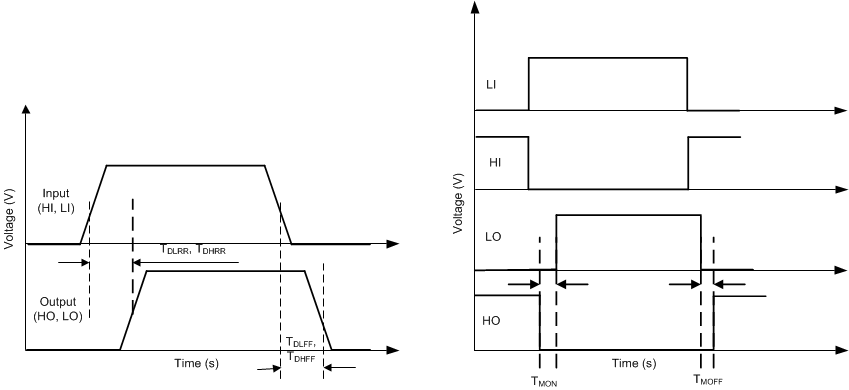

GUID-7404CD8C-07CC-4D1E-A6AF-8581D4521699-low.gifFigure 6-1 Timing Diagram
