10.2.3 Application Curves

Unless otherwise specified, the following conditions apply: VIN = 13.5 V, TA = 25°C. The circuit is shown in Figure 10-1, with the appropriate BOM from Table 10-5.
Unless otherwise specified, the following conditions apply: VIN = 13.5 V, TA = 25°C. The circuit is shown in Figure 10-1, with the appropriate BOM from Table 10-5.GUID-F2025131-EB07-49A0-8C06-779F76BA2A15-low.gif
VOUT = 3.3 V FSW = 2100 kHz Auto mode
Figure 10-5 LM62440-Q1 Efficiency. Unless otherwise specified, the following conditions apply: VIN = 13.5 V, TA = 25°C. The circuit is shown in Figure 10-1, with the appropriate BOM from Table 10-5.
VOUT = 5 V FSW = 2100 kHz Auto mode
Figure 10-7 LM62440-Q1 Efficiency

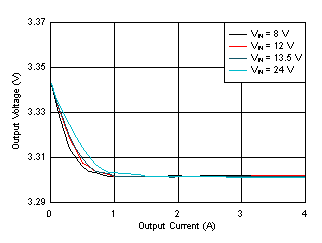

VOUT = 3.3 V FSW = 2100 kHz Auto Mode
Figure 10-9 LM62440-Q1 Load and Line Regulation
VOUT = 5V FSW = 2100 kHz Auto Mode
Figure 10-11 LM62440-Q1 Load and Line Regulation
VOUT = 3.3 V FSW = 2100 kHz Auto mode
Figure 10-13 LM62440-Q1 Dropout Curve

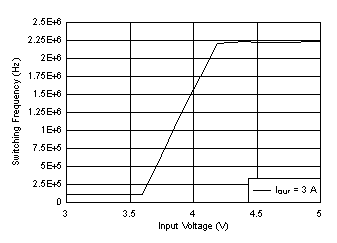

VOUT = 3.3 V FSW = 2100 kHz Auto mode
Figure 10-15 LM62440-Q1 Frequency Dropout Curve
VOUT = 5 V FSW = 2100 kHz Auto mode
IOUT = 100 mA VIN = 13.5 V
Figure 10-17 LM62440-Q1 Switching Waveform and VOUT Ripple
VOUT = 3.3 V FSW = 2100 kHz FPWM mode
IOUT = 3.25 A VIN = 13.5 V

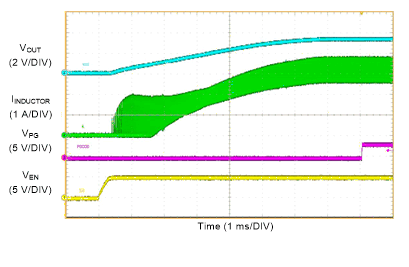

Figure 10-19 LM62440-Q1 Start-up with 3.25-A

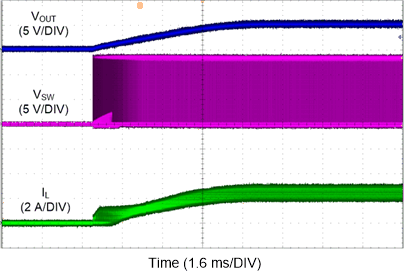

VOUT = 5 V FSW = 2100 kHz FPWM mode
IOUT = Short Circuit to 2.5 A VIN = 13.5 V
Figure 10-21 LM62440-Q1 Short Circuit Recovery
VOUT = 3.3 V FSW = 400 kHz Auto mode
IOUT = 2 A to 4 A to 2 A VIN = 13.5 V TR = TF = 2µs
Figure 10-23 LM62440-Q1 Load Transient
VOUT = 5 V FSW = 2100 kHz Auto mode
IOUT = 2 A to 4 A to 2 A VIN = 13.5 V TR = TF = 2µs
Figure 10-25 LM62440-Q1 Load Transient
VOUT = 5 V FSW = 400 kHz IOUT = 5 A
Frequency Tested: 30 MHz to 108 MHz
Figure 10-27 Conducted EMI versus CISPR25 Limits (Yellow: Peak Signal, Blue: Average Signal), LM61460EVM
VOUT = 5 V FSW = 400 kHz IOUT = 5 A
Frequency Tested: 30 MHz to 300 MHz
Figure 10-29 Radiated EMI Bicon Vertical versus CISPR25 Limits, LM61460EVM
VOUT = 5 V FSW = 400 kHz IOUT = 5 A
Frequency Tested: 300 MHz to 1 GHz

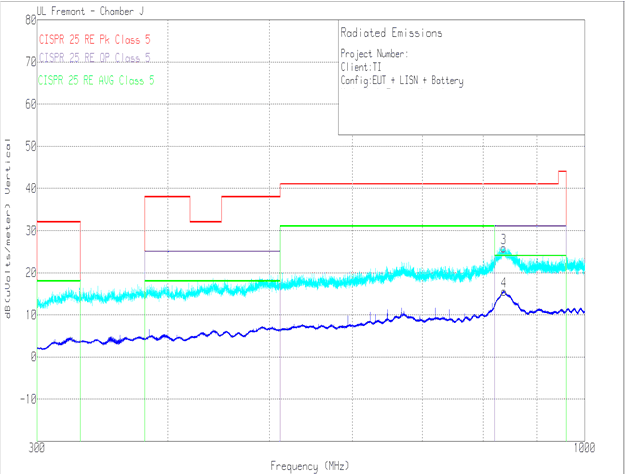

Figure 10-31 Radiated EMI Log Vertical versus CISPR25 Limits, LM61460EVM


FSW = 400 kHz Note: Measurements taken with LM61460EVM with 6 A variant
Figure 10-33 Recommended Input EMI Filter
FSW = 2100 kHz VOUT = 5 V IOUT = 5 A
Frequency Tested: 30 MHz to 108 MHz
Figure 10-35 Conducted EMI versus CISPR25 Limits (Yellow: Peak Signal, Blue: Average Signal), LM61460EVM
VOUT = 3.3 V FSW = 2100 kHz FPWM mode
Figure 10-6 LM62440-Q1 Efficiency
VOUT = 5 V FSW = 2100 kHz FPWM mode
Figure 10-8 LM62440-Q1 Efficiency

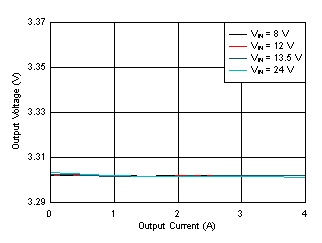

VOUT = 3.3 V FSW = 2100 kHz FPWM mode
Figure 10-10 LM62440-Q1 Load and Line Regulation

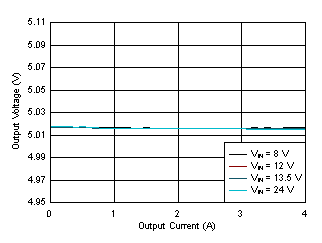

VOUT = 5V FSW = 2100 kHz FPWM mode
Figure 10-12 LM62440-Q1 Load and Line Regulation
VOUT = 5 V FSW = 2100 kHz Auto mode
Figure 10-14 LM62440-Q1 Dropout Curve

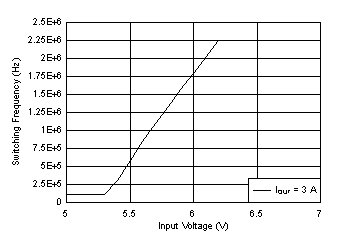

VOUT = 5 V FSW = 2100 kHz Auto mode
Figure 10-16 LM62440-Q1 Frequency Dropout Curve
VOUT = 5 V FSW = 2100 kHz Auto mode
IOUT = 4 A VIN = 13.5 V
Figure 10-18 LM62440-Q1 Switching Waveform and VOUT Ripple
VOUT = 5 V FSW = 2100 kHz FPWM mode
IOUT = 2.5 A to Short Circuit VIN = 13.5 V
Figure 10-20 LM62440-Q1 Short Circuit Protection
VOUT = 5 V FSW = 2100 kHz FPWM mode
IOUT = Short Circuit VIN = 13.5 V
Figure 10-22 LM62440-Q1 Short Circuit Performance
VOUT = 3.3 V FSW = 2100 kHz Auto mode
IOUT = 2 A to 4 A to 2 A VIN = 13.5 V TR = TF = 2µs
Figure 10-24 LM62440-Q1 Load Transient
VOUT = 5 V FSW = 400 kHz IOUT = 5 A*
Frequency Tested: 150 kHz to 30 MHz
*Tested on 6 A Variant
Figure 10-26 Conducted EMI versus CISPR25 Limits (Yellow: Peak Signal, Blue: Average Signal), LM61460EVM
VOUT = 5 V FSW = 400 kHz IOUT = 5 A
Frequency Tested: 150 kHz to 30 MHz
Figure 10-28 Radiated EMI Rod versus CISPR25 Limits, LM61460EVM
VOUT = 5 V FSW = 400 kHz IOUT = 5 A
Frequency Tested: 30 MHz to 300 MHz
Figure 10-30 Radiated EMI Bicon Horizontal versus CISPR25 Limits, LM61460EVM

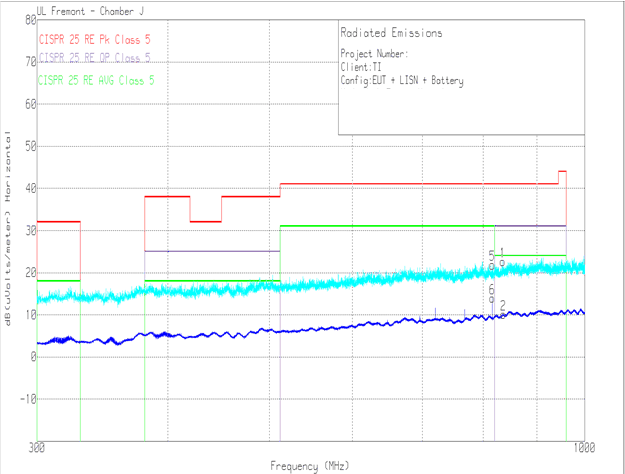

VOUT = 5 V FSW = 400 kHz IOUT = 5 A
Frequency Tested: 300 MHz to 1 GHz
Figure 10-32 Radiated EMI Log Horizontal versus CISPR25 Limits, LM61460EVM

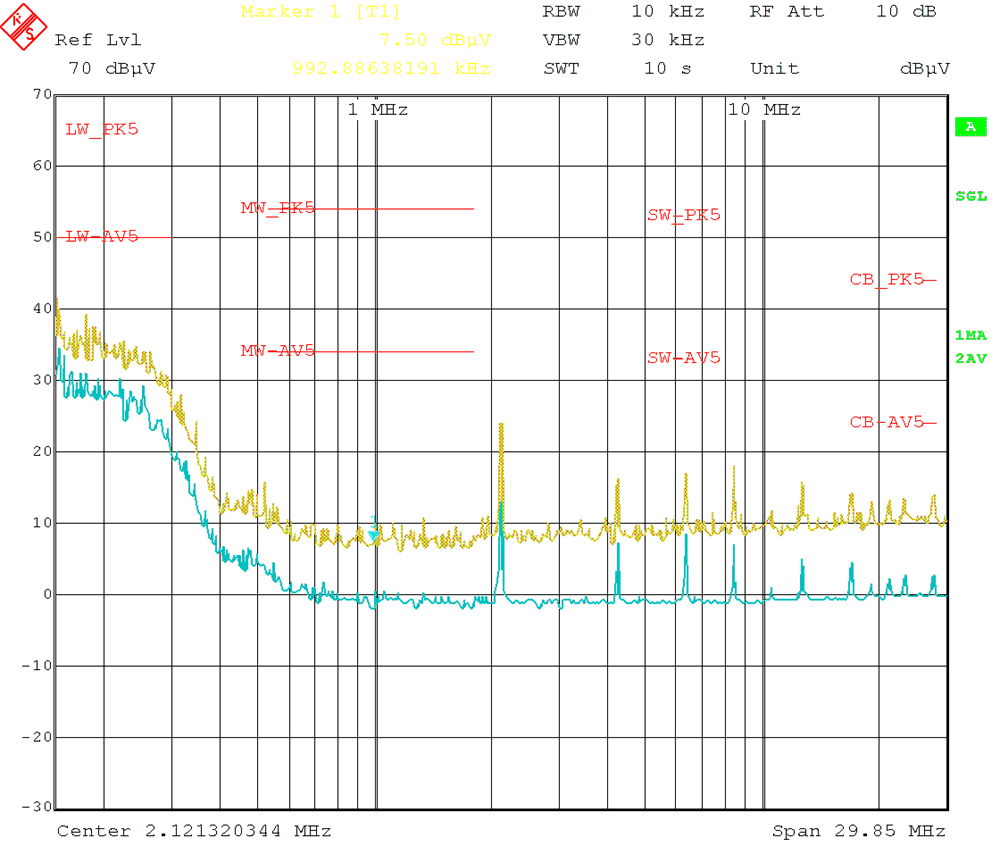

FSW = 2100 kHz VOUT = 5 V IOUT = 5 A*
Frequency Tested: 150 kHz to 30 MHz
*Tested on 6 A Variant
Figure 10-34 Conducted EMI versus CISPR25 Limits (Yellow: Peak Signal, Blue: Average Signal), LM61460EVM




Note: All EMI measurements taken with 6-A Variant
FSW = 2100 kHz

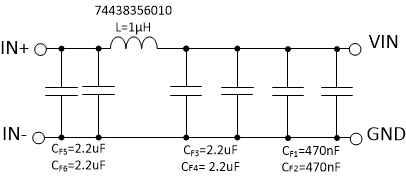

Figure 10-36 Recommended Input EMI Filter, LM61460EVM
Table 10-5 BOM for Typical Application Curves
VOUT Frequency RFBB RT COUT CIN + CHF L CFF
3.3 V 2100 kHz 43.2 kΩ 6.04 kΩ 3 × 22 µF 2 × 4.7 µF + 2 × 100 nF 1.5 µH (MAPI 4020HT) 22 pF
5 V 2100 kHz 24.9 kΩ 6.04 kΩ 2 × 22 µF 2 × 4.7 µF + 2 × 100 nF 1.5 µH (MAPI 4020HT) 22 pF
